POL-22001-1F-R-M20B-S-MT ICAO A & B 32cd

RED Single Obstruction Light 96-250vAC

Varenr:
POL220011FRM20BSMT
POL220011FRM20BSMT Point Lighting Corporation  POL-22001-1F-R-M20B-S-MT ICAO A & B 32cd RED Single Obstruction Light 96-250vAC
POL220011FRM20BSMT Point Lighting Corporation  POL-22001-1F-R-M20B-S-MT ICAO A & B 32cd RED Single Obstruction Light 96-250vAC
Lenker: | DataSheet | Mountings

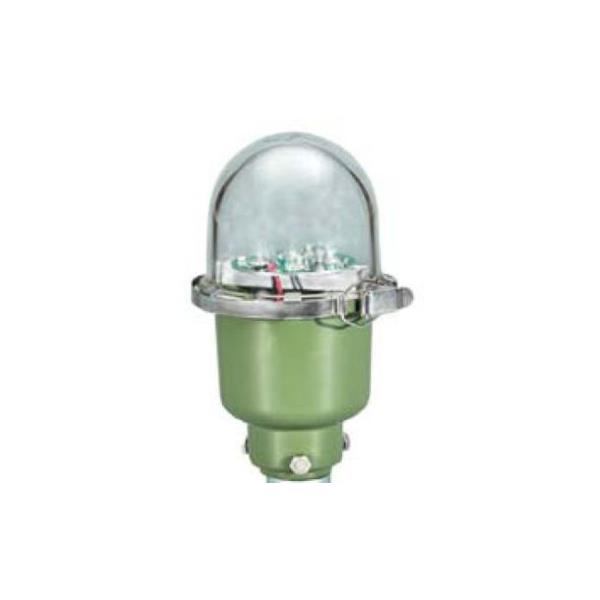

POL-22001-1F-R-M20B-S-MT



RED Single Obstruction Light 96-250vAC
ICAO Type A & B 32cd



POINT OBSTRUCTION LIGHTS
POL LED TOWER SERIES



Compliances:
ETL Listed to UL 1598A Marine Vessels at -40°C to +55°C
ETL Listed to CSA C22.2 No. 137-Ml 981 & No. 250.0-08 Canada
ETL Listed to UL 1598 at -40°C to +55°C
ETL Verified FAA L-81 0 to FAA AC 150/5345-43G at -55°C to +55°C
Compliance to ICAO Annex 14 Low Intensity Types A & B
Registered ISO 9001: 2008



The POL TOWER series of red LED aviation obstruction lights presents high grade technical features in an economical FAA approved obstruction light. POL steady-burning obstruction lights are used to mark tall structures that present hazards to air navigation. Use with an FAA photoelectric controller. The POL light heads are permanently sealed and not monitored.

The peak beam of the POL-22001 is 53 candelas in red. The POL-22001 does not exceed 2.0 watts per head.



The fixture is treated for marine conditions by cleaning per US Department of Defense TT-C-490 method III, pretreated with chrome-free aluminum conversion coating per US MIL-C-5541 type II, epoxy powder base coat primer and glossy polyester powder coat finish in color RAL 6003 (FED-STD-595 color #14097) dark green.
Powder coating per US Department of Defense MIL-PRF-24712A type VI and oven cured.



Weight:  1,6 kg (3.5 lbs)

Power (per head):
120V: 1,9 watt 5,0 VA
220V: 2.0 watt 5,4 VA



Important Note: No alarm monitoring possible; no alarm line; no transfer.
