Exia Led Safety Torch Adalit L.3000

IP67 Zone 0/20 Rechargeable model

Varenr:
L3000
L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model
L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model
L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model
L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model L3000 Adalit L.3000 Exia Led Safety Torch Adalit L.3000 IP67 Zone 0/20 Rechargeable model
Lenker: | ATEX | DataSheet | Manual

Adalit L.3000 - Rechargeable Safety Torch for Ex Zone 0 / 20
with Swivelling Head and Digital Display




Features:

  • 2 LEDs of 135 lumens each in a double optic with different light beams (spot and flood)
  • LedEngine technology with step light system
  • Booster function to illuminate long distances with greater penetrating light beam
  • Two button switches of soft touch material, ergonomic and oversized in order to guarantee easy pushing
  • 3 different burning intensities in order to select in every moment the remaining burning time
  • Battery level indication in hours and minutes by means of a digital display

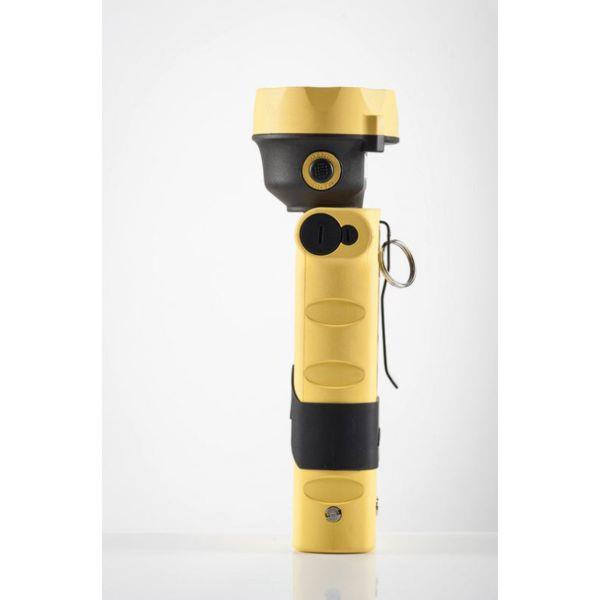

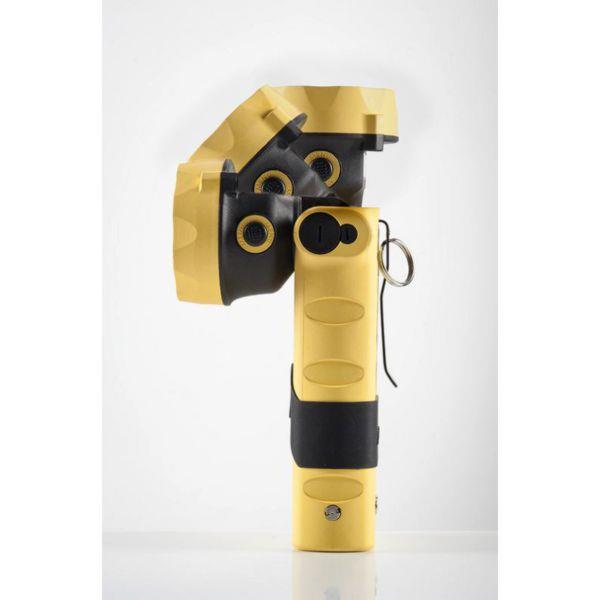

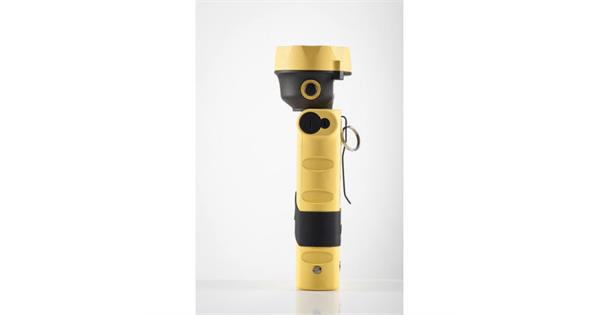

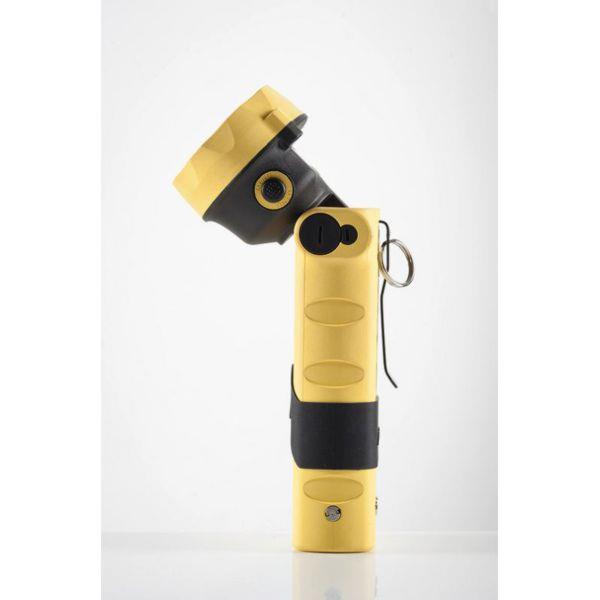

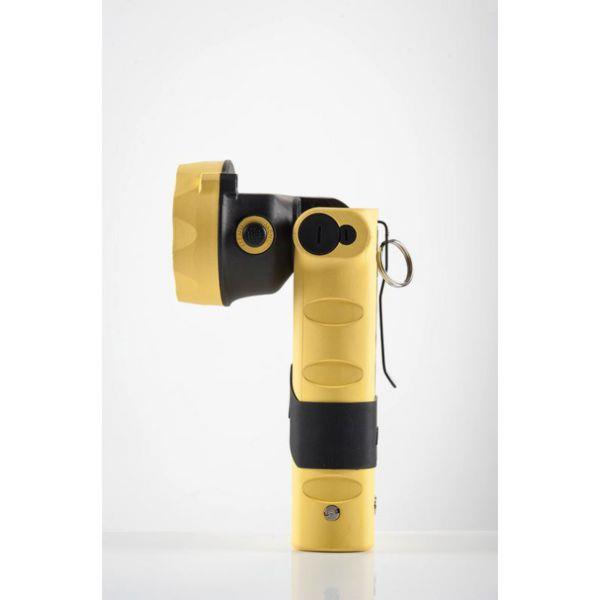

  • Swivelling head with 3 positions 0º | 45º | 90º
  • Easy maintenance
  • Stroboscopic function
  • Red or yellow cone for signalling available
  • Straight or right angle
  • Chargers for 1, 2, 3 or 5 torches available



Adalit L-3000 torch is a high performance professional safety torch that combines high intensity LEDs, a revolutionary optic, a large digital display and an elegant design.


ATEX:
II 1G Ex ia IIC T4 Ga
II 1D Ex ia IIIC T85ºC Da
GAS ZONE 0 | 1 | 2
DUST ZONE 20 | 21 | 22




Ingress protection:IP67
Weight:500 gr. (included battery)
Measures:Straight: 22,5 cm x 7 cm. Ø
Right angle: 18,5 cm x 7 cm. Ø
Burning time: 4 h at high intensity
6 h at medium intensity
8 h at low intensity
Torch body material:Thermoplastic resin with high resistance to impacts,
extreme temperatures and corrosive substances
Light source:2 high intensity LEDs with 135 lm. each
Battery:Rechargeable Li-ion battery 3,7 V (IL3R)
Low Battery
Warning:Blinking signal of the main LED 15 min. before
running out of battery
On/Off switch:Push button switch of soft touch material, placed on
the side to guarantee easy finding and pushing with
gloves



Battery Level Indication:

The battery level indicator shows the remaining burning time in hours and minutes .


Automatic Power:


The Adalit IL-3000 torch integrates an automatic power device that helps localizing it when charging.
When a power failure to the charger occurs or the torch is taken from the charger, the torch switches on automatically remaining in this state up to 4 hours.




Main Features:

  • 2 LEDs of 135 lumens each in a double optic with different light beams.
  • LedEngine technology with a step light system.
  • Only focused light on, “Booster” function to illuminate long distances with greater penetrating light beam.
  • Two button switches of soft touch material, ergonomic and oversized in order to guarantee easy pushing.
  • 3 different burning intensities in order to select in every moment the remaining burning time.
  • Battery level indication in hours and minutes by means of a digital display.
  • Swivelling head with 3 positions: 0º | 45º | 90º
  • Torch body made of high resistance thermoplastic resin to the impacts, extreme temperatures and corrosion.
  • Best ATEX certificate acc. to zone 0.



First Steps:


Before using the torch for the first time, it is highly recommended to charge the battery completely.

NB! In order to get the maximum perfomance and life span of the battery, a complete discharge/charge cycle should be done at least once per month.

The user can activate:

  • The two LEDs at the same time - all the power is shared between the two light beams that enables wide and spot light simultaneously.
  • Only FLOOD light on - the outspread light gives the user ample light for short distances. This optic includes the unique “step lighting system” to light the ground area just ahead user’s feet.
  • Only FOCUSED light on - “BOOSTER” function to illuminate long distances with a greater penetrating light beam.
  • Only FOCUSED light on in strobe mode. Up to five different intermittences can be activated.





On / Off Button:

First push:

The two LEDs on at the same time which enables wide and spot light simultaneously.
At the same time, the display turns on indicating the remaining burning time.



Second push:

Only the LED situated on the flood optic is on and the light gets a greater opening angle.
Thanks to the special design of the Led Engine Technology the walking area near to the person carrying the torch gets illuminated.



BOOSTER function:

PUSH & HOLD the On/Off button for two seconds, the LED on the focused optic turns on. All power is gathered in one single LED and the light beam reaches the maximum distance and penetration.
To return to the previous position, push the On/Off button again.

STROBE function:

Five different strobe modes can be choosen.
Push & hold On/Off button for four seconds, the LED situated on the focused optic gets on in strobe mode.
Pressing the Menu button up to five times you can select the desired frequency.
The selected strobe frequency will be stored.
To return to the previous position, push the On/Off button again

Push the On/Off button once again, and the torch and the display will switch OFF.

Menu Button:

Pressing the button “MENU” for 4 seconds with the torch on, the “Burning Time System” gets activated.
This allows the user to choose the desired burning time and the light intensity.
Meanwhile the display flashes the user by pressing the “menu” button can choose between the three different burning times, 4, 6 and 8 at full charge, adjusting the light intensity level automatically.
Once the user has chosen the desired burning time, the display will be flashing after 5 seconds.


Other Functions:

Clip (included) for the jacket or belt:


Magnet with high pull strength (optional accessories):





Chargers:(Accessorie)











Marking:CE e9

Ingress Protection:IP54

Disconnection at the
end of the charge:Automatic

Feeding Source:DC: 12 V. | AC: 100/240V. 50/60 Hz

Types and dimensions:Single: 75x105x60 mm
For 3 torches: 205x105x60 mm
For 5 torches: 405x105x60 mm
