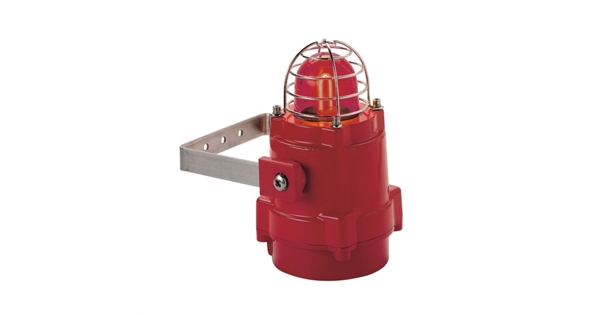

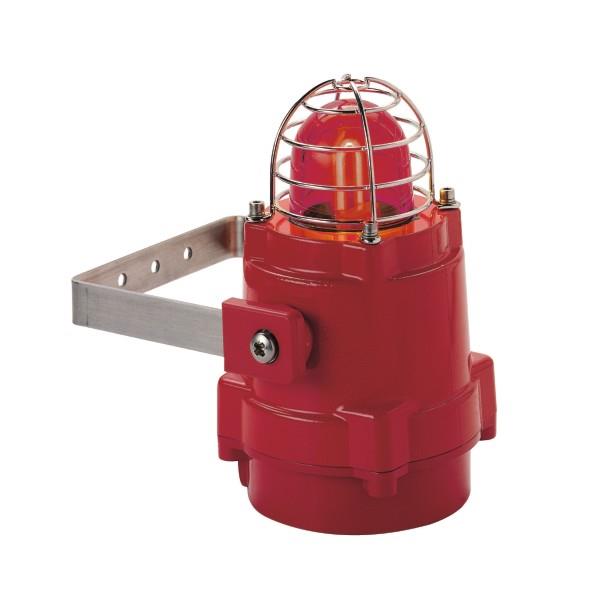

BExBG10  Xenon Beacon

The flameproof BExBG10 xenon beacons are suitable for Zone 1, 2, 21
& 22 applications.

The BExBG10 10 Joule beacons are ideal for general signalling duties whilst their robust construction makes installation
in the harshest of environments possible. Additional features include automatic synchronisation on multi-beacon systems
and stainless steel guard and mounting bracket as standard.

The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminiumwhich is
phosphated and powder coated. All models have two M20 cable entries, large termination areas containing in & out
terminals (Ex de version only) and an ingress protection of IP66/ 67 (Ex d) and IP66 (Ex de).





Features:

• Automatic synchronisation on multi-beacon system.
• Beacons can be set to ‘flip-flop’ alternating mode with
   other units on multi-beacon systems.
• Xenon tubes mechanically secured against shock
  & vibration
• Glass lens & Stainless Steel guard
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.
• IN & OUT terminals (Ex de version only).





Approvals:

• ATEX certificate: KEMA 00ATEX2006,
   EN 60079-0 : 2006, EN 60079-1 : 2007,
   EN 60079-7 : 2003, EN 61241-0 : 2006,
   EN 61241-1 : 2004
• IECEx certificate: IECEx KEM 10.0002,
   IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6), IEC 60079-7 : 2001 (Ed3), IEC 61241-0 : 2004 (Ed1),

   IEC 61241-1 : 2004 (Ed1)
• GOST-R certificate: POCC GB.JB05.B02205
• Inmetro certificate: 10-IEx-0010





Part codes & Classification:

BExBG10D** ATEX /  IECEx:
II 2G Ex d IIC T4 Ta. -50°C to +70°C II 2G Ex d IIC T5 Ta. -50°C to +40°C II 2D Ex tD A21 IP67 T125°C
based on max. Ta. 70°C
1ExdIICT4  Ta. -50° to +55°C
DIP A21 Ta T4

** = Voltage & lens colour reference:

Voltage options: 12DC, 24DC, 48DC, 115AC, 230AC

Lens colour options:
-AM (Amber)
-BL (Blue)
-CL (Clear)
-GN (Green)
-RD (Red)
-YW (Yellow)
