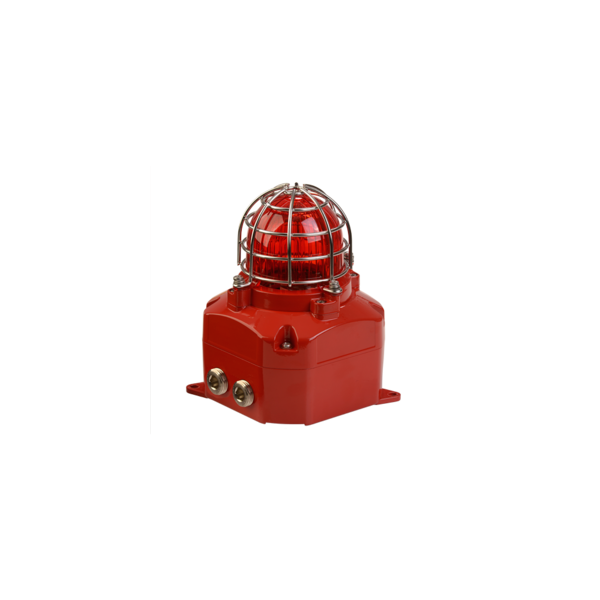

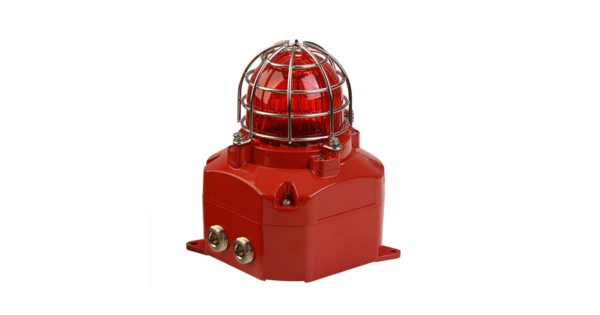

Ex-z2 Beacon D2xB1X10 DC024 MN1A1R/GREEN

10J IP66 Zone 2 & 22, Globally certified

Varenr:
D2xB1X10DC024MN1A1RG
D2xB1X10DC024MN1A1RG E2S D2xB1X10DC024MN1A1RG Ex-z2 Beacon D2xB1X10 DC024 MN1A1R/GREEN 10J IP66 Zone 2 & 22, Globally certified
D2xB1X10DC024MN1A1RG E2S D2xB1X10DC024MN1A1RG Ex-z2 Beacon D2xB1X10 DC024 MN1A1R/GREEN 10J IP66 Zone 2 & 22, Globally certified D2xB1X10DC024MN1A1RG E2S D2xB1X10DC024MN1A1RG Ex-z2 Beacon D2xB1X10 DC024 MN1A1R/GREEN 10J IP66 Zone 2 & 22, Globally certified
D2xB1X10DC024MN1A1RG E2S D2xB1X10DC024MN1A1RG Ex-z2 Beacon D2xB1X10 DC024 MN1A1R/GREEN 10J IP66 Zone 2 & 22, Globally certified
D2xB1X10DC024MN1A1RG E2S D2xB1X10DC024MN1A1RG Ex-z2 Beacon D2xB1X10 DC024 MN1A1R/GREEN 10J IP66 Zone 2 & 22, Globally certified D2xB1X10DC024MN1A1RG E2S D2xB1X10DC024MN1A1RG Ex-z2 Beacon D2xB1X10 DC024 MN1A1R/GREEN 10J IP66 Zone 2 & 22, Globally certified
Lenker: | ATEX | DoC | Datasheet | IECEx | UL | Manual | GA

D2xB1X10 Haz Loc UL1971 Xenon Strobe - Synchronized


The D2xB1XH1 features a high output UL1971 rated 18.18cd, 10 Joule Xenon strobe beacon. Low current consumption and in rush in a robust marine grade aluminum Type 4/4X, IP66 enclosure ensure the D2xB1X10 is suitable for the harshest of haz loc environments. Multiple D2xB1X10 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules in the circuit.

One device, globally certified: NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2; ATEX, IECEx Zone 2 & 22. UL1638/UL1971 tested - suitable for public mode fire alarm, ADA compliant, hearing impaired applications.


Features:

• 18.18 eff. candela - UL1971 Public mode fire
• Xenon tube mechanically secured against vibration & shock
• User replaceable Xenon tube assembly
• Duplicate cable terminations (in & out for daisy-chain installations)
• Large termination area
• Marine grade aluminum enclosure
• Ingress protection Type 4/4X/3R/13, IP66
• High impact resistant Borosilicate glass lens
• Stainless steel lens guard as standard
• Stainless steel external and internal fixings
• Duplicate, pluggable cable terminations
• Conduit mounting via integral 3/4" NPT entry
• Surface mounting via user installed lugs
• Dual 1/2"NPT and dual M20 entries
• Supplied with haz loc rated stopping plugs
• Compact footprint


Approvals:

UL/cUL File ref: E245313
IECEx certficate: IECEx ULD 14.0004X
ATEX certificate: DEMKO 14 ATEX 4786493904X


Coding:

NEC / CEC:Class I Div 2 ABCD T2D Ta -40°C to +50°C
Class I Div 2 ABCD T3 Ta -40°C to +45°C
Class II Div 2 FG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C

NEC:Class I Zone 2 AEx nA IIC T2 Gc (Ta -40°C to +50°C)
Zone 22 AEx tc IIIC 80°C Dc (Ta -40°C to +50°C)

CEC:Class I Zone 2 Ex nA IIC T2 Gc X (Ta -40°C to +50°C)
Zone 22 Ex tc IIIC 80°C Dc (Ta -40°C to +50°C)

IECEx & ATEX:II 3G Ex nA IIC T2 Gc (Ta -40°C to +50°C)
II 3D Ex tc IIIC 80°C Dc (Ta -40°C to +50°C)



Specification:


Energy:5 Joules (5Ws)
Source:Xenon strobe
Modes:1Hz flash (60 fpm)
1.3Hz flash (80 fpm)
1.5Hz flash (90fpm)
Double flash
Effective cd:18.18 cd - UL1971
Peak Candela:500,000 cd - calculated from energy (J)
Effective cd:250 cd - calculated from energy (J)
Voltages:24vDC (20-28vDC)
Ingress protection:IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13
Enclosure material:Marine grade LM6 aluminum alloy
Colour:Red (RAL3000)
Lens colour:Clear
Lens material:Borosilicate glass dome
Cable entries:2 x M20x1.5, 2 x 1/2"NPT, +1 x 3/4"NPT in back
Stopping plugs:Nickel Plated Brass plugs included
Brass or stainless steel optional
Mounting:Conduit mount via 3/4" NPT entry
Surface mount via supplied lug pack (user installed)
Ground/Earth stud:M5
Terminals:0.5 - 2.5mm² (20-14 AWG)
Line monitoring:Blocking diode included
EOL can be factory fitted
Operating temp:-40 to +50°C [-40° to +122°F]
Storage temp:-40 to +70°C [-40° to +158°F]
Relative humidity:95%
Weight:1.5 kg / 3.31 Ibs


Current Consumption:

Nominal Voltage:Voltage Range:Nominal operating current:

 24vDC20-28vDC276mA

In-rush: 800mA within 5.42ms

Part Codes:                     D2xB1XH1 DC024 [e] [m] [s] [v] [x] / [y]

Part Code:Ident.:Description:

Product type:D2xB1XH1 18.18cd 5 Joule
   Xenon Strobe Beacon

Voltage:DC02424vDC (20-28vDC)

Cable entries: [e]M2 x M20x1.5, 2 x 1/2"NPT,
1 x 3/4"NPT in back

Adaptor/Stopping
plug material: [m]BBrass
NNickel Plated Brass
   SStainless Steel

Lens Guard: [s]0No lens Guard

Product version: [v]H1UL, cUL, IECEx & ATEX

Enclosure colour: [x]RRed RAL3000

Lens colour: /[y] CClear


Example part code:D2xB1XH1 DC024 [e] [m] [s] [v] [x] / [y]
D2xB1XH1 DC024 M N 0 H1 R / C

Explanation of the above:
Product type:"D2xB1XH1" = Xenon Beacon
Voltage:"DC024" = 24vDC
Cable Entry: [e]"M" = 2 x M20x1.5, 2 x 1/2"NPT,
1 x 3/4"NPT in back
Stopping plug[m]"N" = Nickel Plated Brass
Lens Guard: [s]"0" = No lens Guard
Version: [v]"H1" = UL, cUL, IECEx & ATEX
Enclosure colour: [x]"R" = Red RAL3000
Lens colour: /[y] "C" = Clear
