Status Light System
type PSL-35001-R-1-2B
- CAP 437
- Includes two (2) flashing LED main status lights
- Includes no (0) repeater LED status lights
- Reduced intensity mode
- Includes Marine Treatment
- Control unit in NEMA 4X fiberglass enclosure
Part Numbering Explanation for this model:
Part number: PSL-35001-R-1-2B
PSL: Type
35001: Series
R: Color: Red
1: Voltage: 120VAC ±20%
2B: Main Lights: Two (2)

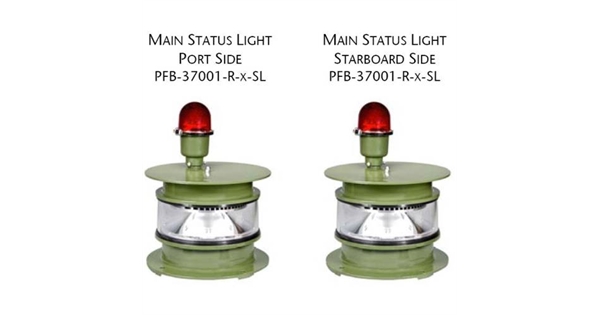

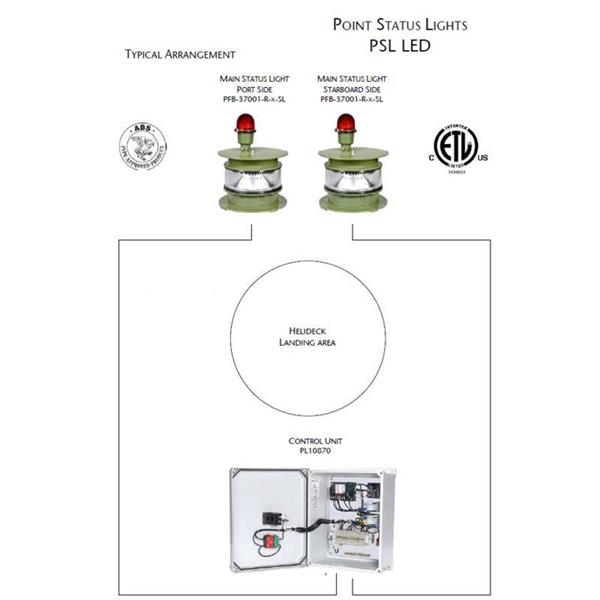

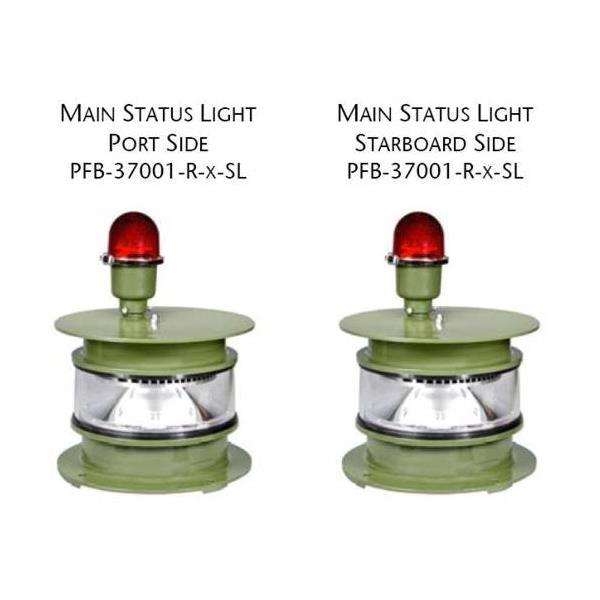

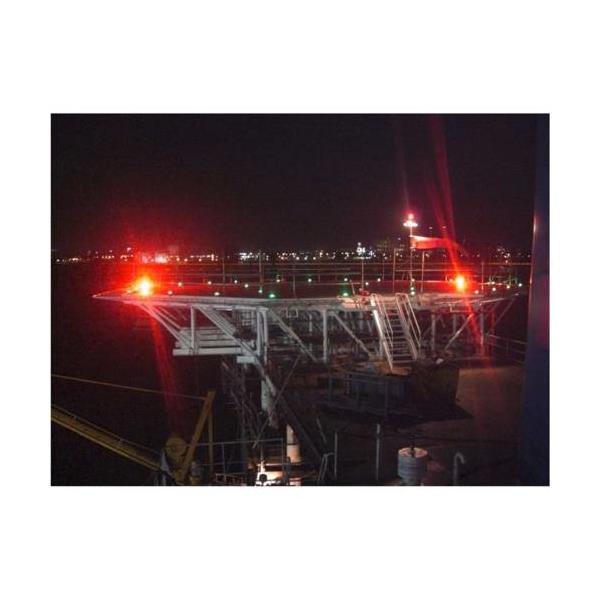

The Status Light system consists of one or two PFB flashing red LED main status lights visible from any direction of approach and on any landing heading. Additional PRL-LSM repeater lights may be placed at the helideck.
If a condition exists on an installation which may be hazardous for the helicopter or its occupants a visual warning system should be installed. The aeronautical meaning of the flashing red light is either "Do not land", "Erodrome not available for landing" or "Move clear of landing area". The system may be automatically initiated by means of a remote alarm signal (by others) as well as manual activation. All castings are aluminum, all hardware is stainless steel and the lens is glass. There is no plastic. All exterior metal beacon parts are treated for corrosion resistance that meets the US Military Standard Salt Fog Test conducted per MIL-STD-81 OF, Method 509.4, Procedure I, paragraph 4.5.2.
SPECIFICATION
The LED red status light system (PATENT PENDING) shall comply with UK CAA CAP 437. All exterior aluminum cast beacon parts shall be corrosion resistant and meet the US Military Standard Salt Fog Test conducted per MIL-STD-
81 OF, Method 509.4, Procedure I, paragraph 4.5.2. The fixture shall be treated for marine conditions by cleaning per US MIL method Ill of TT-C-490, chromate priming per US MIL-C-5541, epoxy powder base coat and glossy
polyester powdercoat finish coat in color RAL 6003 (FED-STD-595 color #14097) green. Oven cured per US MIL-PRF-2471 2A. There shall be no exterior plastic parts; all shall be cast aluminum, glass and stainless steel.
The main status lights shall flash in sync if two or more are installed. For each main status light there shall also be installed a reduced intensity status light which will similarly synchronize flashing when in use. Additional repeater lights may be installed at the landing area and shall not exceed 150 mm in height. The repeater lights shall be at the reduced intensity level. The system may be switched ON by a remote signal or manually. When ON, the system may be manually switched to reduced intensity. After 30 minutes, the system will automatically revert to normal intensity. Failure of any light will display as an alarm at the controller.
Intensity Main Status Light: > 700 candelas
Flash Rate Main Status Light: 120 per minute
Intensity Reduced Intensity Light: <60 candelas
Flash Rate Reduced Intensity Light: 120 per minute
Wattage per Main Status Light: 70.2 watts Peak (AC & DC); 52.5 watts Average (AC & DC)
Volt-Amps: 110.4 VA (120V AC only)
Input Voltage Range: 93 to 144 volts (120V unit); 176 to 264 volts (220V unit)
Temperature Rating: ± 55° C
Main Light Mounting: 4 Holes on 1 3.25-inch dia circle (337 mm)
Reduced Light Mounting: 4 Holes on 9.75-inch dia circle (248 mm)
Compliances:
* ETL Listed to UL 1598 at -55 deg C to +55 deg C
* ETL Listed to CSA C22.2 No.250.0-04 Canada
* ETL Listed to UL 1598A Marine Vessels at -55 deg C to +55 deg C
* UK CAA CAP 437 Offshore Helideck Status Light System
* Registered ISO 9001:2008
* IMO 2009 MODU Code (201 0) paragraph 1 3.5.26
* American Bureau of Shipping (ABS) Type Approved Product
* ABS Green Passport per MEPC1 79 (59)
* PATENT PENDING 201110121734 A1
Options —ROS and —ROSEX Remote Override Station
Provides for emergency remote manual operation of the status light system. When ordered, this station uses line voltage and connects to the "RTO" terminal block in the PSL system control unit. For a third party detection system intended to automatically activate the PSL system, the detection system control wire must provide line voltage matching the PSL to the ROS. The ROS switch will normally be set in the AUTO position, but may be manually switched to ON.
Note: For PSL systems without the ROS option, the third party detection system control wire connects directly to the "RTO" terminal block in the PSL system control unit.
