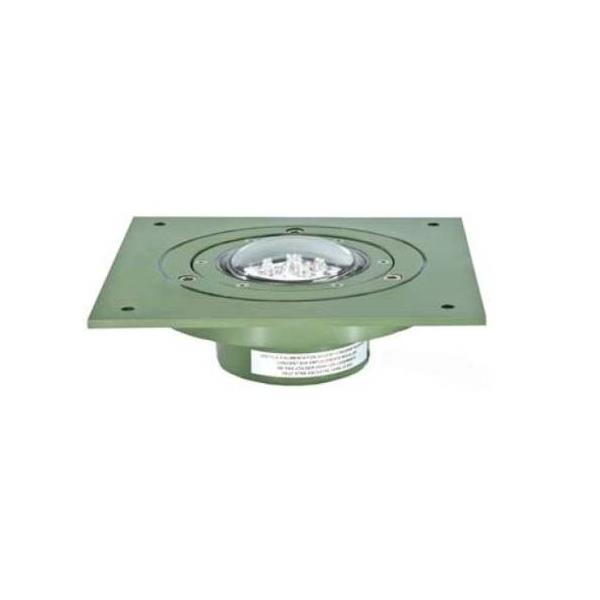

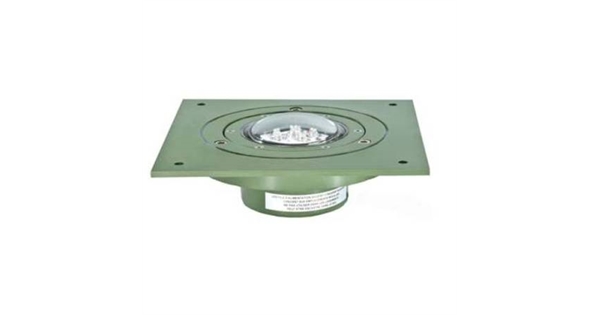

Point Rollover Semi-Flush LED Light PRL-SR LED v4
type PRL-97004-2C-G-SR-PLS-M20
LED 220V Green Semi-flush light with stainless steel seating ring and 4-inch Shallow Base
Part Numbering Explanation for this model:
Part number: PRL-97004-2C-G-SR-PLS-M20
PRL: Type
97004: Series
2: Voltage: 230VAC
C: Array: CAP 437 (The PRL v4 C array is 7.4 watts at 120-220V)
G: Color: Green
SR: Mounting: Seating Ring Stainless Steel
PLS: 4-inch Shallow Base (see detail H52 under links above)
M20: 2 x M20 metric cable entries at 0 & 180-degrees (in stead of 1-inch NPT)
The PRL-SR Point Rollover Light is a semi-flush LED light used for metal helidecks on the TLOF and/or the FATO perimeter used for helideck TLOF and the thick glass dome lens passed the impact test per IEC 60079-0:2007. The lens and optical assembly are sealed mechanically. Standard with our marine treatment. The seating ring mounting flange and all external hardware is grade 316 (A4) stainless steel.
Note: Minimum opening in the helideck is 232mm (9.125 inches) diameter round opening.
Note: 24mm height complies with 2012 Cap 437
The fixture shall be treated for marine conditions by cleaning per US MIL method III of TT-C-490, chromate priming per US MIL-C5547, epoxy powder base coat and glossy polyester powdercoat finish coat in color RAL 6003 (FED-STD-595 color #74097) green. Oven cured per US MIL-PRF-24772A.
Compliances:
* ETL Listed to UL 1598A Marine Vessels at -40 deg C to +55 deg C
* ETL Listed per UL 844 & Ul 1598
* ETL Listed to UL 1598A Marine Vessels at -40 deg C to +55 deg C
* ETL Listed to CSA C22.2 No. 137-M1981 & No. 250.0-08 Canada
* Registered ISO 9001:2008
* UK CAA CAP 437
* Mechanical load Tested by Intertek to CAP 437 para. 4.2.3 & 5.2.3
* IMO 2009 MODU Code (201 0) paragraph 13.5.20
* American Bureau of Shipping (ABS) Type Approved Product
