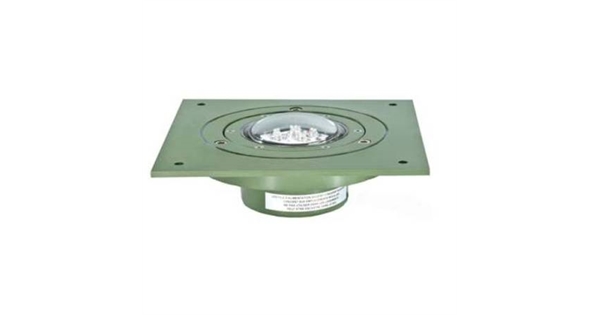

Point Rollover Semi-Flush LED Light PRL-SR LED v4

type PRL-97004-2C-G-SR-CL



LED 220V Green Semi-flush light with stainless steel seating ring and 2m jacketed cable with compression fitting

Part Numbering Explanation for this model:

Part number: PRL-97004-2C-G-SR-CL

PRL:    Type

97004: Series

2:         Voltage: 230VAC

C:         Array: CAP 437 (The PRL v4 C array is 7.4 watts at 120-220V)

G:         Color: Green

SR:     Mounting: Seating Ring Stainless Steel

CL:   2m jacketed cable with compression fitting instead of the PLB or PLS base
(see detail H49 under links above)



The PRL-SR Point Rollover Light is a semi-flush LED light used for metal helidecks on the TLOF and/or the FATO perimeter used for helideck TLOF and the thick glass dome lens passed the impact test per IEC 60079-0:2007. The lens and optical assembly are sealed mechanically. Standard with our marine treatment. The seating ring mounting flange and all external hardware is grade 316 (A4) stainless steel.



Note: Minimum opening in the helideck is 232mm (9.125 inches) diameter round opening.
Note: 24mm height complies with 2012 Cap 437



The fixture shall be treated for marine conditions by cleaning per US MIL method III of TT-C-490, chromate priming per US MIL-C5547, epoxy powder base coat and glossy polyester powdercoat finish coat in color RAL 6003 (FED-STD-595 color #74097) green. Oven cured per US MIL-PRF-24772A.



Compliances:
* ETL Listed to UL 1598A Marine Vessels at -40 deg C to +55 deg C
* ETL Listed per UL 844 & Ul 1598
* ETL Listed to UL 1598A Marine Vessels at -40 deg C to +55 deg C
* ETL Listed to CSA C22.2 No. 137-M1981 & No. 250.0-08 Canada
* Registered ISO 9001:2008
* UK CAA CAP 437
* Mechanical load Tested by Intertek to CAP 437 para. 4.2.3 & 5.2.3
* IMO 2009 MODU Code (201 0) paragraph 13.5.20
* American Bureau of Shipping (ABS) Type Approved Product
