Point Helideck Low Surface Light PRL-LSM LED v4
type PRL-97004-2C-G-LSM-M20-MT
LED 220V Green Surface mounted perimeter light; 148mm height
CAP 437; UL 1598A marine vessels
Includes Marine Treatment
Part Numbering Explanation for this model:
Part number: PRL-97004-2C-G-LSM-M20-MT
PRL: Type
97004: Series
2: Voltage: 230VAC
C: Array: CAP 437 (The PRL v4 C array is 7.4 watts at 120-220V)
G: Color: Green
LSM: Mounting: Low Surface Mount (see detail H14 under links above)
M20: 2 x M20 entries at 0 & 180-degrees
MT: Marine Treatment for corrosive environments

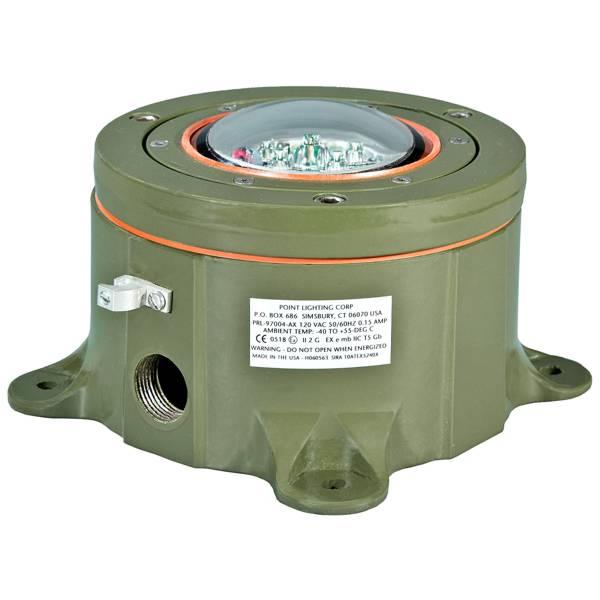

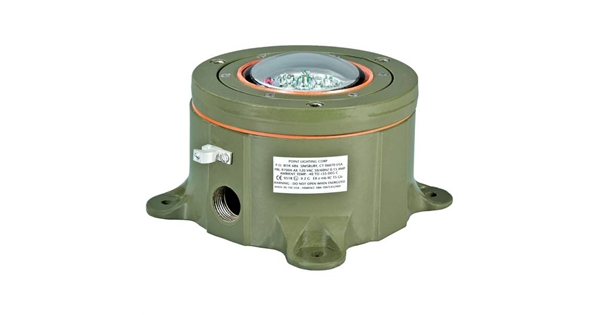

The PRL-LSM is an 8-inch diameter surface mounted light less than 6-inches high used for metal helidecks or existing pavement heliports on the FATO perimeter. All external hardware is grade 316 (A4) stainless steel. The lens and optical assembly are sealed mechanically without the use of chemical sealants. The cable may enter via conduit or a watertight compression fitting. Silicone-filled wire connectors and ground lug are included for installer use.
For offshore helidecks, use option -MT Marine Treatment.
The fixture shall be treated for marine conditions by cleaning per US MIL method III of TT-C-490, chromate priming per US MIL-C5547, epoxy powder base coat and glossy polyester powdercoat finish coat in color RAL 6003 (FED-STD-595 color #74097) green. Oven curedper US MIL-PRF-24772A.
Compliances:
* ETL Listed to UL 1598A Marine Vessels at -40 deg C to +55 deg C
* ETL Listed to CSA C22.2 No. 137-M1981 & No. 250.0-08 Canada
* ETL Listed to UL 1598 at -40 deg C to +55 deg C
* IMO 2009 MODU Code (2010) paragraph 13.5.20
* FAA AC 150/5390-2B Heliport Design Guide
* ICAO Annex 14, Volume II
* Registered ISO 9001:2008
* UK CAA CAP 437, Chapter 4, paragraph 3.1
* Transport Canada TP14371, AGA 7.17
* American Bureau of Shipping (ABS) Type Approved Product
* ABS Green Passport per MEPC179 (59)
