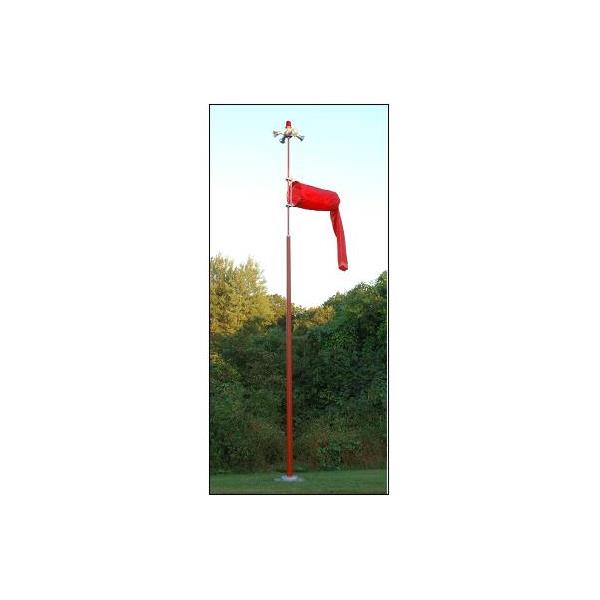

POINT WIND CONE PWC-807-1-L-2-ON-WM-D-L

8 ft. Sock, 21,5 ft. High Pole

Varenr:
PWC-8071L-2-ON-WM-DL
PWC-8071L-2-ON-WM-DL Point Lighting Corporation PWC-8071L-2-ON-WM-DL POINT WIND CONE PWC-807-1-L-2-ON-WM-D-L 8 ft. Sock, 21,5 ft. High Pole
PWC-8071L-2-ON-WM-DL Point Lighting Corporation PWC-8071L-2-ON-WM-DL POINT WIND CONE PWC-807-1-L-2-ON-WM-D-L 8 ft. Sock, 21,5 ft. High Pole
Lenker: | 0MOUNTINGS | DataSheet
POINT WIND CONE PWC


A wind cone is used to visually indicate wind direction at airports and heliports.
Point Lighting wind cones are installed at airports, hospitals, corporate headquarters and military bases around the world.
Point recommends the PWC - 806 - 1 - L - 1 - ON - FF - G - T - SM  for roof top heliport installations.
This wind cone is easily serviced from a step ladder or unbolted to lower.

Compliances:

ETL Verified FAA L-806 FAA Advisory Circular 150/5345-27E
ETL Verified FAA L-807 FAA Advisory Circular 150/5345-27E
Registered ISO 9001:2008
Transport Canada TP312, Chapter 5 Visual Aids
ICAO Annex 14, Volume II Heliports, Paragraph 5.1
Australia CASA MOS Part 139, Section 9.6
U.S. Navy NAVAIR 51-50AAA-2


Part number for this model: PWC-8071L-2-ON-WM-D-L


Part numbers:

FAA:PWC

Type:806Frangible, Point Wind Cone, PWC 806
807Rigid, Point Wind Cone, PWC 807

Size:18-ft Sock FAA, Size 1
212-ft Sock, Size 2
41.2m Sock ICAO Helideck
52.4m Sock, IWDI Australia CASA

Lighting:LLighted; Style I
UUnlighted; Style II

Power:1120v
2230v
0None

Windsock:ONOrange Nylon
RWRed/White
WHWhite Nylon
YLYellow Nylon CASA

Options:HBAHinged Base Tapered Aluminum Pole
 (includes anchor bolts)
FFFloor Flange (anchor bolts by others)
SSPStainless Steel 316L Pole
(add option –A and consider option –SM)
HSPCenter Hinged Steel Pole with winch; gray painted
LIRFiberglass Frangible Pole
WMWall Mounted Steel Pole
ACrating of pole
(required for Type 807 export and Type 806 -SSP)
BInternally Lighted with floodlamps in place of
external lighting
BS*Internally Lighted for special applications including
solar
CNormal External Lighting plus Internally Lighted
DLED Red Obstruction Light
DIRLED Red Obstruction Light & NVG Compatible
EDouble Red Obstruction Light
FObstruction Light Only (for an unlighted wind cone)
FMFlange Mount (requires option –SSP and see page 4)
GRigid Machined Coupling in place of frangible
coupling
HPole Painted with Red & White Stripes
JPole Painted Red
JBJunction Box type PLB with blank coverplate
(see 0MOUNTINGS)
LLED Floodlighting in place of halogen
LFLED Floodlighting for use at US FAA airport
installations
MTMarine Treatment (pole remains orange)
BBSBattery Backup System minimum 3 hours
PFAA Photoelectric Controller (voltage type only)
JB1-PFAA PEC with Junction Box & baseplate
(see 0MOUNTINGS)
SMStand Mount with bracket & junction box
TTether of stainless steel for upper assembly

Wind Sock Sizes:

Size 1:8-ft sock has 18-inch diameter frame
Size 2:12-ft sock has 36-inch diameter frame
Size 4:1.2m sock has 0.3m diameter frame
Size 5:2.4m sock has 0.6m diameter frame

  All lighted versions include obstruction light

ROOF MOUNTED WIND CONES
For increased safety, POINT LIGHTING CORPORATION recommends the use of the low height 806 type wind cone with option -G, rigid machined coupling to reduce frangibility, and option -T, stainless steel tether.
Any roof mounted equipment will be a hazard to persons below if it is struck or otherwise comes apart due to high wind, excessive snow accumulation, etc.
We recommend option –SM (see page 2 in the data sheet) for all roof sites and it can be a useful method for ground concrete pads as well.
For offshore and all corrosive sites, add option –MT Marine Treatment.
