CCG Utility Box # 1 w/ 4 x M20

IP66 / 67/ 68

Varenr:
CCGUT101
CCGUT101 Remora 102101 CCG Utility Box # 1 w/ 4 x M20 IP66 / 67/ 68
CCGUT101 Remora 102101 CCG Utility Box # 1 w/ 4 x M20 IP66 / 67/ 68 CCGUT101 Remora 102101 CCG Utility Box # 1 w/ 4 x M20 IP66 / 67/ 68
CCGUT101 Remora 102101 CCG Utility Box # 1 w/ 4 x M20 IP66 / 67/ 68
CCGUT101 Remora 102101 CCG Utility Box # 1 w/ 4 x M20 IP66 / 67/ 68 CCGUT101 Remora 102101 CCG Utility Box # 1 w/ 4 x M20 IP66 / 67/ 68
Lenker: | DataSheet

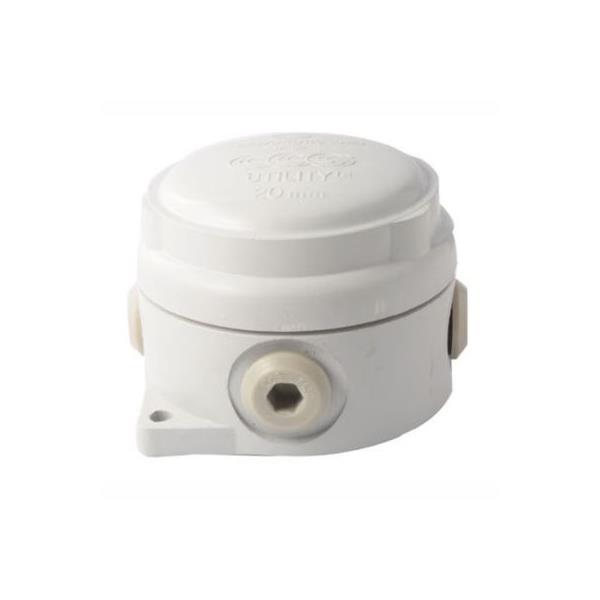

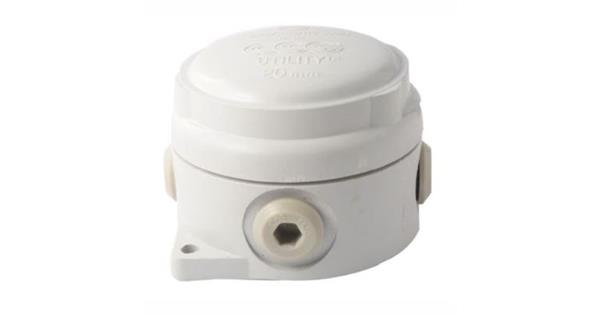

CCG Utility Box



The Utility Box is a general purpose junction box suitable for all surface industrial applications.

It is manufactured from impact, corrosion and UV resistant glass reinforced polyester compound and provides 1,2,3 or 4 way versatility.

Screw on lid provides ease of installation and when locked with the special locking key prevents unauthorised tampering.


  • No exposed metal parts
  • Dust and water proof to IP68 when used with approved Remora glands
  • One box offers 1, 2, 3 or 4 way versatility for reduced stock holding
  • No drilling or tapping of cable entries required

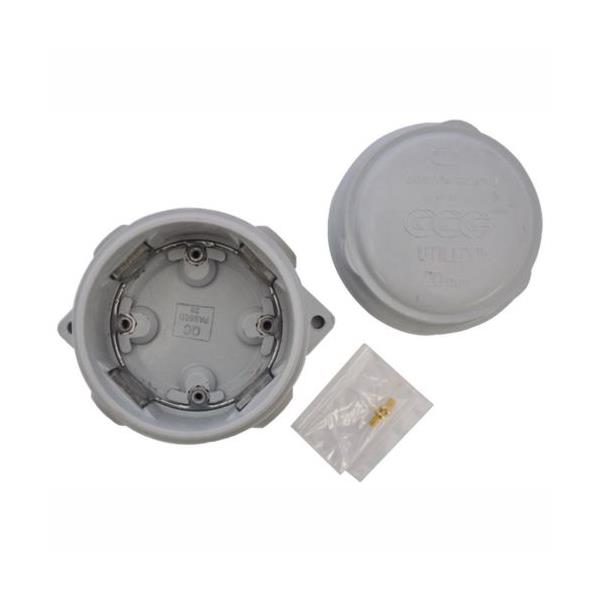

  • Mounting studs provided for DIN rail terminals
  • Internal earth continuity ring to earth gland entries


Material:UV Resistant Glass Reinforced Polyester Compound
IP Ratings:IP66 / 67/ 68
Standard:SABS 2333 / IEC 600529


Dimensions:



 Size   :     A    :    B  :    C   :   D   :   E   :Box Code:

1 - M20M20x1.5  49  80122  75102101
2 - M25M25x1.5  53110158  86102102


(All Dimensions in mm.)
