CCG PosiFit #0 4-Way M20s

IP66 / 67/ 68, Zones 1, 2, 21 & 22 EExe

Varenr:
CCGPOS0
CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe
CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe
CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe
CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe CCGPOS0 X-Diverse 1003-0 CCG PosiFit #0 4-Way M20s IP66 / 67/ 68,  Zones 1, 2, 21 & 22 EExe
Lenker: | DataSheet | Manual

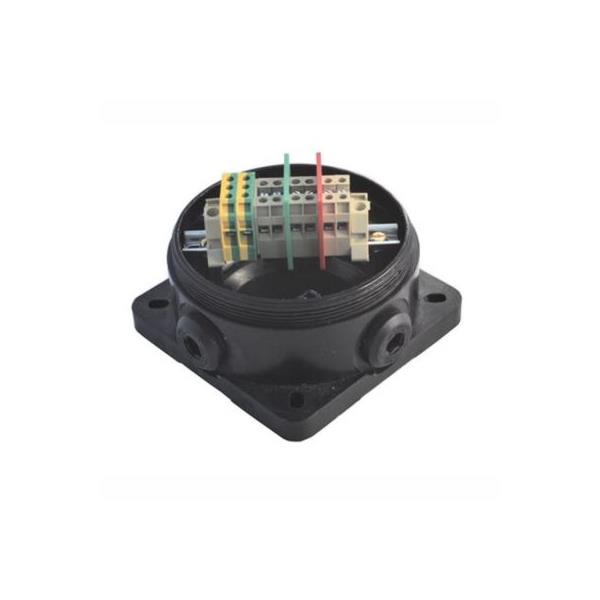

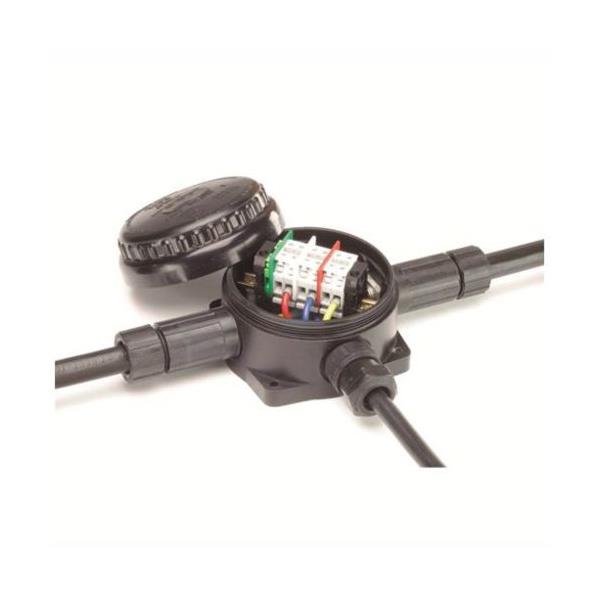

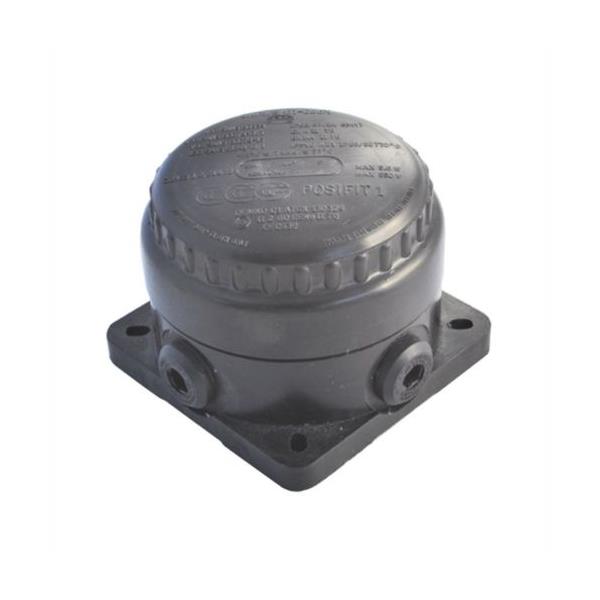

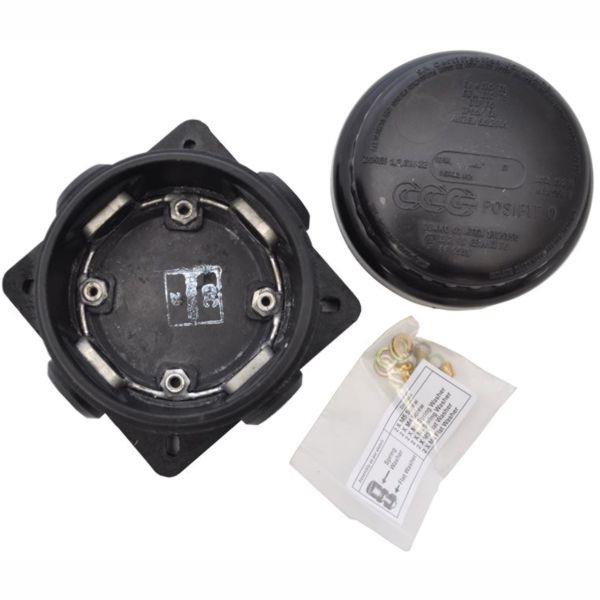

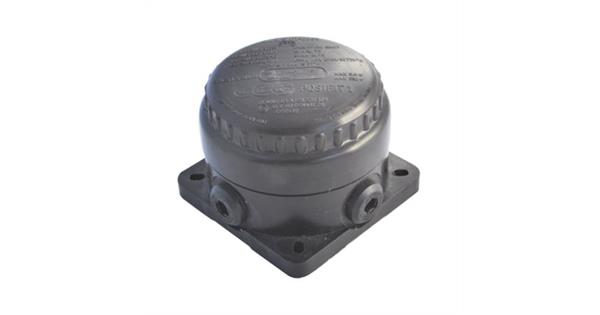

CCG Posifit EExe Junction Box



The POSIFIT EExe 4-Way / Y-Boxes are supplied for use in increased safety areas. They are manufactured from impact, corrosion and UV resistant glass reinforced polyester compound, and provides 1,2,3 or 4 way versatility.




  • No exposed metal parts
  • Dust and water proof to IP68 when used with approved Remora glands
  • One box offers 1, 2, 3 or 4 way versatility for reduced stock holding
  • No drilling or tapping of cable entries required
  • Mounting studs provided for DIN rail terminals
  • Internal earth continuity ring to earth gland entries
  • High temperature resistance & anti-static properties
  • Raised dome lid facilitates connections to be made outside of the box





Material:UV Resistant Glass Reinforced Polyester Compound
IP Ratings:IP66 / 67/ 68
Standard:CENELEC / ATEX Zones 1, 2, 21 & 22 EExe II


Dimensions 4-way:



 Size   :     A    :    B  :    C   :   D   :   E   :Box Code:

0 - M20sM20x1.5  52  71  77  651003-0
1 - M20M20x1.5  58  89  90  80100301
2 - M25M25x1.5  67107107  98100302
3 - M32M32x1.5105165167140100303


(All Dimensions in mm.)
