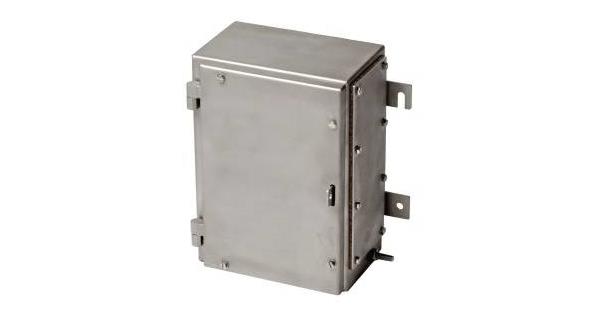

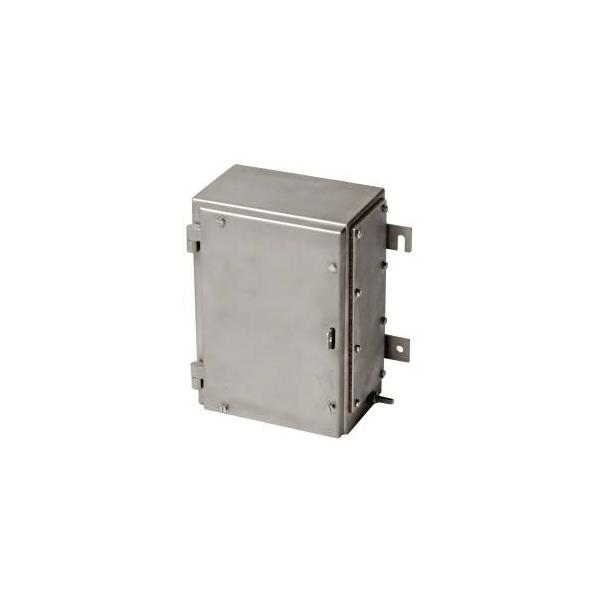

SS Enclosure SSX11402GPAC 234x324x140mm

IP66 Spec:Q2018/ABTECH/72744-0/DH

Varenr:
ESSX11402GPAC_Q72744
ESSX11402GPAC_Q72744 Abtech SSX1 SS Enclosure SSX11402GPAC 234x324x140mm IP66 Spec:Q2018/ABTECH/72744-0/DH
ESSX11402GPAC_Q72744 Abtech SSX1 SS Enclosure SSX11402GPAC 234x324x140mm IP66 Spec:Q2018/ABTECH/72744-0/DH

ESSX11402GPAC

Specification Q2018/ABTECH/72744-0/DH


Stainless Steel 1.4404 (BS EN 10088-1 1995)
SSX 1. Size: 234x324x140mm.


Stud: 1 x EEAESM10SS Enclosure Earth Stud Welded M10
Stainless Steel Side B
Enclosure Earth Bar: Quantity 1, Orientation same as Rails,
Position right(bottom) with 12 x TKACZB4 Clamps (1 x
EAEB10X3B)
Stud: 1 x EADESM6SSDoor Earth Stud M6 Stainless Steel
Stud: 1 x EAGPESM6SS (Position 20mm, Gland Plate Earth
Stud M6 Stainless Steel (Position 20mm, 20mm)
External Hinges: position: Default.

Other Items:
2 x TKACSH1 (SH 1 Rail Support (0299860000)).


Note 1: Unless specified otherwise all machining tolerance shall be class ‘m’ to BS EN 22768-1:1993, except for circular cable gland entries in junction boxes where the tolerance shall be +/- 0.25mm for hole sizes and +/- 2.0mm for hole positions. Where such entry positions are not specified they will be located at our discretion.
Note 2: Where the quotation is for hazardous area certified product please refer to the attached detailed specification sheet; in particular the permitted areas of use.
Note 3: Where applicable, stated delivery period commences upon receipt of final approved drawings.
Note 4: Unless otherwise stated, carriage and packing charges are based upon a single delivery. If you decide to receive goods on multiple deliveries we reserve the right to levy additional carriage charges.
Note 5: Whilst we make every effort to correctly interpret your requirements, please be aware that it is your responsibility to ensure that the quoted items are checked for suitability against your original enquiry. Orders subsequently received which reference this quotation, will be treated as an order for the items quoted above and not for the items detailed in your original enquiry.
Note 6: Please note that our minimum order charge is NOK 2.000,00 (excluding carriage & packing and VAT).
