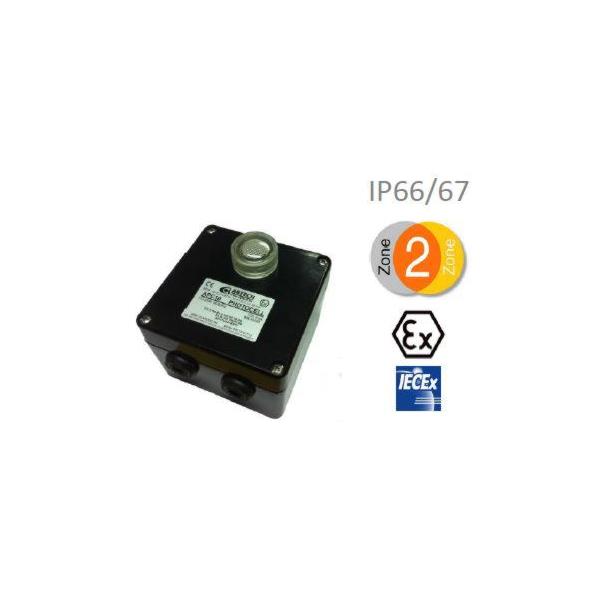

Photocell APC10 Zone 2, 10A 4 x M20

IP66&67 ATEX/IECEx II3GDExnAmcIICT6Gc

Varenr:
LX2APC104M20
LX2APC104M20 Abtech LX2APC104M20 Photocell APC10 Zone 2, 10A 4 x M20 IP66&67 ATEX/IECEx II3GDExnAmcIICT6Gc
LX2APC104M20 Abtech LX2APC104M20 Photocell APC10 Zone 2, 10A 4 x M20 IP66&67 ATEX/IECEx II3GDExnAmcIICT6Gc
Lenker: | DataSheet
APC Photocell LX2APC104M20

Photocell APC10 Zone 2

Q2019/ABTECH/80953-0/DF

APC10 Zone 2 photocell capable of switching lighting circuits up to 10Amps. Switching level 70 lux with built in switching delay of 25 seconds to prevent nuisance switching. Suitable for operation at 110-277V 50/60Hz. Terminals to suit 4mm² conductors.

All housed in BPG 6 glass reinforced polyester enclosure, 4 x M20 cable entries all suitably plugged.
ATEX and IECEx certified: II 3 GD Ex nA mc IIC T6 Gc, Ex tc IIIC T80ºC Dc for use in Zone 2 andamp; 22 areas.
(Finish: Standard)
IP Rating: IP66/67.
Certification Level: ATEX and IECEX - Ex nA mc Apparatus certified (Suitable for use in Zone 2/22 Areas).
Temperature Rating: T6.
Ambient Temperature (Degrees C): -40 to +55.

The APC provides the ability to control the switching of lighting in hazardous areas, without the need for major rewiring of existing circuits. Based on Abtech’s proven BPG enclosure range, the photocell combines tried and tested circuitry with superior ingress and UV protection.

• Reduce carbon emissions and running costs by switching off lighting automatically when a specific light level is reached
• Standard switching level is 70 lux
• Built in delay of 25 seconds to prevent nuisance switching

Luminaire Ratings:

Product Reference:LX2APC104M20
Load Types:Resistive & Inductive
Current Rating:10 A
Light Level:70 lux *
Temperature Rating:T6 *
Ambient Temperature:-40°C to 55°C *
Weight:2.0 kg

*Alternative switching levels are available; refer to table on page 2 in the DataSheet


Standard Specifications:

Luminaire Type:Zone 2 photocell
Ingress Protection:IP66/67 to EN60529
Material:Glass reinforced polyester housing, polycarbonate
sensor window, stainless steel fixings
Lamp Types:Suitable for use with all lamp types, resistive
and inductive loads
Cable Entry:4 x M20 tapped entries. Supplied with 4 x Ex plugs
Terminals:Terminals block for up to 6mm² conductors
Control Gear:Electronic with on load switching up to 10A
Orientation:Universal
Mounting:Via rear mounting holes
Supply:110 to 254V 50/60Hz
Certification:
Area Classification:Zone 2 & 22, Gas and Dust
Type of Protection:Ex nA mC (non-sparking, encapsulation)
Apparatus Coding:II 3 GD Ex nA mc IIC T6 Gc, Ex tc IIIC T80ºC Dc
Certificate Number:SIRA 10ATEX3543X / IECEx SIR 10.0171X

Notes:
Note 1: Unless specified otherwise all machining tolerance shall be class ‘m’ to BS EN 22768-1:1993, except for circular cable gland entries in junction boxes where the tolerance shall be +/- 0.25mm for hole sizes and +/- 2.0mm for hole positions. Where such entry positions are not specified they will be located at our discretion.
Note 2: Where the quotation is for hazardous area certified product please refer to the attached detailed specification sheet; in particular the permitted areas of use.
Note 3: Where applicable, stated delivery period commences upon receipt of final approved drawings.
Note 4: Unless otherwise stated, carriage and packing charges are based upon a single delivery. If you decide to receive goods on multiple deliveries we reserve the right to levy additional carriage charges.
Note-5: Delivery is an approximation based on available capacity at time of quote. Firm delivery dates will be confirmed upon order confirmation.
Note 6: Whilst we make every effort to correctly interpret your requirements, please be aware that it is your responsibility to ensure that the quoted items are checked for suitability against your original enquiry. Orders subsequently received which reference this quotation, will be treated as an order for the items quoted above and not for the items detailed in your original enquiry.
Note 7: Please note that our minimum order charge is £200.00 (excluding carriage & packing and VAT).
Note 8: Unless specified on the quotation, Abtech enclosures and control stations are supplied without internal wiring between terminals, operators and contact blocks or to any additional components that may be installed.
