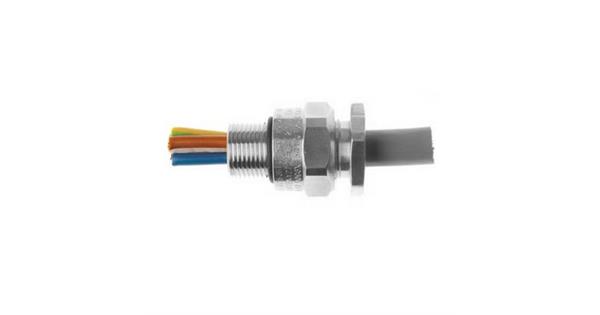

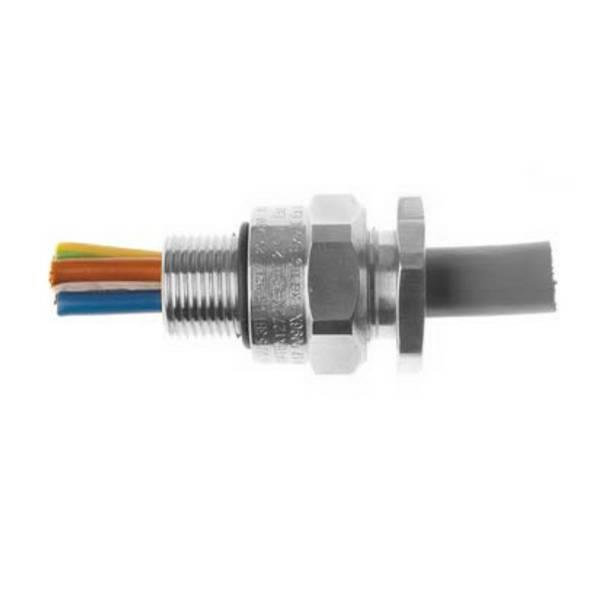

Cable Gland A2LS/50s/M50, SS316
IP66&IP68@50m, oø33,2-44,1 mm
|
|
Cable Gland Type A - (Single seal Gland designed for use with Unarmoured Cable)
IEC 62444 : EN 62444 : BS 6121 : IP66 : IP68 |
“A” type glands are commonly referred to as “stuffing glands”. They provide a controlled, pull resistant environmental displacement seal on the cable outer sheath, minimising damage to cables that exhibit “cold flow” characteristics.
The gland maintains IP66 & IP68 to 50 metres. Options are available for use with LSOH cables and extreme temperature applications.
| | |
| Compliance Standard: | IEC 62444; EN 62444; BS 6121 |
| | |
| Certification: | ABS Specified ABS Rules |
| | |
| Certificate No.: | ABS 14-LD463991-1-PDA |
| | |
| IP Rating: | IP66 & IP68 (50 metres - 7 Days ) |
| | |
| Operating Temperature: | Neoprene Seals -35ºC to +90ºC |
| Silicone Seals -60ºC to +180ºC |
| | |
| Materials: | Brass, Stainless Steel or Aluminium |
| | |
| Plating: | Electroless Nickel |
| | |
Cable Gland Selection Table:
| Gland | Entry | Thread | Cable | Nominal | Dim. | Weight | |
| Size | Thread | Length | Acceptance | Protrusion | Across | Kgs. | |
| Size | [B] | Range [D] | Length [L] | Corners [A] | | |
| | | | | | | | |
| 12 | M12 x 1.5 | 16 | 0.9 - 6.0 | 33 | 21.0 | 0.038 | |
| 12 | M16 x 1.5 | 16 | 0.9 - 6.0 | 33 | 28.0 | 0.068 | |
| 12 | M20 x 1.5 | 16 | 0.9 - 6.0 | 33 | 28.0 | 0.082 | |
| 16 | M16 x 1.5 | 16 | 4.0 - 8.4 | 33 | 28.0 | 0.097 | |
| 16 | M20 x 1.5 | 16 | 4.0 - 8.4 | 33 | 28.0 | 0.104 | |
| 20S | M20 x 1.5 | 16 | 7.2 - 11.7 | 33 | 28.0 | 0.102 | |
| 20 | M20 x 1.5 | 16 | 9.4 - 14.0 | 33 | 33.0 | 0.127 | |
| 25 | M25 x 1.5 | 16 | 13.5 - 20.0 | 33 | 41.4 | 0.166 | |
| 32 | M32 x 1.5 | 16 | 19.5 - 26.3 | 33 | 50.6 | 0.244 | |
| 40 | M40 x 1.5 | 16 | 23.0 - 32.2 | 37 | 60.5 | 0.396 | |
| 50S | M50 x 1.5 | 16 | 28.1 - 38.2 | 37 | 71.5 | 0.558 | |
| 50 | M50 x 1.5 | 16 | 33.1 - 44.1 | 37 | 71.5 | 0.438 | |
| 63S | M63 x 1.5 | 19 | 39.2 - 50.1 | 37 | 88.0 | 0.832 | |
| 63 | M63 x 1.5 | 19 | 46.7 - 56.0 | 37 | 88.0 | 0.664 | |
| 75S | M75 x 1.5 | 19 | 52.1 - 62.0 | 37 | 99.0 | 0.924 | |
| 75 | M75 x 1.5 | 19 | 58.0 - 68.0 | 37 | 99.0 | 0.714 | |
| 80 | M80 x 2 | 25 | 62.2 - 72.0 | 50 | 115.2 | 1.514 | |
| 85 | M85 x 2 | 25 | 69.0 - 78.0 | 50 | 115.2 | 1.332 | |
| 90 | M90 x 2 | 25 | 74.0 - 84.0 | 50 | 125.7 | 1.622 | |
| 100 | M100 x 2 | 25 | 82.0 - 90.0 | 50 | 125.7 | 1.523 | |
Alterativ Gland Size and Entry Thread Size in NPT:
| Gland Size | Entry Thread Size NPT |
| | |
| 12 | 0375 NPT (3/8”) or 050 NPT (1/2”) |
| 16 | 050 NPT (1/2”) or 075 NPT (3/4”) |
| 20S | 050 NPT (1/2”) or 075 NPT (3/4”) |
| 20 | 050 NPT (1/2”) or 075 NPT (3/4”) |
| 25 | 075 NPT (3/4”) or 100 NPT (1”) |
| 32 | 100 NPT (1”) or 125 NPT (1 1/4”) |
| 40 | 125 NPT (1 1/4”) or 150 NPT (1 1/2”) |
| 50S | 150 NPT (1 1/2”) or 200 NPT (2”) |
| 50 | 200 NPT (2”) |
| 63S | 200 NPT (2”) or 250 NPT (2 1/2”) |
| 63 | 250 NPT (2 1/2”) |
| 75S | 250 NPT (2 1/2”) or 300 NPT (3”) |
| 75 | 300 NPT (3”) |
| 80 | 300 NPT (3”) or 350 NPT (3 1/2”) |
| 85 | 300 NPT (3”) or 350 NPT (3 1/2”) |
| 90 | 350 NPT (3 1/2”) or 400 NPT (4”) |
| 100 | 350 NPT (3 1/2”) or 400 NPT (4”) |
| | 1 | | |
| Part Numbers: | A | 2 | L | B |
| | 3 | | S |
| | 4 | | A |
| Example Part Numbering: | A 2 L B / N P / 2 0 / M20 |
| (See below for details) | |
| A | Type of gland featuring controlled displacement |
| | sealing |
| 2 | (2) Neoprene Seals (-35ºC to +90ºC) |
| | (3) Silicone Seals (-60ºC to +180ºC) |
| | (1) Neoprene/Lead |
| | (4) Silicone/Lead |
| L | Peppers Standard Designation |
| B | (B) Brass |
| | (S) Stainless Steel |
| | (A) Aluminium |
| | | |
| Options: | C | (C) PVC Shroud |
| Options: | | (P) PCP Shroud |
| Options: | | (3) Silicone LSOH Shroud |
| Options: | K, V or H | (K) Locknut & Nylon, (V) Fibre IP Washer |
| | or (H) PTFE IP Washer |
| Options: | T | Including Earth Tag |
| Options: | S | Including Serrated Washer |
| Options: | 1 | Quantity per kit |
| Options: | NP | (NP) Nickel Plated or (ZP) Zinc Plated |
| | | |
| 20 | Gland shell size |
| M20 | M20 x 1.5mm Male Entry Thread |
Optional Accessories:
| Locknut: | Brass (A C B L N) |
| Brass Nickel Plated (A C B L N / N P) |
| Stainless Steel (A C S L N) |
| Aluminium (A C A L N) |
| |
| Earth tag: | Brass (A C B E T) |
| Brass Nickel Plated (A C B E T / N P) |
| Stainless Steel (A C S E T) |
| Aluminium (A C A E T) |
| |
| IP Washers: | Nylon (A C N S W) (-40° to +95°C) |
| Fibre (A C F S W) (-40° to +135°C) |
| PTFE (A C P S W) (-200° to +260°C) |
| (see note 3 below) |
| |
| Serrated Washers: | Stainless Steel (A C S S W) |
| |
| Shrouds: | PVC (A C S P V C) (-25° to +70°C) |
| PCP (A C S P C P) (-30° to +100°C) |
| LSOH (A C S S I O) (-60° to +200°C) |
Notes:
| | |
| * | Gland size does not necessarily equate to the entry thread size. |
| * | Dimensions (A) & (B) may differ for glands with non metric entry |
| threads. Please refer to our “Thread Reference Tables” for specific |
| dimensions. |
| * | Assembly instructions must be read prior to installation and adhered |
| to in full. |
| * | Peppers supplies cable glands with parallel entry threads that |
| conform to the flameproof threaded joint requirements of IEC/EN |
| 60079-1 and other equivalent standards. They usually incorporate a |
| thread run out according to the available machining techniques and |
| will not have a full form thread for the entire length. |
| Peppers Cable Glands Limited will not be held responsible for |
| clients’ installations where this has not been taken into account. |
| * | When selecting IP Washer & Shroud material for use with glands, |
| please be aware of the accessories temperature range to ensure they |
| are suitable for the intended installation. |
| |
For further details, please refer to the attached Datasheet, Assembly Instructions (Manual), Certificates and other relevant documents.
