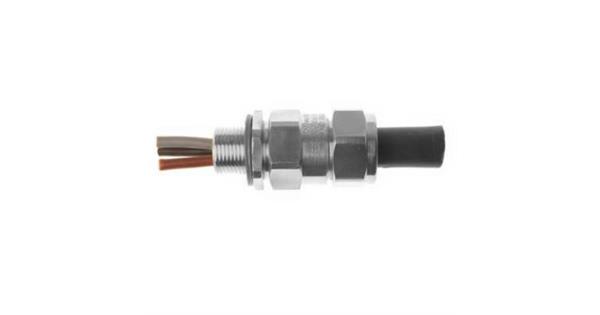

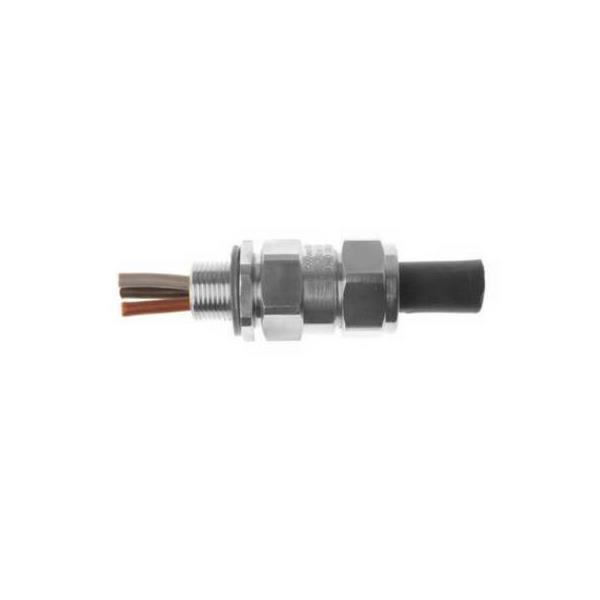

Cable Gland Type C

Single Compression Gland for Armoured Cable featuring Dedicated Armour Clamping

Ex e : Ex ta : IP66 Class I Div 2 : AEx e : AEx ta

PRODUCT DESCRIPTION
“C” type single compression glands are certified Increased Safety Ex e and Dust Protected Ex ta. They are suitable for use in Zone 1 and 2 for Gas Gor ups IIA, IIB and IIC and additionally for use in Zones 20, 21 and 22 for Dust Groups IIIA, IIIB and IIIC. Also certified for Class I Zone 1 & Calss I Div 2 installations for use with Marine Shipboard & Tray Cables under NEC & CEC.
The gland is suitable for cables that exhibit “cold flow” characteristics, whilst providing an IP66 environmental seal on the cable outer sheath and a detachable armour specific clamping system for wire (W), braid/tape (X) armoured cables. The “IE” version allows the gland to be used with HV cables where the fault load is greater than 10.4kA and options are available for use with LSOH cables and extreme temperature applications.

COMPLIANCE STANDARDS:
EN 60079-0, EN 60079-7, EN 60079-31
IEC 60079-0, IEC 60079-7, IEC 60079-31 & IEC 60529
C22.2 (see certificate), CAN/CSA 60079-0/7
UL514B, UL1203, UL2225, UL50E, ANSI/UL 60079-0/7, ISA 60079-31
