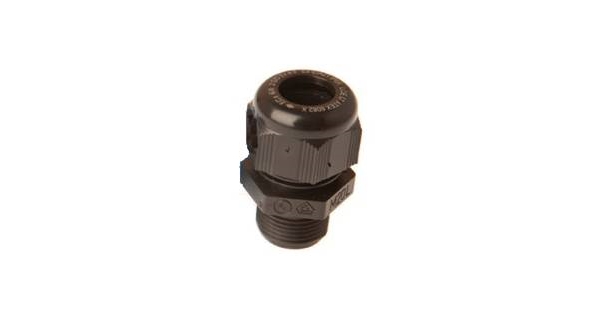

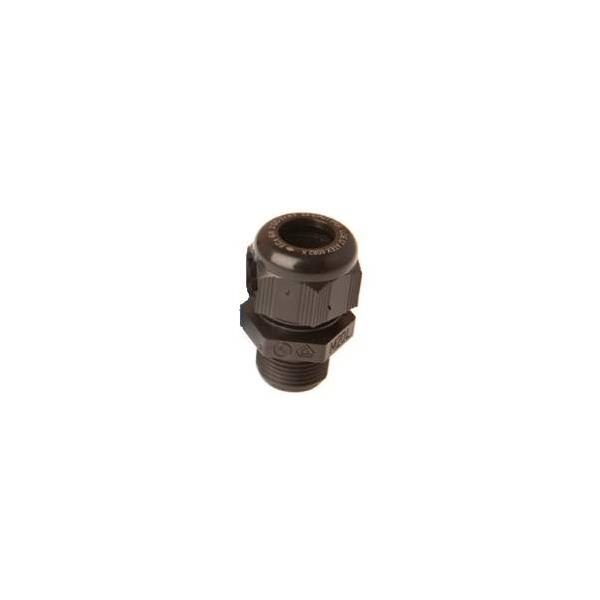

ATEX Cable Gland PF8026300E M63

EExeII IP66&IP68 BlackNylon oø40-48mm

Varenr:
PF8026300E
PF8026300E Peppers  ATEX Cable Gland PF8026300E M63 EExeII IP66&IP68 BlackNylon oø40-48mm
PF8026300E Peppers  ATEX Cable Gland PF8026300E M63 EExeII IP66&IP68 BlackNylon oø40-48mm PF8026300E Peppers  ATEX Cable Gland PF8026300E M63 EExeII IP66&IP68 BlackNylon oø40-48mm
PF8026300E Peppers  ATEX Cable Gland PF8026300E M63 EExeII IP66&IP68 BlackNylon oø40-48mm
PF8026300E Peppers  ATEX Cable Gland PF8026300E M63 EExeII IP66&IP68 BlackNylon oø40-48mm PF8026300E Peppers  ATEX Cable Gland PF8026300E M63 EExeII IP66&IP68 BlackNylon oø40-48mm
.

Cable Gland Type PF - (Single Compression Nylon Gland)

Peppers “PF” type glands, certified Increased Safety Ex e are suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Group II. They are manufactured from polyamide and provide a controlled pull resistant displacement seal on the cable outer sheath providing both Ex e & IP protection. The gland has been tested to IP66 & IP68 to 50 metres and is fully compliant with the Ex e standard with no reduced impact restriction. Available in black or blue, in a range of thread forms complete with an IP flat washer on metric entry threads.






Operating Temperature:M16-M63: -35°C to +95°C °
M12:         -20°C to +80°C
Materials:Polyamide
IP Rating:IP66 & IP68 (50 metres - 30 minutes)
Impact Resistance: 7Nm
Optional Accessories:Nylon Locknut / IP Washers
Options:Colour:  Black / Blue
Industrial Non-Ex version:
Omit “E” from part number

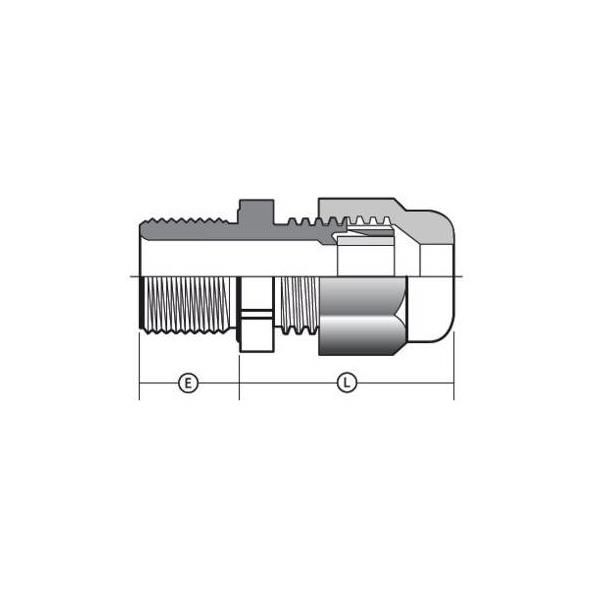

Gland
Size

Entry
Thread Size

Nominal
Protrusion
[L]

Cable
Sealing Range

ISO
Thread
Length
[E]

Part Number

12

M12 x 1.5

23.0

  4.0 - 6.5

  8.0

PF8021200E

16

M16 x 1.5

28.0

  5.0 - 8.0

10.0

PF8021650E

16

M16 x 1.5

28.0

  5.0 - 10.0

10.0

PF8021600E

20

M20 x 1.5

28.0

  7.0 - 12.0

10.0

PF8022050E

20

M20 x 1.5

28.0

10.0 - 14.0

10.0

PF8022000E

25

M25 x 1.5

36.0

10.0 - 14.0

10.0

PF8022550E

25

M25 x 1.5

36.0

12.0 - 18.0

10.0

PF8022500E

32

M32 x 1.5

42.0

16.0 - 25.0

10.0

PF8023200E

40

M40 x 1.5

52.5

22.0 - 32.0

10.0

PF8024000E

50

M50 x 1.5

54.5

28.0 - 38.5

12.0

PF8025000E

63

M63 x 1.5

55.5

40.0 - 48.0

12.0

PF8026300E

All dimensions in mm



Compliance Standard: EN 60079-0, EN 60079-7, EN 61241-0, EN 61241-1
IEC 60079-0, IEC 60079-7, IEC 61241-0, IEC 61241-1 & IEC 60529


Certification:
ATEX: II 2 GD Ex e II / Ex tD A21
IECEx: Ex e II / Ex tD A21
GOST-R: Ex e IIU
UL: ANSI/UL514B
CSA: CAN/CSA C22.2
VDE: DIN EN 50262 / VDE 0619
LLOYD’S: Enclosure Systems (Part 1B)

Certificate No.:
ATEX: LCIE 07ATEX6082X/02
IECEx: LCI 10.0008X
GOST: POCC FR M14.B00153
UL: E306665
CSA: E306665
VDE: 131210
LLOYD’S: 10/00056


Notes:
* The user should seek expert advice if intending to combine flammable and combustible dust in one environment/installation.
* Assembly instructions must be read prior to installation and adhered to in full.
* If used in a threaded entry, NPT versions may protrude more than “L” length due to engagement of tapered threads.
* Industrial Non-Ex versions are not supplied with IP thread sealing washer.
* Industrial Non-Ex versions are only available in Black.

For further details, please see DataSheet.
