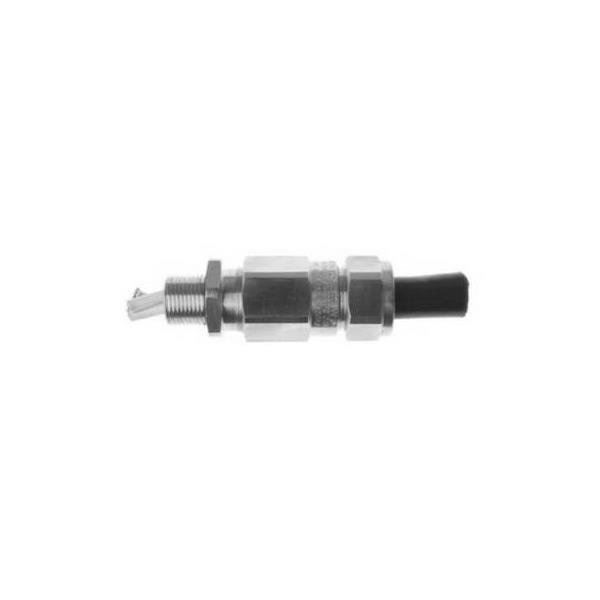

Ex Cable Gland CR-1B/NP/25/M25 NP-Brass

IP66&IP68@50m-7days EExde IIC

Varenr:
CR1BNP25M25
CR1BNP25M25 Peppers CR-1B/NP/25/M25 Ex Cable Gland CR-1B/NP/25/M25 NP-Brass IP66&IP68@50m-7days EExde IIC
CR1BNP25M25 Peppers CR-1B/NP/25/M25 Ex Cable Gland CR-1B/NP/25/M25 NP-Brass IP66&IP68@50m-7days EExde IIC
Lenker: | Guide | IECEx | ATEX | DoC | DataSheet | GA | Manual
Cable Gland Type CR (featuring "CROCLOCK®")

"CR"type glands, certified Flameproof Ex d, Increased Safety Ex e & Restricted Breathing Ex nR are suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, liB and lie. They provide a controlled Ex d & IP displacement seal on the cable inner sheath minimising damage to cables that exhibit "cold flow" characteristics, an environmental seal on the outer sheath and "CROCLOCK"", a unique non reversible multi clamping system for wire (W), braid (X) and tape (Z) armoured cables.
The gland maintains IP66 & IP68 to 2S metres and is deluge proof without the use of an additional seal or deluge boot. It is supplied with an IP O-ring seal as standard on metric entry threads. Options are available for use with lead sheath, LSOH cables and extreme temperature applications.

Compliance Standard: EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 61241-0, EN 61241-1, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1 & IEC 60529

Certification:
ATEX: II2 GD Exd IIC/ Ex eII/Ex tD A21 II3 GD Ex nR II
IECEx: Ex d IIC / Ex eII / Ex tD A21
GOST-R: ExdIICU / ExeIIU
CSA: Ex d IICI Ex ell Class I Zone 1; Class I Division 2, Groups A, B, C & D; Class II Division 2, Groups E, F & G; Class Ill, Enclosure Types 3, 4 & 4X
NEPSI: Ex d IICI Exe II
INMETRO: BR - Ex d IIC / Ex eII / Ex nR II / Ex tD A21
ABS: 1-1-417.7,4.8-3/1.7,4-8-3/13 and 4-8-4/27.5; MODU Rules 4-3-3/9
LLOYD'S: Enclosure Systems (Part 1B)
RMRS: Part XI of Rules for sea-going ships (ed.2008)

Certificate No.:
ATEX: BAS 01ATEX2271 X & SIRA 09ATEX1221 X
IECEx: SIR 07.0099X
GOST-R: POCC GB.r606.B00853
CSA: CSA 1356011
NEPSI: GYJ06189X
INMETRO: NCC 5877/09 X
ABS: 09-LD463991-PDA
LLOYD'S: 10/00056
RMRS: 09.00784.011

IP Rating: IP66 & IP68 (50 metres - 7 days), NEMA 4X & DTS01 1991

Operating Temperature:
Neoprene Seals -20°C to +85°C
Silicone Seals -60°C to + 180°C

Materials: Brass or Stainless Steel
Plating: Nickel - Zinc
