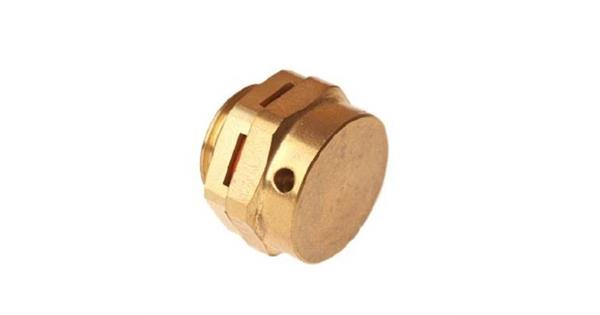

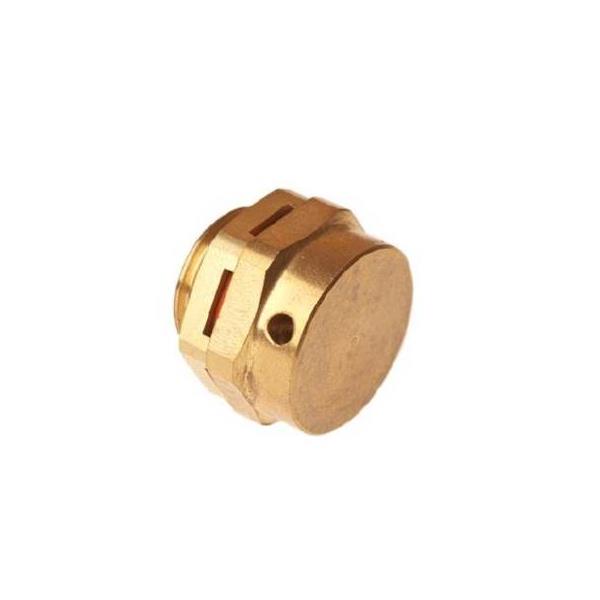

Ex Breather Drain Plug ACDP1BE/M16/10

IP66 EExe Brass w/castellated locknut

Varenr:
ACDP1BEM1610
ACDP1BEM1610 Peppers ACDP1BE/M16/10 Ex Breather Drain Plug ACDP1BE/M16/10 IP66 EExe Brass w/castellated locknut
ACDP1BEM1610 Peppers ACDP1BE/M16/10 Ex Breather Drain Plug ACDP1BE/M16/10 IP66 EExe Brass w/castellated locknut
Lenker: | ATEX | IECEx | DataSheet | ABS | Manual
.

Product Type ACDP - (Metallic Breather Drain)



Ex e  :  Ex ta  :  IP66  :  AEx e  :  AEx ta






“ACDP” Series Breather Drains allow the inside of the equipment to breathe with the outside atmosphere and provide a method of effectively draining any moisture from within the equipment.

ACDP series Breather Drains maintain Ex e method of protection and IP66 for IEC type applications. A Castellated Locknut and O-ring is supplied with every Breather Drain.


Compliance Standard:

EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-15, IEC 60079-31 & 60529 C22.2 (see certificate), UL514B, UL1203, ANSI/UL 60079-0/1/7, ISA 60079-31, UL 50E


Certification:ATEX:I M2 II 2GD Ex eb I Mb / Ex eb IIC Gb
/ Ex ta IIC Da
IECEx:Ex eb I Mb / Ex eb IIC Gb / Ex ta IIC Da
CEC - Canada:Class I Zone 1 Ex e IIC
/ Class II Zone 21 Ex tb IIIC
NEC - USA:Class I Zone 1 AEx e IIC Gb
/ Class II Zone 21 AEx tb IIIC Db
   EAC:Exe IU / Exe IIU
INMETRO -
Brazil:Exeb I Mb / Ex eb IIC Gb / Ex ta IIC Da
SAC - China:Ex e IIC
UKRAINE:Exe IU / Exe IIU
CCoE - India:Ex e IIC Gc
ABS:Specified ABS Rules
LLOYD'S:Enclosure Systems (Part 1B)
RMRS:Part XI of Rules for sea-going ships
(ed.2014)

Cert. No.:ATEX:SIRA09 ATEX3321X
IECEx:IECEx SIR 09.0132X
CEC - Canada:CSA 2310046
NEC - USA:CSA 2310046
EAC:RU C-GB.??06.?.00098
INMETRO -
Brazil:NCC 13.2189 X
SAC - China:NEPSI GYJ16.1407X
UKRAINE:UA.TR.047.C.0408-13 & 2937
CCoE - India:PESO P365300/8
ABS:14-LD1183401-PDA
LLOYD'S:10/00056(E1)
RMRS:14.02755.315



IP Rating:IP66 & NEMA 4X

Impact Resistance:20Nm (Aluminium 7Nm)

OperatingO-ring - None -100ºC to +400ºC
Temperature:O-ring - Nitrile -30ºC to +100ºC
O-ring - Silicone -60ºC to +200ºC

Materials:Brass, Stainless Steel or Aluminium

Plating:Electroless Nickel
Flow Rate:0.25 Litres per Hour










Example Part Numbering:ACDP 1 B E / NP / M20 / 10
(See below for details)

ACDPBreather Drain c/w Castellated Locknut
1No IP O-ring (0) - Nitrile (1) - Silicone (3)
BBrass (B) - Stainless Steel (S) - Aluminium (A)
EEx e certification including Marine Approvals
NPNickel Plated
M20M20 Male Entry Thread
10Entry Thread Length 10mm or 15mm


Dimension Data:


Thread Size:A/F:A/C [A]:Length [B]:Length [L]:Weight (kgs.):

M12 x 1.519.0  20.9 10 or 1512.00.032
M16 x 1.524.0  26.410 or 1512.00.052
M20 x 1.5 27.0  29.710 or 1512.0 0.065
M25 x 1.5 31.8   34.910 or 1512.0  0.097
M32 x 1.537.6 41.310 or 1512.00.107
1/2” NPT 28.6 31.415 12.0 0.075
3/4” NPT 33.0 36.3 15 12.0 0.107


All dimensions in mm / weight in kgs (for 10mm metric versions)


 Notes:
  • Assembly instructions must be read prior to installation and adhered to in full.
  • The ACDP flow rate was obtained from testing in an empty enclosure filled with water. The enclosure had no heat or pressure producing equipment inside. Flow rates in
    the field may vary depending on operational parameters and surrounding environmental conditions.
  • To maintain the specified IP rating, clearance holes must be in accordance with EN 62444 and the entry device should be suitably secured.
  • IECEx / ATEX versions are supplied as standard. If additional approvals are required they must be requested at time of order.
  • The standard O-ring material is nitrile. Other options are available upon request.
  • All Breather Drains are supplied with Castellated locknut as standard.
  • Aluminium versions are not suitable for Group I Mining application.


For further details, please refer to the attached Datasheet, Assembly Instructions (Manual), Certificates and other relevant documents.
