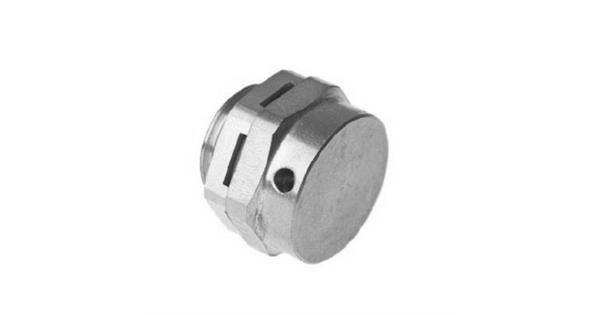

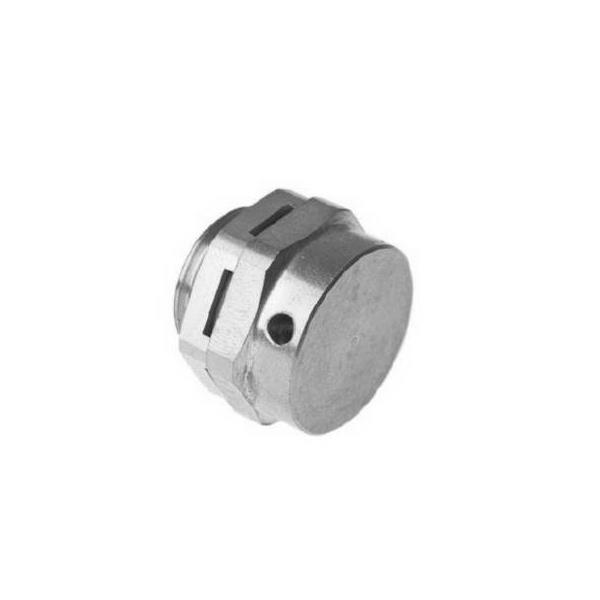

Ex Breather Drain Plug ACDP3BE/NP/M12/15
IP66 EExe NP-Brass w/castellated locknut
|
|
Product Type ACDP - (Metallic Breather Drain)
Ex e : Ex ta : IP66 : AEx e : AEx ta |
“ACDP” Series Breather Drains allow the inside of the equipment to breathe with the outside atmosphere and provide a method of effectively draining any moisture from within the equipment.
ACDP series Breather Drains maintain Ex e method of protection and IP66 for IEC type applications. A Castellated Locknut and O-ring is supplied with every Breather Drain.
Compliance Standard:
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-15, IEC 60079-31 & 60529 C22.2 (see certificate), UL514B, UL1203, ANSI/UL 60079-0/1/7, ISA 60079-31, UL 50E
| Certification: | ATEX: | I M2 II 2GD Ex eb I Mb / Ex eb IIC Gb |
| | / Ex ta IIC Da |
| IECEx: | Ex eb I Mb / Ex eb IIC Gb / Ex ta IIC Da |
| CEC - Canada: | Class I Zone 1 Ex e IIC |
| | / Class II Zone 21 Ex tb IIIC |
| NEC - USA: | Class I Zone 1 AEx e IIC Gb |
| | / Class II Zone 21 AEx tb IIIC Db |
| | EAC: | Exe IU / Exe IIU |
| INMETRO - | |
| Brazil: | Exeb I Mb / Ex eb IIC Gb / Ex ta IIC Da |
| SAC - China: | Ex e IIC |
| UKRAINE: | Exe IU / Exe IIU |
| CCoE - India: | Ex e IIC Gc |
| ABS: | Specified ABS Rules |
| LLOYD'S: | Enclosure Systems (Part 1B) |
| RMRS: | Part XI of Rules for sea-going ships |
| | (ed.2014) |
| | | |
| Cert. No.: | ATEX: | SIRA09 ATEX3321X |
| IECEx: | IECEx SIR 09.0132X |
| CEC - Canada: | CSA 2310046 |
| NEC - USA: | CSA 2310046 |
| EAC: | RU C-GB.??06.?.00098 |
| INMETRO - | |
| Brazil: | NCC 13.2189 X |
| SAC - China: | NEPSI GYJ16.1407X |
| UKRAINE: | UA.TR.047.C.0408-13 & 2937 |
| CCoE - India: | PESO P365300/8 |
| ABS: | 14-LD1183401-PDA |
| LLOYD'S: | 10/00056(E1) |
| RMRS: | 14.02755.315 |
| | | |
| IP Rating: | IP66 & NEMA 4X |
| |
| Impact Resistance: | 20Nm (Aluminium 7Nm) |
| |
| Operating | O-ring - None -100ºC to +400ºC |
| Temperature: | O-ring - Nitrile -30ºC to +100ºC |
| O-ring - Silicone -60ºC to +200ºC |
| |
| Materials: | Brass, Stainless Steel or Aluminium |
| |
| Plating: | Electroless Nickel |
| Flow Rate: | 0.25 Litres per Hour |
| Example Part Numbering: | ACDP 1 B E / NP / M20 / 10 |
| (See below for details) | |
| ACDP | Breather Drain c/w Castellated Locknut | |
| 1 | No IP O-ring (0) - Nitrile (1) - Silicone (3) | |
| B | Brass (B) - Stainless Steel (S) - Aluminium (A) | |
| E | Ex e certification including Marine Approvals | |
| NP | Nickel Plated | |
| M20 | M20 Male Entry Thread | |
| 10 | Entry Thread Length 10mm or 15mm | |
| | |
Dimension Data:
| Thread Size: | A/F: | A/C [A]: | Length [B]: | Length [L]: | Weight (kgs.): |
| | | | | | |
| M12 x 1.5 | 19.0 | 20.9 | 10 or 15 | 12.0 | 0.032 |
| M16 x 1.5 | 24.0 | 26.4 | 10 or 15 | 12.0 | 0.052 |
| M20 x 1.5 | 27.0 | 29.7 | 10 or 15 | 12.0 | 0.065 |
| M25 x 1.5 | 31.8 | 34.9 | 10 or 15 | 12.0 | 0.097 |
| M32 x 1.5 | 37.6 | 41.3 | 10 or 15 | 12.0 | 0.107 |
| 1/2” NPT | 28.6 | 31.4 | 15 | 12.0 | 0.075 |
| 3/4” NPT | 33.0 | 36.3 | 15 | 12.0 | 0.107 |
| | | | | | |
All dimensions in mm / weight in kgs (for 10mm metric versions)
Notes:
- Assembly instructions must be read prior to installation and adhered to in full.
- The ACDP flow rate was obtained from testing in an empty enclosure filled with water. The enclosure had no heat or pressure producing equipment inside. Flow rates in
the field may vary depending on operational parameters and surrounding environmental conditions. - To maintain the specified IP rating, clearance holes must be in accordance with EN 62444 and the entry device should be suitably secured.
- IECEx / ATEX versions are supplied as standard. If additional approvals are required they must be requested at time of order.
- The standard O-ring material is nitrile. Other options are available upon request.
- All Breather Drains are supplied with Castellated locknut as standard.
- Aluminium versions are not suitable for Group I Mining application.
For further details, please refer to the attached Datasheet, Assembly Instructions (Manual), Certificates and other relevant documents.
