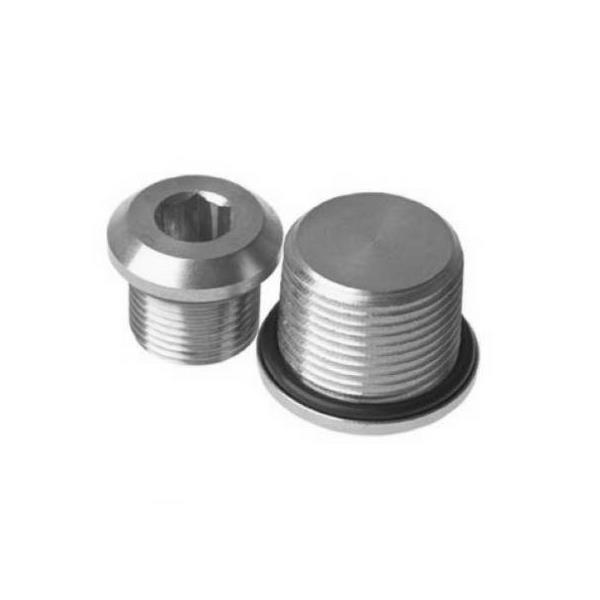

Ex Stopping Plug SPMH1SF/M25 SS316

IP66 & IP68 EEx d/e Stainless Steel 316

Varenr:
SPMH1SFM25
SPMH1SFM25 Peppers SPMH1SF/M25 Ex Stopping Plug SPMH1SF/M25 SS316 IP66 & IP68 EEx d/e Stainless Steel 316
SPMH1SFM25 Peppers SPMH1SF/M25 Ex Stopping Plug SPMH1SF/M25 SS316 IP66 & IP68 EEx d/e Stainless Steel 316
.

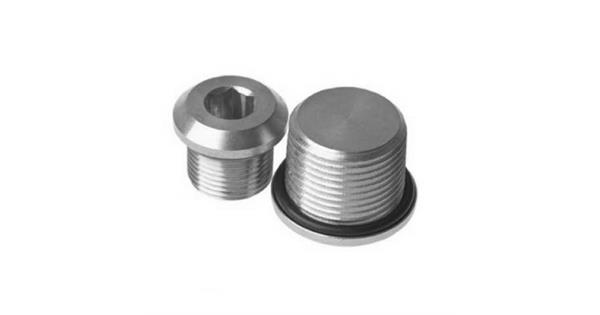

Stopping Plug SPMH & SPHH - (Metallic Dome Head & Hex Head Stopping Plug)



  Ex d / Ex e / Ex nR / Ex tb / IP66 / IP68 /

 Class I Div 1 / AEx e : AEx ta






"SPMH & SPHH" Series Certified Metallic Stopping (Blanking) Plugs provide a method of sealing unused entries in Ex equipment.

They maintain Ex d, Ex e, Ex tb and Ex nR methods of protection and IP66, IP68 for IEC type applications.
They are Class I Division 1, Class II Division 1, Class II and Class 1 Zone 1 approved for for NEC and CEC type applications whilst also maintaining Type 4X rating.


Compliance Standard:
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-15, IEC 60079-31 & IEC 60529 C22.2 (see certificate), UL514B, UL1203, ANSI/UL 60079-0/1/7, ISA 60079-31, UL 50E


Certification:ATEX:I M2 II 2GD Exd I Mb / Ex d IIC Gb /
Exe I Mb / Ex e IIC Gb / Ex tb IIIC Db /
II 3G Ex nR IIC Gc
IECEx:Ex d I Mb / Ex d IIC Gb / Exe I Mb /
Ex e IIC Gb / Ex tb IIIC Db / Ex nR IIC Gc
CEC - Canada:Class I Zone 1 Ex d IIC / Ex e IIC /
Class II Zone 21 Ex tb IIIC
Class I Division 1, Groups A, B, C & D
Class II Division 1, Groups E, F & G
Class III, Enclosure Type 4X
NEC - USA:Class I Zone 1 AEx d IIC Gb /
AEx e IIC Gb / Class II Zone 21
AEx tb IIIC Db
Class I Division 1, Groups A, B, C & D
Class II Division 1, Groups E, F & G
Class III, Enclosure Type 4X
   EAC:Exd IU / Exd IICU / Exe IU / Exe IIU /
ExnR IIU
INMETRO -
Brazil:Ex d I Mb / Ex d IIC Gb / Exe I Mb /
Ex e IIC Gb / Ex tb IIIC Db / Ex nR IIC Gc
SAC - China:Ex d IIC / Ex e IIC
UKRAINE:Exd IU / Exd IICU / Exe IU / Exe IIU
CCoE - India:Ex d IIC Gb / Ex e IIC Gc
ABS:Specified ABS Rules
LLOYD'S:Enclosure Systems (Part 1B)
RMRS:Part XI of Rules for sea-going ships
(ed.2014)

Cert. No.:ATEX:SIRA 09ATEX1320X &
SIRA 09ATEX4323X
IECEx:IECEx SIR 09.0131X
CEC - Canada:CSA 2310046
NEC - USA:CSA 2310046
EAC:RU C-GB.??06.?.00098
INMETRO -
Brazil:NCC 13.2189 X
SAC - China:GYJ16.1406X
UKRAINE:UA.TR.047.C.0408-13 & 2937
CCoE - India:PESO P365300/7 & P365300/12
ABS:14-LD1183401-PDA
LLOYD'S:10/00056(E1)
RMRS:14.02755.315



IP Rating:IP66 & IP68 (100 metres for 7 days) & NEMA 4X

Impact Resistance:20Nm (Aluminium 7Nm)

OperatingO-ring - None -100ºC to +400ºC
Temperature:O-ring - Nitrile -30ºC to +100ºC
O-ring - Silicone -60ºC to +200ºC

Materials:Brass, Stainless Steel or Aluminium

Plating:Electroless Nickel







Part Numbers:       SP MH  0   B   F
 HH  1   S
  3    A


Example Part Numbering:S P  M H  1 B F / N P / M 2 0
(See below for details)

SPStopping (Blanking) Plug
MHDome (Mushroom) Head (MH) / Hex Head (HH)
1No IP O-ring (0) - Nitrile (1) - Silicone (3)
BBrass (B) - Stainless Steel (S) - Aluminium (A)
FEx d & Ex e certification including Marine Approvals
NPNickel Plated
M20Male Thread

Optional Accessories:

IP Washers:
(N)Nylon (ACNSW)
(V)Fibre (ACFSW)
(H)PTFE (ACPSW)

(T)Earth Tag:
- Brass (A C B E T)
- Aluminium (A C A E T)
- St-Steel (A C S E T)

(L)Locknut:
- Brass (A C B L N)
- St-Steel (A C S L N)
- Aluminium (A C A L N)

(S)Serrated Washer:
- Stainless Steel (ACSSW)



Male threads are manufactured in accordance with:
• ISO Metric threads to ISO 965-1, ISO 965-3, BS3643 and IEC 60423
• NPT and NPS threads are in accordance to ANSI B1.20.1
• PG threads to DIN40430
• ET threads to Imperial Conduit BS31
• ISO Pipe Parallel to ISO 228 and BS2779 (BSPP, G, R, PF & Tpy 6)
• ISO Pipe Taper to ISO 7-1 and BS21 (BSPT, Gc, Gk, Rk, PT & Kmpy 6)


 Notes:
• Assembly instructions must be read prior to installation and adhered to in full.
• For Ex d applications female threads must comply with clause 5.3 of IEC 60079-1.
• For Ex nR applications parallel entry threads must be installed with a suitable entry thread seal.
• ATEX / IECEx versions are supplied as standard.
• Additional approvals must be requested at time of order.
• Where applicable, the standard O-ring material is nitrile. Other options are available upon request.
• Aluminium versions are not suitable for Group I Mining applications.


For further details, please refer to the attached Datasheet, Assembly Instructions (Manual), Certificates and other relevant documents.
