Ex 90° RotatingAdaptor RAMF900BF/M20/M20

IP66 & IP68@100m/7d Ex-db-eb-ta-nr

Varenr:
RAMF900BFM20M20
RAMF900BFM20M20 Peppers RAMF900BF/M20/M20 Ex 90° RotatingAdaptor RAMF900BF/M20/M20 IP66 & IP68@100m/7d Ex-db-eb-ta-nr
RAMF900BFM20M20 Peppers RAMF900BF/M20/M20 Ex 90° RotatingAdaptor RAMF900BF/M20/M20 IP66 & IP68@100m/7d Ex-db-eb-ta-nr
Lenker: | ATEX | IECEx | Manual | DataSheet
PRODUCT TYPE RA**90

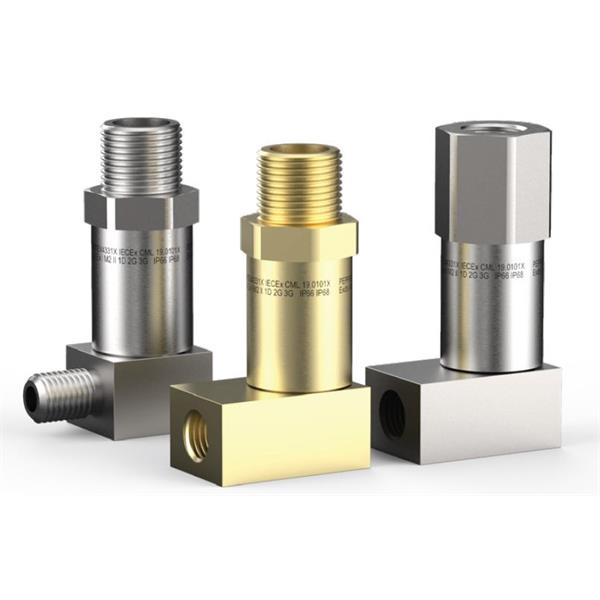

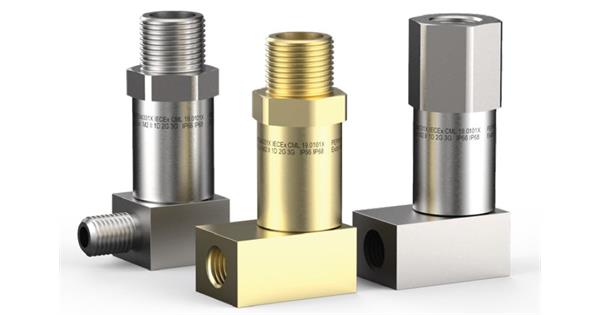

Metallic 90 Degree Rotating Adaptors and Reducers


Ex db : Ex eb : Ex nR : Ex ta : IP66 : IP68




“RA**90” Series Dual Certified Right Angled Rotating Adaptors are designed to protect cables when installed in confined spaces where the cable may otherwise be subject to excessive bending and / or stress. The series is available with Male/Male, Male/Female or Female/Female connection threads. They are approved for Ex db, Ex eb, Ex ta and Ex nR methods of explosion protection whilst maintaining IP66, IP68 for IEC type applications.


IP Rating:IP66 & IP68 (100 metres for 7 days)

OperatingTemperature:Washer - None -60°C to +135°C
Washer - Fibre -40°C to +95°C
   Washer - Nylon -40°C to +135°C
Washer - PTFE -60°C to +135°C

Materials:Brass or Stainless Steel

Plating:Electroless Nickel



Part Numbers:      RA     MF90     0      B    F
  MM90     S
  FF90


Example Part Numbering:  RA MM 900 BF / NP / M20 / M20
(See below for details)

RARotating Thread converting Adaptor/Reducer
MF90Male / Female (MF90)
Male / Male (MM90)
Female/Female (FF90)
0No IP O-ring
B(B) Brass
(S) Stainless Steel
FEx db & Ex eb certification

Options:K, V or H Locknut & Nylon (K) - Fibre (V) -
or PTFE (H) IP Washer
Options:SIncluding Serrated Washer
Options:1Quantity per kit
Options:NP(NP) Nickel Plated

M20Male Entry Thread
M20Female Entry Thread


Optional Accessories:

IP Washers:(N) Nylon (A C N S W)
(J) Fibre (A C F S W)
(Z) PTFE (A C P S W)

Earth tag:(T) Brass (A C B E T) - St-Steel (A C S E T)

Locknut:(L) Brass (A C B L N) - St-Steel (A C S L N)

Serrated Washer:(S) Stainless Steel (A C S S W)



Compliance Standard:

EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-15, IEC 60079-31
& IEC 60529


Certification:

ATEX:I M2 II 1D 2G Ex db I Mb / Ex db IIC Gb / Ex eb I Mb
/ Ex eb IIC Gb / Ex ta IIIC Da / II 3G Ex nR IIC Gc
IECEx:Ex db I Mb / Ex db IIC Gb / Ex eb I Mb / Ex eb IIC Gb
/ Ex ta IIIC Da / Ex nR IIC Gc


Certificate No.:

ATEX:CML 19ATEX1330X & CML 19ATEX4331X
IECEx:IECEx CML 19.0101X


Male and Female Thread References and Size information can be found on page 40 of our product catalogue.
Adaptor and Reducer size information is available on request.
Male and female threads are manufactured in accordance with:-


• ISO Metric threads to ISO 965-1, ISO 965-3, BS3643 and IEC 60423
• NPT and NPS threads are in accordance to ANSI B1.20.1
• PG threads to DIN40430
• ET threads to Imperial Conduit BS31
• ISO Pipe Parallel to ISO 228 and BS2779 (BSPP, G, R, PF & Tpy 6)
• ISO Pipe Taper to ISO 7-1 and BS21 (BSPT, Gc, Gk, Rk, PT & Kmpy 6)
