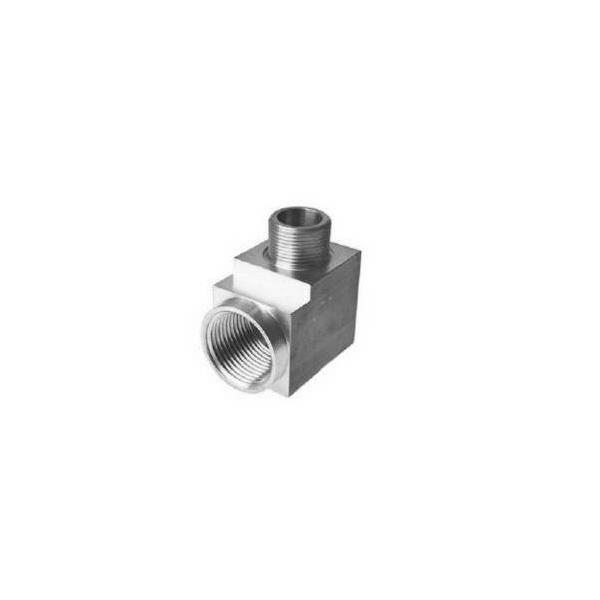

ARMR & ARFR Series Metallic 90 Degree Adaptors



“ARMR” & “ARFR” Series Dual Certified Right Angled Adaptors are designed to p r otect cables when installed in confined spaces where the cable may otherwise be subject to excessive bending and or stress. The Series is available with Male/Female or Female/Female connection threads. They are approved for Ex d, Ex e, Ex tb and Ex nR methods of explosion protection whilst maintaining IP66, IP68 for IEC type applications and Class I Division 1, and NEMA 4X
for NEC/CEC type applications. All external parallel threads are fitted with a nitrile O-ring as standard.



Compliance Standard:
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-15, IEC 60079-31 & 60529,



Certification:
ATEX: I M2 II 2GD Ex d I&IIC Mb Gb / Ex e I&IIC Mb Gb/ Ex tb IIIC Db / II 3G Ex nR IIC Gc
IECEx: Ex d I&IIC / Ex e I&IIC / Ex tb IIIC / Ex nR IIC
CSA: Class I, Division 1 & 2; Groups A, B, C & D, Class II, Groups E, F & G



Certificate No.
ATEX: SIRA 10ATEX1132U & SIRA 10ATEX4133U
IECEx: SIR 10.0068U
CSA: 2310046



IP Rating: IP66 & IP68 (100 metres for 7 days) & NEMA 4X 6P
Impact Resistance: 20Nm (Aluminium 7Nm)



Temperature:
O-ring - None: -100°C to +400°C
O-ring - Silicone: -60°C to +200°C
O-ring - Nitrile: -30°C to +100°C



Materials: Brass, Stainless Steel or Aluminium
Plating: Nickel - Zinc
