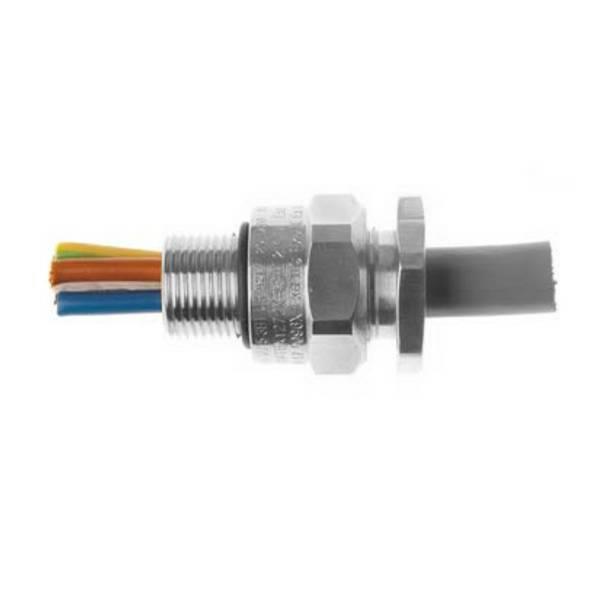

Ex Cable Gland A3LSF/16/M20, SS316

IP66&IP68@50m EExdeIIC oØ 4,0-8,4 mm

Varenr:
A3LSF16M20
A3LSF16M20 Peppers A3LSF/16/M20 Ex Cable Gland A3LSF/16/M20, SS316 IP66&IP68@50m EExdeIIC oØ 4,0-8,4 mm
A3LSF16M20 Peppers A3LSF/16/M20 Ex Cable Gland A3LSF/16/M20, SS316 IP66&IP68@50m EExdeIIC oØ 4,0-8,4 mm

Cable Gland Type A - (Single seal Gland designed for use with Unarmoured Cable)



Ex d : Ex e : Ex nR : Ex ta : IP66 : IP68
Class I Div 2 : AEx e : AEx ta





“A” type glands are certified Flameproof Ex d, Increased Safety Ex e, Restricted Breathing Ex nR and Dust Protected Ex ta. They are suitable for use in Zone 1 and 2 for Gas Groups IIA, IIB and IIC and additionally for use in Zones 20, 21 and 22 for Dust Groups IIIA, IIIB and IIIC. Commonly referred to as “stuffing glands” they provide a controlled pull resistant environmental displacement seal on the cable outer sheath, minimising damage to cables that exhibit “cold flow” characteristics.

The gland maintains IP66 & IP68 to 50 metres. It is supplied with an IP O-ring seal as standard on metric entry threads. Options are available for use with LSOH cables and extreme temperature applications.


Compliance Standard:
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31,
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31 & IEC 60529,
C22.2 (see certificate), CAN/CSA 60079-0/1/7, UL514B, UL1203,
UL2225, UL50E, ANSI/UL 60079-0/7, ISA 60079-31


Certification:
ATEX:II 1D 2G Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da
II 3G Ex nR IIC Gc
IECEx:Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da
CEC Canada:Class I Zone 1 Ex d IIC / Ex e II
(except size 12)Class I Division 2, Groups A, B, C & D
Class II Division 1, Groups E, F & G
Class III, Enclosure Type 4X
NEC USA:Class I Zone 1 AEx e IIC Gb /
Class II Zone 20 AEx ta IIIC Da
Class I Division 2, Groups A, B, C & D
Class II Division 1, Groups E, F & G
Class III, Enclosure Type 4X
EAC:Exd IICU / Exe IIU / ExnR IIU
INMETRO Brazil:Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da /
   Ex nR IIC Gc
SAC China:Ex d IIC / Ex e IIC
UKRAINE:Ex d IIC X / Ex e II X
CCoE:Petroleum Rules 2002 (PESO)
ABS:Specified ABS Rules
LLOYD’S:Enclosure Systems (Part 1B)
RMRS:Part XI of RS Rules for the classification &
construction of sea-going ships (ed. 2014)


Certificate No.:
ATEX:SIRA 01ATEX1272X & SIRA 09ATEX1221X
IECEx:IECEx SIR 07.0096X
CEC Canada:CSA 1356011
NEC USA:CSA 2627370
EAC:RU C-GB.??06.?.00098
INMETRO Brazil:NCC 13.2012 X
SAC China:NEPSI GYJ16.1399X
UKRAINE:UA.TR.047.C.0408-13 & 2937
CCoE India:PESO P365300/2 & P365300/5
ABS:14-LD463991-1-PDA
LLOYD’S:10/00056(E1)
RMRS:14.02755.315



IP Rating:IP66 & IP68 (50 metres - 7 Days), Type 4X
Operating
Temperature:Neoprene Seals -35ºC to +90ºC
Silicone Seals -60ºC to +180ºC
Materials:Brass, Stainless Steel or Aluminium
Plating:Electroless Nickel




Cable Gland Selection Table:


GlandEntryThreadCableNominalDim.Weight
SizeThreadLengthAcceptanceProtrusionAcrossKgs.
Size[B]Range [D] Length [L]Corners [A]

12M12 x 1.5  16  0.9 - 6.0    33  21.00.038
12M16 x 1.5  16  0.9 - 6.0    33  28.00.068
12M20 x 1.5  16  0.9 - 6.0    33  28.00.082
16M16 x 1.5  16  4.0 - 8.4    33  28.00.097
16M20 x 1.5  16  4.0 - 8.4    33  28.00.104
20SM20 x 1.5  16  7.2 - 11.7    33  28.00.102
20M20 x 1.5  16  9.4 - 14.0    33  33.00.127
25M25 x 1.5  1613.5 - 20.0    33  41.40.166
32M32 x 1.5  1619.5 - 26.3    33  50.60.244
40M40 x 1.5  1623.0 - 32.2    37  60.50.396
50SM50 x 1.5  1628.1 - 38.2    37  71.50.558
50M50 x 1.5  1633.1 - 44.1    37  71.50.438
63SM63 x 1.5  1939.2 - 50.1    37  88.00.832
63M63 x 1.5  1946.7 - 56.0    37  88.00.664
75SM75 x 1.5  1952.1 - 62.0    37  99.00.924
75M75 x 1.5  1958.0 - 68.0    37  99.00.714
80M80 x 2  2562.2 - 72.0    50115.21.514
85M85 x 2  2569.0 - 78.0    50115.21.332
90M90 x 2  2574.0 - 84.0    50125.71.622
100M100 x 2  2582.0 - 90.0    50125.71.523


Alterativ Gland Size and Entry Thread Size in NPT:

Gland Size    Entry Thread Size NPT

   120375 NPT (3/8”) or 050 NPT (1/2”)
   16050 NPT (1/2”) or 075 NPT (3/4”)
   20S050 NPT (1/2”) or 075 NPT (3/4”)
   20050 NPT (1/2”) or 075 NPT (3/4”)
   25075 NPT (3/4”) or 100 NPT (1”)
   32100 NPT (1”) or 125 NPT (1 1/4”)
   40125 NPT (1 1/4”) or 150 NPT (1 1/2”)
   50S150 NPT (1 1/2”) or 200 NPT (2”)
   50200 NPT (2”)
   63S200 NPT (2”) or 250 NPT (2 1/2”)
   63250 NPT (2 1/2”)
   75S250 NPT (2 1/2”) or 300 NPT (3”)
   75300 NPT (3”)
   80300 NPT (3”) or 350 NPT (3 1/2”)
   85300 NPT (3”) or 350 NPT (3 1/2”)
   90350 NPT (3 1/2”) or 400 NPT (4”)
100350 NPT (3 1/2”) or 400 NPT (4”)


  1
  2
Part Numbers:      A   3  L  B  F
  4  S
    A


Example Part Numbering:  A 3 L B F / N P / 2 0 / M20
(See below for details)

AType of gland featuring controlled displacement
sealing
(2) Neoprene Seals (-35ºC to +90ºC)
3(3) Silicone Seals (-60ºC to +180ºC)
(1) Neoprene/Lead
(4) Silicone/Lead
LPeppers Standard Designation
B(B) Brass
(S) Stainless Steel
(A) Aluminium
FMultiple Certification

Options:C(C) PVC Shroud
Options:(P) PCP Shroud
Options:(3) Silicone LSOH Shroud
Options:K, V or H (K) Locknut & Nylon, (V) Fibre IP Washer
or (H) PTFE IP Washer
Options:TIncluding Earth Tag
Options:SIncluding Serrated Washer
Options:1Quantity per kit
Options:NP(NP) Nickel Plated or (ZP) Zinc Plated

20Gland shell size
M20M20 x 1.5mm Male Entry Thread


 Optional Accessories:

Locknut:Brass (A C B L N)
Brass Nickel Plated (A C B L N / N P)
Stainless Steel (A C S L N)
Aluminium  (A C A L N)

Earth tag:Brass (A C B E T)
Brass Nickel Plated (A C B E T / N P)
Stainless Steel (A C S E T)
Aluminium (A C A E T)

IP Washers:Nylon (A C N S W) (-40° to +95°C)
Fibre (A C F S W) (-40° to +135°C)
PTFE (A C P S W) (-200° to +260°C)
(see note 3 below)

Serrated Washers:Stainless Steel (A C S S W)

Shrouds:PVC (A C S P V C)  (-25° to +70°C)
PCP (A C S P C P) (-30° to +100°C)
LSOH (A C S S I O) (-60° to +200°C)


Notes:

Gland size does not necessarily equate to the entry thread size.
The IP O-ring seal is only available on metric entry threads.
IP washers can be supplied for tapered entry threads.
Dimensions (A) & (B) may differ for glands with non metric entry
threads. Please refer to our “Thread Reference Tables” for specific
dimensions.
Assembly instructions must be read prior to installation and adhered
to in full.
Peppers supplies cable glands with parallel entry threads that
conform to the flameproof threaded joint requirements of IEC/EN
60079-1 and other equivalent standards.
They usually incorporate a thread run out according to the available
machining techniques and will not have a full form thread for the
entire length. Peppers Cable Glands Limited will not be held
responsible for clients’ installations where this has not been taken
into account.
When selecting IP Washer & Shroud material for use with glands,
please be aware of the accessories temperature range to ensure they
are suitable for the intended installation.
Where approval in addition to ATEX, IECEx and CSA is required,
this must be clearly requested at time of enquiry / order.




For further details, please refer to the attached Datasheet, Assembly Instructions (Manual), Certificates and other relevant documents.
