* Her er du nå: Marin Supply AS   >   Produkter   >   FESTE- OG BUNTEMATERIELL   >   Feste- og buntemateriell Plast   >   Strips i Plast   >   Natural Cable Ties 3,6 x 140 mm

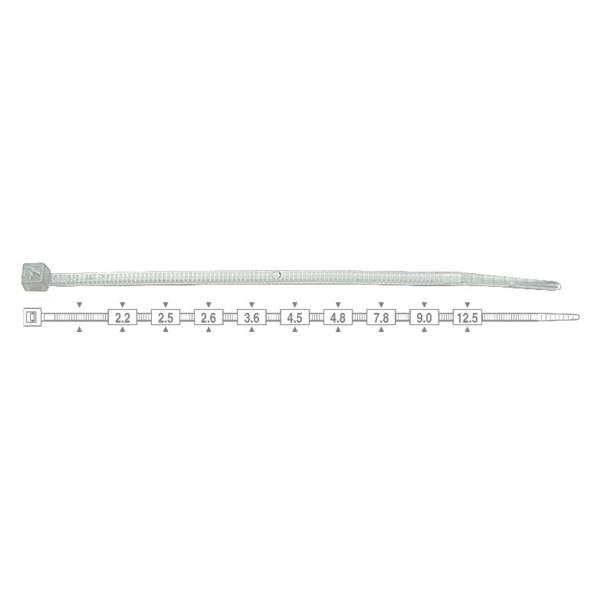

Natural Cable Ties 3,6 x 140 mm

Polyamide 6.6 (100 pcs/pack)

Varenr:
5209
5209 Elematic Natural Cable Ties 3,6 x 140 mm Polyamide 6.6 (100 pcs/pack)
5209 Elematic Natural Cable Ties 3,6 x 140 mm Polyamide 6.6 (100 pcs/pack)
Lenker: | DataSheet
Skriv ut... |  Tips en venn...
Produktinfo Tilbehør (0) Alternativer (0)

NYLON CABLE TIES PA 6.6

The standard cable ties are produced exclusively in Polyamide 6.6 to avoid problems with separation of material (e.g., metals) during recycling or interference with electronic equipment.
The black cable ties are added with carbon black that gives an UV resistance for outside applications.






Applications:

• Electrical installations
• Industrial wiring
• Automotive
• Panel building

Benefits:

• Bent rounded tip for an easier insertion through the head of the cable ties
• Rounded edges for the safest application
• Low friction coefficient of the material

Characteristics:

Raw material:Polyamide 6.6
Halogen-free
Humidity absorption:2,7% (50% relative humidity)
Working temperature:-40°C ÷ 85°C
Installation temperature:-10°C ÷ 60°C
Flammability rating:UL 94 class V2
Resistance to
external agents:High resistance to aromatic solvents, oils,
greases, oil derivatives.
Good resistance to bases.
Limited resistance to acids.
Not resistant to phenols and to chloride solvents.

Approvals / Certificates:

Compliant with norm CEI EN 62275

Ordering Details:


DimensionsCodeCodeØ BundleTensileTensilePcs.*) Pcs.
W x L (mm)NaturalBlackmax (mm)strengthstrengthper/per/
(kg)(N)BagCarton

2,2 x  755 2 0 15 2 0 9  15    6,12  6010020.000
2,5 x  985 2 0 35 3 0 3  21    8,16  8010015.000
2,5 x 1355 2 0 55 3 0 5  32    8,16  8010012.000
2,6 x 1605 2 0 65 3 0 6  40    8,16  8010010.000
2,6 x 2005 2 0 75 3 0 7  52    8,16  80100  8.000

3,5 x 1405 2 0 95 3 0 9  32  18,36180100  7.000
3,5 x 2005 2 1 45 3 1 4  50  18,36180100  7.000
3,5 x 2905 2 1 05 3 1 0  80  18,36180100  4.500
3,5 x 3705 2 0 85 3 0 8103  18,36180100  4.000

4,5 x 1205 2 1 25 3 1 2  24  22,44220100  8.000
4,5 x 1605 2 1 15 3 1 1  40  22,44220100  6.000
4,8 x 1785 2 1 35 3 1 3  45  22,44220100  5.000
4,5 x 2005 2 1 55 3 1 5  50  22,44220100  4.000
4,8 x 2505 2 1 65 3 1 6  68  22,44220100  4.500
4,5 x 2905 2 1 75 3 1 7  78  22,44220100  3.500
4,5 x 3605 2 1 95 3 1 9100  22,44220100  3.000
4,8 x 3905 2 1 85 3 1 8106  22,44220100  5.000
4,5 x 4305 2 2 05 3 2 0115  22,44220100  5.000

7,8 x 1805 2 2 35 3 2 3  45  55,08540100  2.500
7,8 x 2405 2 2 55 3 2 5  63  55,08540100  2.000
7,8 x 3005 2 2 65 3 2 6  80  55,08540100  1.500
7,5 x 3655 2 2 75 3 2 7100  55,08540100  1.500
7,5 x 4505 2 2 95 3 2 9130  55,08540100  2.500
7,5 x 5405 2 3 15 3 3 1158  55,08540100  2.000
7,5 x 7505 2 3 35 3 3 3220  55,08540100  1.200

9,0 x 7805 2 3 45 3 3 4233  71,40700100  1.000

12,5 x 2255 2 3 55 3 3 557110,001.080  50  2.000
12,5 x 5005 2 3 75 3 3 7143110,001.080  50  1.000
12,5 x 7205 2 3 95 3 3 9213110,001.080  50     600
12,5 x 8505 2 4 15 3 4 1255110,001.080  50     600
12,5 x 1.0005 2 4 35 3 4 3302110,001.080  50     500



The nominal dimensions can slightly change according to the utilized mould.

*) For ordering cable ties in full cartons, please add "CART" to the article code.
    (e.g.: "NNNN CART")



Resistance to chemical agents of polyamide 6.6:


Chemical agent:Concentrate:Result:

Acetaldehyde - aqueous solution  40%D
Acetamide - aqueous solution  50%B
Acetic acid - concentrated   -P
Acetic acid - water solution  10%P
Acetic anhydride - concentrated    -S
Acetic ether100%B
Acetone100%B
Acrylonitrile100%B
Aluminium chloride - water solution  10%B
Aluminium sulphate - aqueous solution  10%B
Ammonia  10%B
Ammonia - gaseous   -L
Ammonium hydroxide - aqueous solution  10%B
Amyl acetate100%B
Amyl alcohol100%B
Aniline100%D

Barium chloride - water solution  10%B
Benzaldehyde100%L
Benzene100%B
Benzoic acid - a saturated aqueous solution   -D
Benzyl alcohol100%L
Bichloride of mercury - aqueous solution    6%P
Bitumen   -D
Boric acid - water solution  10%D
Butane   -B
Butyl acetate100%B
Butyl alcohol100%D
Butyl phthalate   -B
Butyric acid100%D

Calcium chloride - water solution  10%B
Calcium chloride - water solution  20%S
Camphor100%B
Carbon disulphide100%B
Carbon tetrachloride   -B
Caustic Soda - aqueous solution    5%B
Caustic Soda - aqueous solution  10%B
Caustic Soda - aqueous solution  50%D
Chlorine water   -D
Chlorobenzene   -B
Chloroform100%P
Chrome - aqueous solution    5%D
Chromic acid - water solution    1%D
Chromic acid - water solution  10%P
Citric acid - water solution  10%L
Clorobromometano   -D
Copper salts - aqueous solution  10%B
Copper sulphate - aqueous solution  10%B
Cyclohexane100%B
Cyclohexanol100%B

Decalino   -B
Diacetone alcohol   -B
Diethanolamine   -B
Dimethylformamide100%B

Ethyl alcohol  96%D
Ethyl chloride100%D
Ethyl ether100%B
Ethylene dichloride   -B

Ferric chloride - water solution  10%B
Formaldehyde - aqueous solution  30%B
Formamide   -D
Formic acid - water solution  10%P
Formic acid - water solution  85%S

Gaseous Chlorine100%P
Glycol butyl100%D
Glycol ether   -B

Heptane   -B
Hexane   -D
Hydrochloric acid - water solution    2%L
Hydrochloric acid - water solution  10%P
Hydrochloric acid - water solution  36%S
Hydrogen peroxide - aqueous solution    0,5%L
Hydrogen peroxide - aqueous solution    1%P
Hydrogen peroxide - aqueous solution    3%P
Hydrogen peroxide - aqueous solution  30%P
Hydrogen sulphide - saturated aqueous solution   -P

Isooctane   -B
Isopropyl alcohol   -D
Lactic acid - water solution  10%D
Lactic acid - water solution  90%P
Lead acetate - water solution   10%D
Lead stearate100%B

Magnesium chloride - water solution  10%B
Magnesium hydroxide  10%B
Magnesium salts - aqueous solution  10%B
Mercury   -B
Methyl acetate100%B
Methyl alcohol100%D
Methyl chloride100%L
Methyl ethyl ketone   -B
Methyl isobutyl ketone   -B
Mineral oil   -B

Naphthene   -B
Nitric acid   -P
Nitrobenzene100%D
Nitromethane100%D

Octyl-phthalate   -B
Oleic acid100%B
Oxalic acid - water solution  10%D
Ozone   -P

Perchloroethylene   -P
Petrol   -B
Phenol - aqueous solution   -S
Phthalic acid - solution acquosasatura   -D
Phthalic acid - water solution  10%P
Potassium bromide - water solution  10%D
Potassium carbonate100%B
Potassium hydroxide - aqueous solution    5%B
Potassium hydroxide - aqueous solution  10%B
Potassium hydroxide - aqueous solution  50%D
Potassium nitrate - aqueous solution  10%B
Propyl alcohol   -D

Salicylic acid100%B
Sodium bisulfate - aqueous solution  10%B
Sodium Bromide - aqueous solution  10%D
Sodium carbonate - aqueous solution  10%B
Sodium chloride - water solution  10%B
Sodium hypochlorite - aqueous solution   -B
Sodium nitrate - aqueous solution    5%P
Sodium nitrate - aqueous solution  10%B
Sodium phosphate - aqueous solution  10%B
Sodium sulfate - aqueous solution  10%B
Sulfuric acid - aqueous solution    2%L
Sulfuric acid - aqueous solution  10%P
Sulfuric acid - concentrated  98%S

Tartaric acid   -D
Tartaric acid - water solution  10%B
Thionyl chloride   -P
Trichloroethylene (Trichloroethylene)   -D

Vinyl chloride100%B

Water (sea, river, drinking distilled)   -B

Zinc chloride  10%D
Zinc oxide   -B


Results:

B = Good resistance without significant variations in weight and/or volume.
D = Discrete resistance with significant variations in weight and/or volume resulting from prolonged contact.
L = Limited resistance: it is possible to use the material in case of short contact.
P = Poor resistance; the material is strongly attacked.
S = Soluble!
