Exia Led Safety Torch Adalit L.3000POWER
IP67 Zone 0/20 Rechargeable model
|
|
Adalit L.3000 POWER - Rechargeable Safety Torch for Ex Zone 0 / 20
with Swivelling Head and Digital Display
Features:
- 3 LEDs of 135 lumens each with different light beams
- LedEngine technology with step light system
- Two button switches of soft touch material, ergonomic and oversized in order to guarantee easy pushing
- 3 different burning intensities in order to select in every moment the remaining burning time
- Battery level indication in hours and minutes by means of a digital display

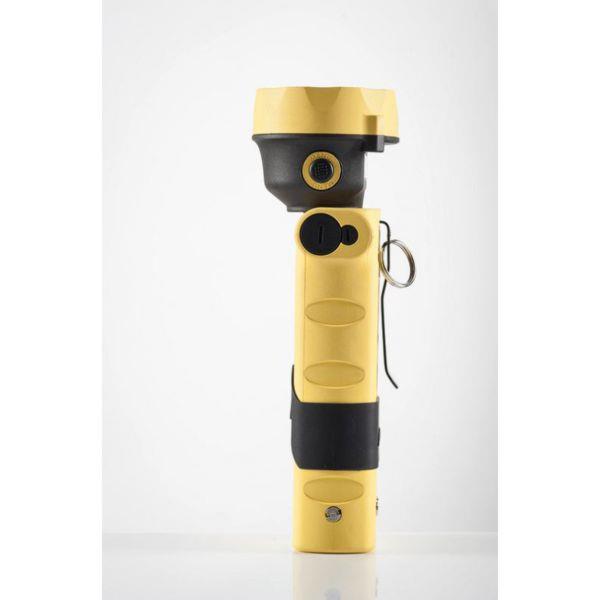

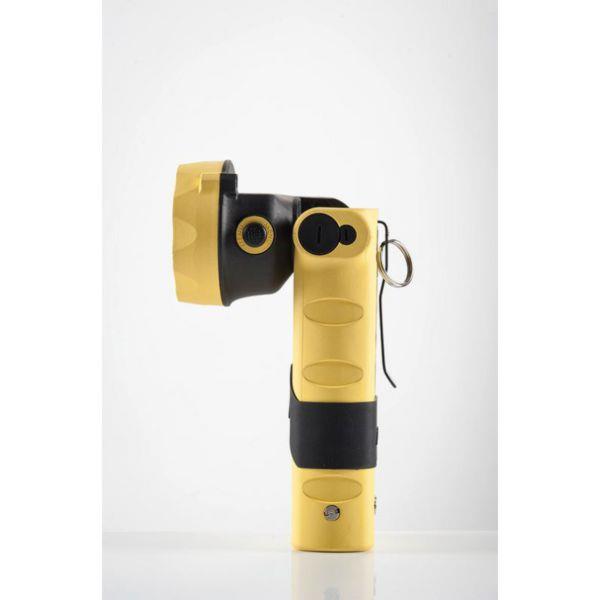

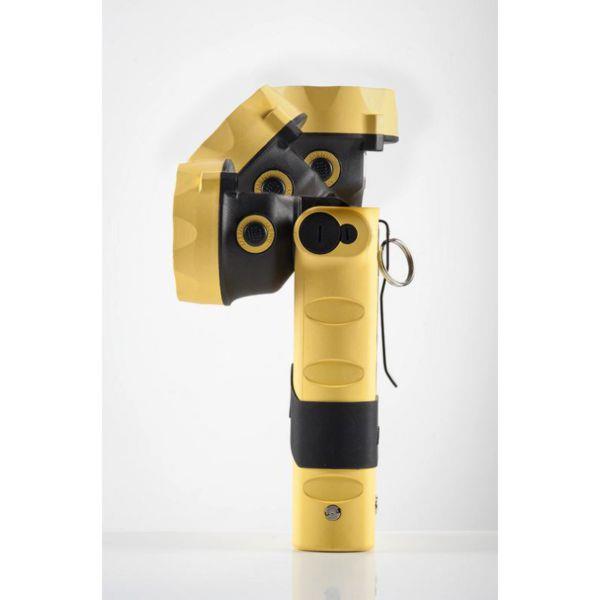

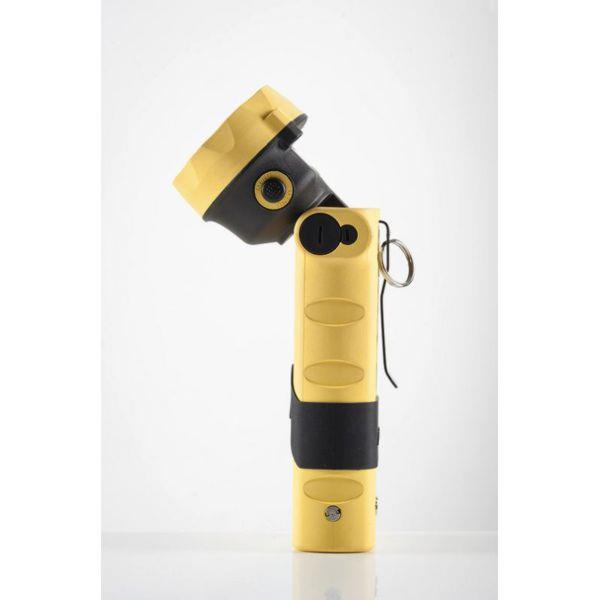

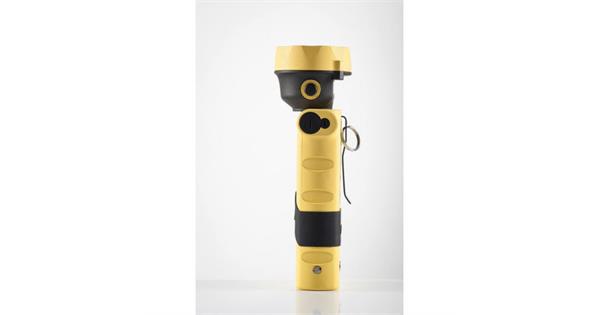

- Swivelling head with 3 positions 0º | 45º | 90º
- Easy maintenance
- Stroboscopic function
- Red or yellow cone for signalling available
- Straight or right angle
- Chargers for 1, 2, 3 or 5 torches available
Adalit L-3000 POWER torch is a high performance professional safety torch with a large digital display, swivelling head and an elegant design.
Its revolutionary optic combines a powerful and bright spot light with our unique flood and step light system.
|
ATEX: |
II 1G Ex ia IIC T4 Ga |
II 1D Ex ia IIIC T85ºC Da |
GAS ZONE 0 | 1 | 2 |
DUST ZONE 20 | 21 | 22 |
|
Ingress protection: | IP67 |
Weight: | 500 gr. (included battery) |
Measures: | Straight: 22,5 cm x 7 cm. Ø |
| Right angle: 18,5 cm x 7 cm. Ø |
Burning time: | 4 h at high intensity |
| 6 h at medium intensity |
| 8 h at low intensity |
Torch body material: | Thermoplastic resin with high resistance to impacts, |
| extreme temperatures and corrosive substances |
Light source: | 3 high intensity LEDs with 135 lm. each |
Battery: | Rechargeable Li-ion battery 3,7 V (IL3R) |
Low Battery | |
Warning: | Blinking signal of the main LED 15 min. before |
| running out of battery |
On/Off switch: | Push button switch of soft touch material, placed on |
| the side to guarantee easy finding and pushing with |
| gloves |
Battery Level Indication:
The battery level indicator shows the remaining burning time in hours and minutes . |
|
|
|
Automatic Power: |
|
|
|
The Adalit IL-3000 torch integrates an automatic power device that helps localizing it when charging. |
When a power failure to the charger occurs or the torch is taken from the charger, the torch switches on automatically remaining in this state up to 4 hours. |
|
Main Features:
- LedEngine technology with a step light system.
- Only focused light on, “Booster” function to illuminate long distances with greater penetrating light beam.
- Two button switches of soft touch material, ergonomic and oversized in order to guarantee easy pushing.
- 3 different burning intensities in order to select in every moment the remaining burning time.
- Battery level indication in hours and minutes by means of a digital display.
- Swivelling head with 3 positions: 0º | 45º | 90º
- Torch body made of high resistance thermoplastic resin to the impacts, extreme temperatures and corrosion.
- Best ATEX certificate acc. to zone 0.
First Steps:
Before using the torch for the first time, it is highly recommended to charge the battery completely.
NB: In order to get the maximum perfomance and life span of the battery, a complete discharge/charge cycle should be done at least once per month.
The user can activate:
- The main LED - all the power is gathered in this LED, “Booster Function” to illuminate long distances with a greater penetrating light beam.
- The main LED and simultaneously the two auxiliary LEDS located on the sides of the optic.
- The main LED in strobe function. Five different strobe modes can be activated.
- The user can modify the burning time using the MENU button.
| |
On / Off Button: | |
First push: The main LED - all the power is gathered in this LED, “Booster Function” to illuminate long distances with a greater penetrating light beam. | |
Second push: The main LED and the two auxiliary LEDS on the side of the optic get on. The beam light is more gentle and uniform. Due to the special design of the LedEngine Power optic the light gets a greater opening angle that works as a step lighting system. | |
Third push: The torch and the display switch off. | |
STROBE function:
Five different strobe modes can be choosen. Push & hold On/Off button for four seconds, the LED on the focused optic gets on in strobe mode. Pressing the Menu button up to five times you can select the desired frequency. The selected strobe frequency will be stored. To return to the previous position, push the On/Off button again Push the On/Off button once again, and the torch and the display will switch OFF. | |
Menu Button: Pressing the button “MENU” for 4 seconds with the torch on, the “Burning Time System” gets activated. This allows the user to choose the desired burning time and the light intensity. Meanwhile the display flashes the user by pressing the “menu” button can choose between the three different burning times, 4, 6 and 8 at full charge, adjusting the light intensity level automatically. Once the user has chosen the desired burning time, the display will be flashing after 5 seconds.
| |
Charging System: When the torch is placed on the charger, the light turns off automatically (if the light is on). Charging of the torch starts when the green LED on the charger changes to red. An automatic reset takes care of loading the batteries for max. 4h with highest light intensity. The maximum charging time is 9 hours. The time that appears after the letter indicates the available burning time at high intensity in the moment the torch is taken from the charger and put into use. At the end of charge, the display switches off and a letter “F” (full) followed by the avalaible burning time will appear on the display every 15 seconds. If the charger is damaged, the display shows the following error ‘E0:00’. But thanks to the intelligent circuit board the torch keeps protected from the possible damages due to a faulty charger. | |
| |
Maintenance: Clean exclusively with a soft cloth using a neutral PH detergent diluted in warm water. Do not use alcohol or other chemical solvents. Do not submerge the torch into water. Do not open the torch in hazardous areas! IN ORDER TO GET THE MAXIMUM PERFORMANCE AND LIFE SPAN OF THE BATTERY, A COMPLETE DISCHARGE/CHARGE CYCLE SHOULD BE DONE AT LEAST ONCE PER MONTH! |
|
Other Functions: |
|
Clip (included) for the jacket or belt: |
|
|
|
Magnet with high pull strength (optional accessories): |
|
|
| |
Chargers: | (Accessorie) |
| |
|
|
| |
Marking: | CE e9 |
| |
Ingress Protection: | IP54 |
| |
Disconnection at the | |
end of the charge: | Automatic |
| |
Feeding Source: | DC: 12 V. | AC: 100/240V. 50/60 Hz |
| |
Types and dimensions: | Single: 75x105x60 mm |
| For 3 torches: 205x105x60 mm |
| For 5 torches: 405x105x60 mm |
| |
