Features

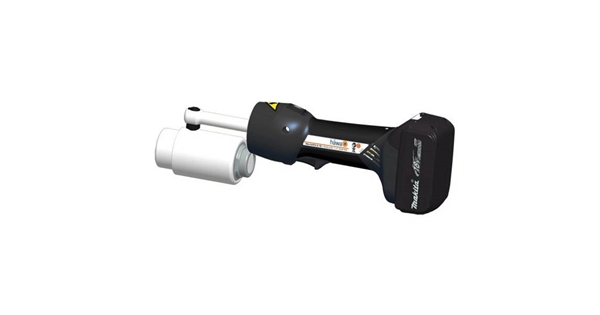

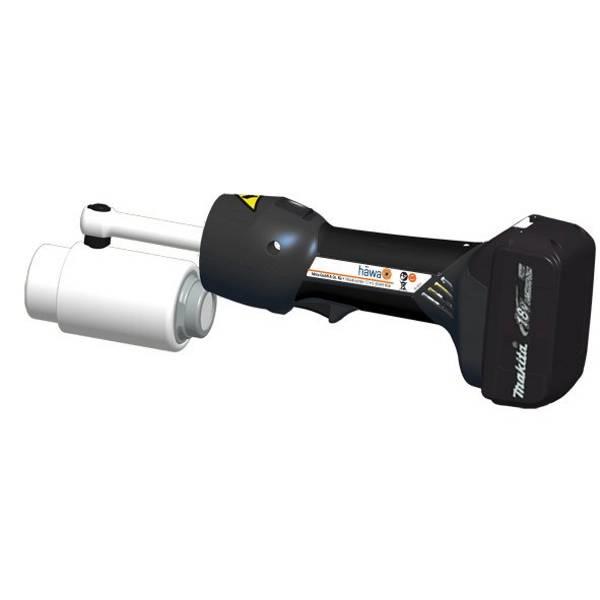

• Latest generation of powerfull battery, with compact size and a low weight of only 2.3 kg, makes the Powerlec Vario the ideal device for applications in confined spaces, delivering great results.
• User-friendly and with its revolving punch press head, it is ideal for working in confined spaces or for assembly.
• With the use of 19 mm actuation screw, cut-outs of Ø 80 mm in 2.5 mm sheet steel can be made.

• Easy operation - even in hard to reach spaces - through rotating and pivoting punching cylinder.
• The microprocessor control of the device switches off automatically after the metal sheet is punched. The return stroke follows automatically as well.
• Punch time of 5 seconds at 22.5 mm diameter with 3 mm thickness
• Weight of the device with battery, without tool: 2.3 kg
• With the included threaded bush, tools with a 9.5 actuation screw, can be used.
• Easy operation and control through punching center, since the die is directly on the unit.

Suitable for:

• Round punches up to Ø 80 mm
• Square punches up to 68 mm
• Rectangular punches up to 96 mm diagonal
• Maximum sheet thickness in relation to the above mentioned cross-sections:
  - Sheet steel up to 2.5 mm
  - Stainless steel up to 2.0 mm
  - Aluminium up to 4.0 mm
  - Punching force: 60 kN
  - Screw housing Ø: 19 mm; 0.75“
  - Battery capacity: 18V/3Ah
  - Charging time: 22 min
  - Noise level: 70.6 dB (A)

• Accu-hydraulic punch
• 2 actuation screws: Ø 9.5 mm and Ø 19 mm
• 1 reducing bushing
• 2 spacer sleeves
• 1 charger
• 1 battery
• 1 synthetic case

Accessories

• Reducing bushing ? see datasheet
• Actuation screw ? see datasheet
• spacer sleeve ? see datasheet
