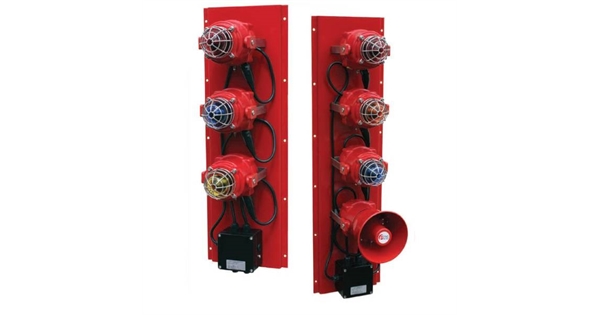

BExCP Plated Assemblies / Ex MP for 2 x BEX - 1 x Junction Box

The BEx range of beacons can be configured to create sets of status lights suitable for onshore and offshore applications.



Mounted onto a stainless steel backplate, E2S can offer up to 5 different components complete with the option of Exe Junction Box to make installation easier. Status lights utilise a high power LED solution which gives good light output and long life, which is important for continuous operation. Warning beacons normally use xenon strobe technology which is available in 5, 10, 15 and 21J outputs (up to 485 Cd) and which give effective warning in all conditions.

The BEx range is manufactured from marine grade LM6 Aluminium Alloy which has been chromated and powder coated offering suberb resistant to corrosion even under the most severe operating conditions. Standard sets are certified ATEX EX II 2G Exd IIB T4 but other options are available for higher gas groups, temperature ratings and approvals.




Features:

• Multi Function LED
 - Status Light mode
 - Flashing modes
 - Rotating modes

• Xenon Strobe
 5, 10, 15 and 21J versions

• Alarm Sounders
 110dB(A) and 117dB(A) versions

• Junction Box




Please contact the sales department with your specific requirements
