XenonStrobe MBX21 DC024 BN1A1B/R BLUE

21J 1Hz/2Hz/doubleStr.1Hz IP66/67 Synch.

Varenr:
MBX21DC024BN1A1B/B
MBX21DC024BN1A1B/B E2S MBX21DC024BN1A1B/B XenonStrobe MBX21 DC024 BN1A1B/R BLUE 21J 1Hz/2Hz/doubleStr.1Hz IP66/67 Synch.
MBX21DC024BN1A1B/B E2S MBX21DC024BN1A1B/B XenonStrobe MBX21 DC024 BN1A1B/R BLUE 21J 1Hz/2Hz/doubleStr.1Hz IP66/67 Synch.
Lenker: | Manual | DoC | DataSheet | GA

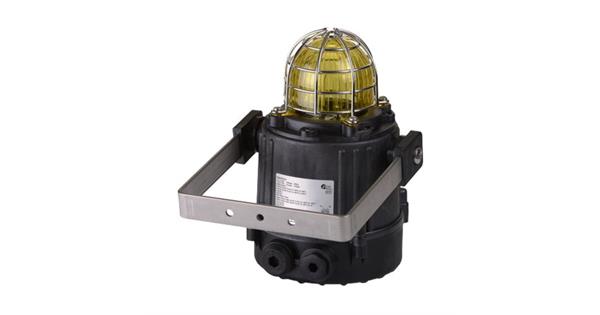

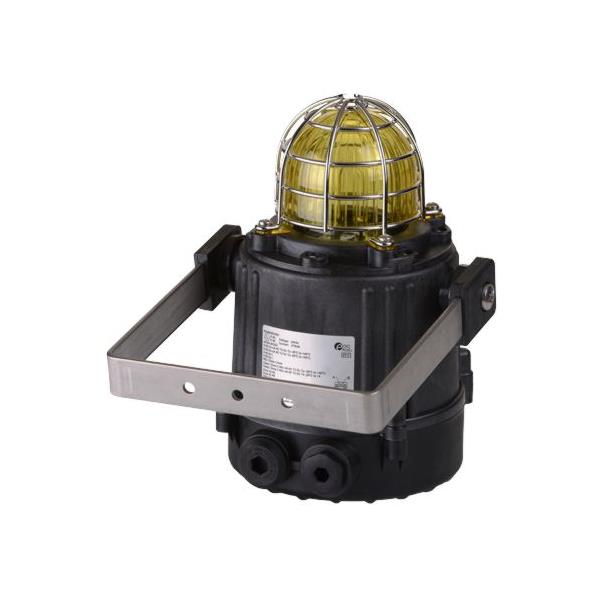

MBX21 Xenon Strobe Beacon 21 Joule

The MBX21 is a 21 Joule Xenon strobe beacon featuring a robust, fire retardant, IP66 & IP67 enclosure.

Manufactured from lightweight, high performance PPS with its corrosion proof properties the MBX21 is suitable for the harshest of environments.

Features:

• Very large termination area.
• Stainless Steel dome guard as standard
• Xenon tube mechanically secured against vibration/shock.
• Continuously rated.
• Stainless steel fixings.
• Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalised as standard.
• Ingress protection IP66/67
• UV stable PC, field replaceable, colour lens filter

Specification:

Energy:21 Joules (21Ws)
Flash Rate:1Hz, 2Hz & double strike 1Hz
Peak Candela:2,100,000 cd - calculated from energy (J)
Eff. Intensity cd:1,050 cd - calculated from energy (J)
Peak Candela:118,537 cd* - measured ref. to I.E.S.
Eff. Intensity cd:520 cd* - measured ref. to I.E.S.
Lens Colours:Red, Amber, Yellow, Green, Blue, Clear & Magenta
Voltages DC:24vDC; 48vDC
Voltages AC:115vAC; 230vAC
Ingress Protection:IP66/67
Housing Material:High impact UL94 V0 PPS
Colour:Black
Cable Entries:2 x M20 ISO cable gland entries
 - with 1 blanking plug.
Terminals:0.5 to 4.0mm² - In &?Out
Weight:1.48kg / 3.25Ibs

*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption:

Version:Voltage:Current:

24vDC20-28vDC1.2A
48vDC42-54vDC600mA
115vAC 50/60Hz+/-10%560mA
230vAC 50/60Hz+/-10%280mA


Part Codes:                      MBX21 [u] [e] [m] [s] [v] [x] / [y]

Part Code:Ident.:Description:

Product type:MBX2121 Joule Xenon Strobe Beacon

Voltage: [u]DC02424vDC (20-28vDC)
DC04848vDC (42-54vDC)
AC115115vAC 50/60Hz
AC230230vAC 50/60Hz

Cable entries: [e]AM20x1.5 & ½” NPT
BM20x1.5 & M20x1.5 (Default)
C½” NPT & ½” NPT

Stopping plug material: [m]NNylon (Default)

Guard & Bracket1A2 304 Stainless Steel (Default)
material: [s]2A4 316 Stainless Steel

Product version: [v]A1CE (Default)

Enclosure colour: [x]BBlack (Default)

Lens colour: / [y]RRed
AA  Amber (Orange)
YY  Yellow
GGreen
BB  Blue
CClear (Transparent)
MMagenta


Example part code:MBX21 [u] [e] [m] [s] [v] [x] / [y]
MBX21 DC024 B N 1 A1 G / R

Explanation of tehe above:
Product type:"MBX21" 21 Joule Xenon Strobe Beacon
Voltage: [u]"DC024" = 24vDC
Cable Entry: [e]"B" = 2 x M20x1.5mm (Default)
Stopping plug[m]"N" = Nylon (Default)
Bracket material: [s]"1" = A2 304 Stainless Steel (Default)
Product version: [v]"A1" = CE (Default)
Enclosure colour: [x]"B" = Black (Default)
Lens colour: / [y] "R" = Red Lens colour


Flash Patterns:

Pattern:Type:Stg 2 (DC)

SFSingle flash - 1Hz AF
(both flash tubes operate together)

AFAlternate flash - 2Hz SF
(tubes flash alternately - 0.5sec gap)

DFDouble strike flash - 1HzSF
(first tube flash followed by second)


Effective Candela lens colour factor:

Clear:Yellow:Amber:Green:Red:Blue:
1.000.860.510.490.150.12
