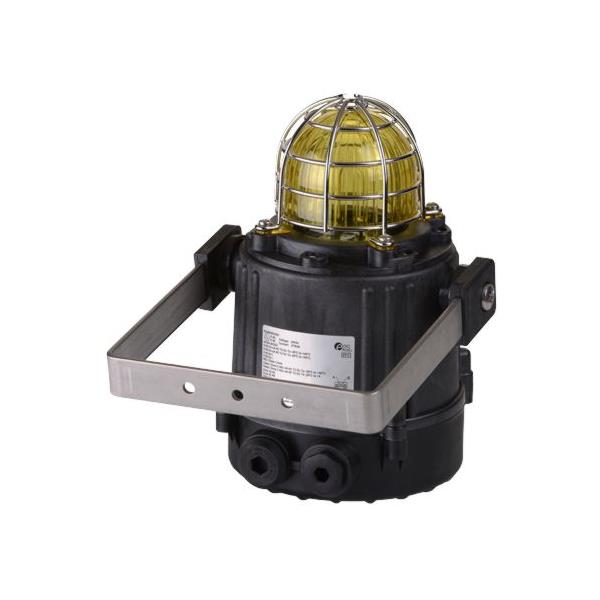

XenonStrobe MBX21 AC230 BN1A1B/Y Yellow
21J 1Hz/2Hz/doubleStr.1Hz IP66/67 Synch.
Varenr:
MBX21AC230BN1A1B/Y
|
|
MBX21 Xenon Strobe Beacon 21 Joule
The MBX21 is a 21 Joule Xenon strobe beacon featuring a robust, fire retardant, IP66 & IP67 enclosure.
Manufactured from lightweight, high performance PPS with its corrosion proof properties the MBX21 is suitable for the harshest of environments.
| Features: |
| |
| • Very large termination area. |
| • Stainless Steel dome guard as standard |
| • Xenon tube mechanically secured against vibration/shock. |
| • Continuously rated. |
| • Stainless steel fixings. |
| • Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning. |
| • Duplicate cable terminations (in & out for daisy-chain installations). |
| • Tropicalised as standard. |
| • Ingress protection IP66/67 |
| • UV stable PC, field replaceable, colour lens filter |
| |
| Specification: |
| |
| Energy: | 21 Joules (21Ws) |
| Flash Rate: | 1Hz, 2Hz & double strike 1Hz |
| Peak Candela: | 2,100,000 cd - calculated from energy (J) |
| Eff. Intensity cd: | 1,050 cd - calculated from energy (J) |
| Peak Candela: | 118,537 cd* - measured ref. to I.E.S. |
| Eff. Intensity cd: | 520 cd* - measured ref. to I.E.S. |
| Lens Colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Voltages DC: | 24vDC; 48vDC |
| Voltages AC: | 115vAC; 230vAC |
| Ingress Protection: | IP66/67 |
| Housing Material: | High impact UL94 V0 PPS |
| Colour: | Black |
| Cable Entries: | 2 x M20 ISO cable gland entries |
| - with 1 blanking plug. |
| Terminals: | 0.5 to 4.0mm² - In &?Out |
| Weight: | 1.48kg / 3.25Ibs |
| | |
*Candela measurements representative of performance with clear lens at optimum voltage.
Current Consumption:
| Version: | Voltage: | Current: |
| | | |
| 24vDC | 20-28vDC | 1.2A |
| 48vDC | 42-54vDC | 600mA |
| 115vAC 50/60Hz | +/-10% | 560mA |
| 230vAC 50/60Hz | +/-10% | 280mA |
Part Codes: MBX21 [u] [e] [m] [s] [v] [x] / [y]
| Part Code: | Ident.: | Description: |
| | | |
| Product type: | MBX21 | 21 Joule Xenon Strobe Beacon |
| | | |
| Voltage: [u] | DC024 | 24vDC (20-28vDC) |
| DC048 | 48vDC (42-54vDC) |
| AC115 | 115vAC 50/60Hz |
| AC230 | 230vAC 50/60Hz |
| | | |
| Cable entries: [e] | A | M20x1.5 & ½” NPT |
| B | M20x1.5 & M20x1.5 (Default) |
| C | ½” NPT & ½” NPT |
| | | |
| Stopping plug material: [m] | N | Nylon (Default) |
| | | |
| Guard & Bracket | 1 | A2 304 Stainless Steel (Default) |
| material: [s] | 2 | A4 316 Stainless Steel |
| | | |
| Product version: [v] | A1 | CE (Default) |
| | | |
| Enclosure colour: [x] | B | Black (Default) |
| | | |
| Lens colour: / [y] | R | R Red |
| A | A Amber (Orange) |
| Y | Y Yellow |
| G | G Green |
| B | B Blue |
| C | C Clear (Transparent) |
| M | M Magenta |
| Example part code: | MBX21 [u] [e] [m] [s] [v] [x] / [y] |
| MBX21 DC024 B N 1 A1 G / R |
| | |
| Explanation of tehe above: | |
| Product type: | "MBX21" 21 Joule Xenon Strobe Beacon |
| Voltage: [u] | "DC024" = 24vDC |
| Cable Entry: [e] | "B" = 2 x M20x1.5mm (Default) |
| Stopping plug: [m] | "N" = Nylon (Default) |
| Bracket material: [s] | "1" = A2 304 Stainless Steel (Default) |
| Product version: [v] | "A1" = CE (Default) |
| Enclosure colour: [x] | "B" = Black (Default) |
| Lens colour: / [y] | "R" = Red Lens colour |
Flash Patterns:
| Pattern: | Type: | Stg 2 (DC) |
| | | |
| SF | Single flash - 1Hz | AF |
| (both flash tubes operate together) | |
| | | |
| AF | Alternate flash - 2Hz | SF |
| (tubes flash alternately - 0.5sec gap) | |
| | | |
| DF | Double strike flash - 1Hz | SF |
| (first tube flash followed by second) | |
Effective Candela lens colour factor:
| Clear: | Yellow: | Amber: | Green: | Red: | Blue: |
| 1.00 | 0.86 | 0.51 | 0.49 | 0.15 | 0.12 |
