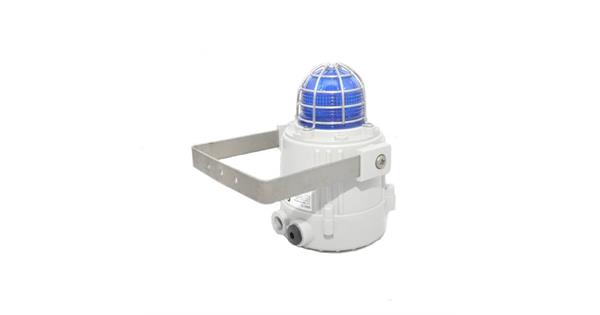

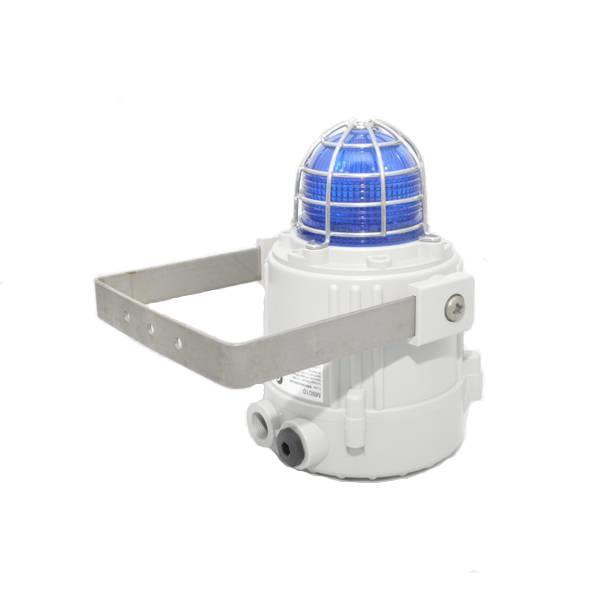

XenonStrobe MBX10 DC012 BN1A1G/B BLUE
10J 1Hz IP66/67 10-14vDC Synchronized
Varenr:
MBX10DC012BN1A1G/B
|
|
MBX10 Xenon Strobe Beacon
The MBX10 is a 10 Joule Xenon strobe beacon featuring a robust, fire retardant, IP66 & IP67 enclosure; suitable for harsh environments.
The 'M' series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets and has been third party tested to IP66/67.
| Features: |
| |
| • Automatic synchronisation on multi-beacon system. |
| • Beacons can be set to ‘flip-flop’ alternating mode with other units |
| on multi-beacon systems. |
| • Xenon tubes mechanically secured against shock & vibration |
| • Glass lens & Stainless Steel guard |
| • Very large termination area |
| • Dual M20 cable entries - adaptors available |
| • Stopping plug included |
| • Ratchet adjustable stainless steel ‘U’ bracket |
| • Reverse polarity diode fitted |
| • Ingress protection IP66/67 Type 4/4X/13 |
| • 380 effective candela light intensity |
| • 87,590 peak candela light intensity |
| • UV stable PC, field replaceable, colour lens filter |
| |
| Approvals: |
| |
| GOST-R certificate: POCC GB.JB05.H00144 |
| |
| Specification: |
| |
| Energy: | 10 Joules (10Ws) |
| Flash Rate: | 1Hz (60 fpm) |
| Peak Candela: | 1,000,000 cd - calculated from energy (J) |
| Eff. Intensity cd: | 500 cd - calculated from energy (J) |
| Peak Candela: | 87,590 cd* - measured ref. to I.E.S. |
| Eff. Intensity cd: | 380 cd* - measured ref. to I.E.S. |
| Lens Colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Voltages DC: | 12vDC; 24vDC; 48vDC |
| Voltages AC: | 115vAC; 230vAC |
| Ingress Protection: | IP66/67 Type 4/4X/13 |
| Housing Material: | High impact UL94 V0 & 5VA FR ABS |
| Colour: | Grey (RAL7038) |
| Cable Entries: | Dual M20x1.5 or 1/2"NPT |
| Lens Material: | Borosilicate glass dome with PC prismatic lens cover |
| Guard: | Stainless Steel dome guard as standard |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Operating Temp.: | -25 to +55°C [-13° to +131°F] |
| Storage Temp.: | -40 to +70°C [-40 to +158°F] |
| Relative Humidity: | 90% at 20°C [68°F] |
| Weight: | 1.48kg / 3.25Ibs |
| | |
*Candela measurements representative of performance with clear lens at optimum voltage.
Current Consumption:
| Version: | Voltage: | Current: |
| | | |
| 12vDC | 10-14vDC | 1.45A |
| 24vDC | 20-28vDC | 660mA |
| 48vDC | 42-54vDC | 340mA |
| 115vAC 50/60Hz | +/-10% | 250mA |
| 230vAC 50/60Hz | +/-10% | 110mA |
Part Codes: MBX10 [u] [e] [m] [s] [v] [x] / [y]
| Part Code: | Ident.: | Description: |
| | | |
| Product type: | MBX10 | 10 Joule Xenon Strobe Beacon |
| | | |
| Voltage: [u] | DC012 | 12vDC (10-14vDC) |
| DC024 | 24vDC (20-28vDC) |
| DC048 | 48vDC (42-54vDC) |
| AC115 | 115vAC 50/60Hz |
| AC230 | 230vAC 50/60Hz |
| | | |
| Cable entries: [e] | A | M20x1.5 & ½” NPT |
| B | M20x1.5 & M20x1.5 (Default) |
| C | ½” NPT & ½” NPT |
| | | |
| Stopping plug material: [m] | N | Nylon (Default) |
| | | |
| Guard & Bracket | 1 | A2 304 Stainless Steel (Default) |
| material: [s] | 2 | A4 316 Stainless Steel |
| | | |
| Product version: [v] | A1 | CE, EAC & Russian Maritime |
| | (Default) |
| | | |
| Enclosure colour: [x] | G | Grey (Default) |
| S | Special - contact us! |
| | | |
| Lens colour: / [y] | R | R Red |
| A | A Amber (Orange) |
| Y | Y Yellow |
| G | G Green |
| B | B Blue |
| C | C Clear (Transparent) |
| M | M Magenta |
| Example part code: | MBX10 [u] [e] [m] [s] [v] [x] / [y] |
| MBX10 DC024 B N 1 A1 G / R |
| | |
| Explanation of tehe above: | |
| Product type: | "MBX10" 10 Joule Xenon Strobe Beacon |
| Voltage: [u] | "DC024" = 24vDC |
| Cable Entry: [e] | "B" = 2 x M20x1.5mm (Default) |
| Stopping plug: [m] | "N" = Nylon (Default) |
| Bracket material: [s] | "1" = A2 304 Stainless Steel (Default) |
| Product version: [v] | "A1" = CE, EAC & Russian Maritime |
| (Default) |
| Enclosure colour: [x] | "G" = Grey (Default) |
| Lens colour: / [y] | "R" = Red Lens colour |
