XenonStrobe MBX 05 AC115 BN1A1G/R

5J 1Hz IP66/67 Synchronized

Varenr:
MBX05AC115BN1A1G/R
MBX05AC115BN1A1G/R E2S MBX05AC115BN1A1G/R XenonStrobe MBX 05 AC115 BN1A1G/R 5J 1Hz IP66/67 Synchronized
MBX05AC115BN1A1G/R E2S MBX05AC115BN1A1G/R XenonStrobe MBX 05 AC115 BN1A1G/R 5J 1Hz IP66/67 Synchronized MBX05AC115BN1A1G/R E2S MBX05AC115BN1A1G/R XenonStrobe MBX 05 AC115 BN1A1G/R 5J 1Hz IP66/67 Synchronized
MBX05AC115BN1A1G/R E2S MBX05AC115BN1A1G/R XenonStrobe MBX 05 AC115 BN1A1G/R 5J 1Hz IP66/67 Synchronized
MBX05AC115BN1A1G/R E2S MBX05AC115BN1A1G/R XenonStrobe MBX 05 AC115 BN1A1G/R 5J 1Hz IP66/67 Synchronized MBX05AC115BN1A1G/R E2S MBX05AC115BN1A1G/R XenonStrobe MBX 05 AC115 BN1A1G/R 5J 1Hz IP66/67 Synchronized
Lenker: | GA | DoC | IP | DataSheet | Manual

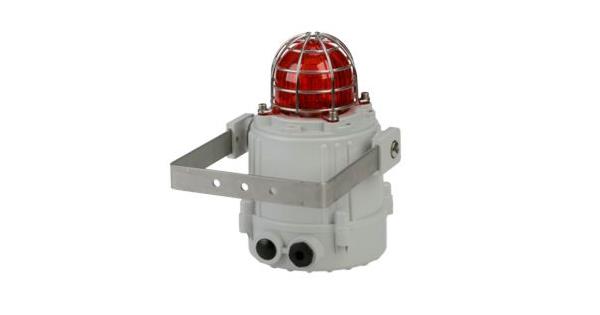

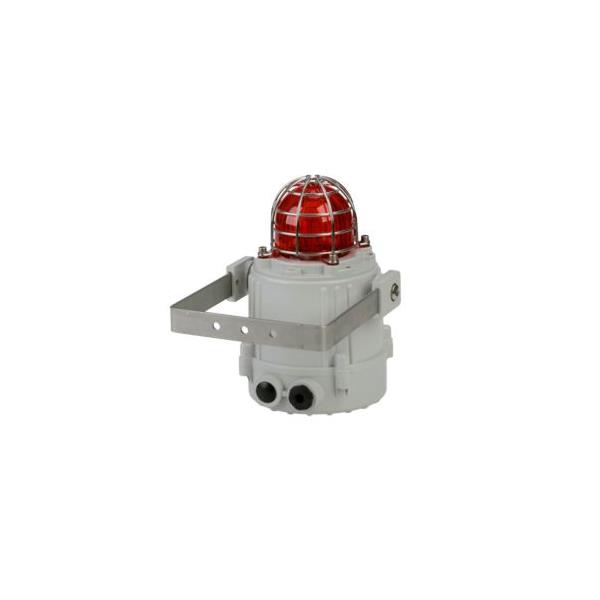

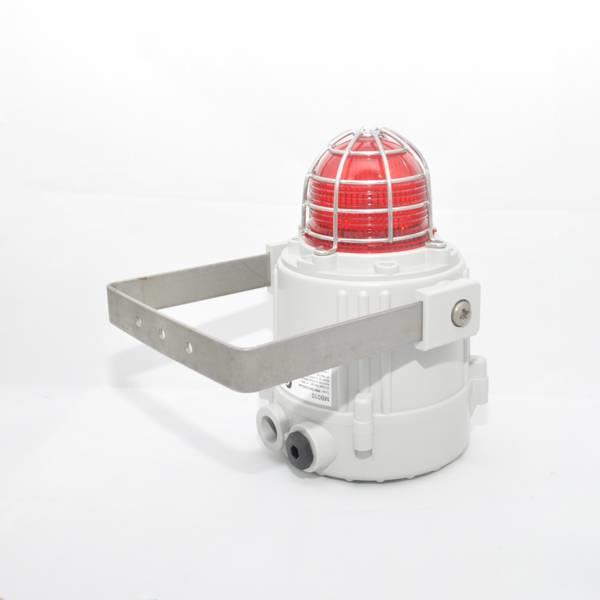

MBX05 Xenon Strobe Beacon

The MBX05 is a 5 Joule Xenon strobe beacon featuring a robust, fire retardant, IP66 & IP67 enclosure; suitable for harsh environments.

The 'M' series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets and has been third party tested to IP66/67.

Features:

• Automatic synchronisation on multi-beacon system.
• Beacons can be set to ‘flip-flop’ alternating mode with other units
   on multi-beacon systems.
• Xenon tubes mechanically secured against shock & vibration
• Glass lens & Stainless Steel guard
• Very large termination area
• Dual M20 cable entries - adaptors available
• Stopping plug included
• Ratchet adjustable stainless steel ‘U’ bracket
• Reverse polarity diode fitted
• Ingress protection IP66/67 Type 4/4X/13
• 120 effective candela light intensity
• 39,463 peak candela light intensity
• UV stable PC, field replaceable, colour lens filter

Approvals:

GOST-R certificate: POCC GB.JB05.H00144

Specification:

Energy:5 Joules (5Ws)
Flash Rate:1Hz (60 fpm)
Peak Candela:500,000 cd - calculated from energy (J)
Eff. Intensity cd:250 cd - calculated from energy (J)
Peak Candela:39,463 cd* - measured ref. to I.E.S.
Eff. Intensity cd:120 cd* - measured ref. to I.E.S.
Lens Colours:Red, Amber, Yellow, Green, Blue, Clear & Magenta
Voltages DC:12vDC; 24vDC; 48vDC
Voltages AC:115vAC; 230vAC
Ingress Protection:IP66/67 Type 4/4X/13
Housing Material:High impact UL94 V0 & 5VA FR ABS
Colour:Grey (RAL7038)
Cable Entries:Dual M20x1.5 or 1/2"NPT
Lens Material:Borosilicate glass dome with PC prismatic lens cover
Guard:Stainless Steel dome guard as standard
Terminals:0.5 - 2.5mm² (20-14 AWG)
Operating Temp.:-25 to +55°C [-13° to +131°F]
Storage Temp.:-40 to +70°C [-40 to +158°F]
Relative Humidity:90% at 20°C [68°F]
Weight:1.48kg / 3.25Ibs

*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption:

Version:Voltage:Current:

12vDC10-14vDC750mA
24vDC20-28vDC270mA
48vDC42-54vDC180mA
115vAC 50/60Hz+/-10%140mA
230vAC 50/60Hz+/-10%  55mA


Part Codes:                      MBX05 [u] [e] [m] [s] [v] [x] / [y]

Part Code:Ident.:Description:

Product type:MBX055 Joule Xenon Strobe Beacon

Voltage: [u]DC01212vDC (10-14vDC)
DC02424vDC (20-28vDC)
DC04848vDC (42-54vDC)
AC115115vAC 50/60Hz
AC230230vAC 50/60Hz

Cable entries: [e]AM20x1.5 & ½” NPT
BM20x1.5 & M20x1.5 (Default)
C½” NPT & ½” NPT

Stopping plug material: [m]NNylon (Default)

Guard & Bracket1A2 304 Stainless Steel (Default)
material: [s]2A4 316 Stainless Steel

Product version: [v]A1CE, EAC & Russian Maritime
(Default)

Enclosure colour: [x]GGrey (Default)
SSpecial - contact us!

Lens colour: / [y]RRed
AA  Amber (Orange)
YY  Yellow
GGreen
BB  Blue
CClear (Transparent)
MMagenta


Example part code:MBX05 [u] [e] [m] [s] [v] [x] / [y]
MBX05 DC024 B N 1 A1 G / R

Explanation of tehe above:
Product type:"MBX05" 5 Joule Xenon Strobe Beacon
Voltage: [u]"DC024" = 24vDC
Cable Entry: [e]"B" = 2 x M20x1.5mm (Default)
Stopping plug[m]"N" = Nylon (Default)
Bracket material: [s]"1" = A2 304 Stainless Steel (Default)
Product version: [v]"A1" = CE, EAC & Russian Maritime
(Default)
Enclosure colour: [x]"G" = Grey (Default)
Lens colour: / [y] "R" = Red Lens colour
