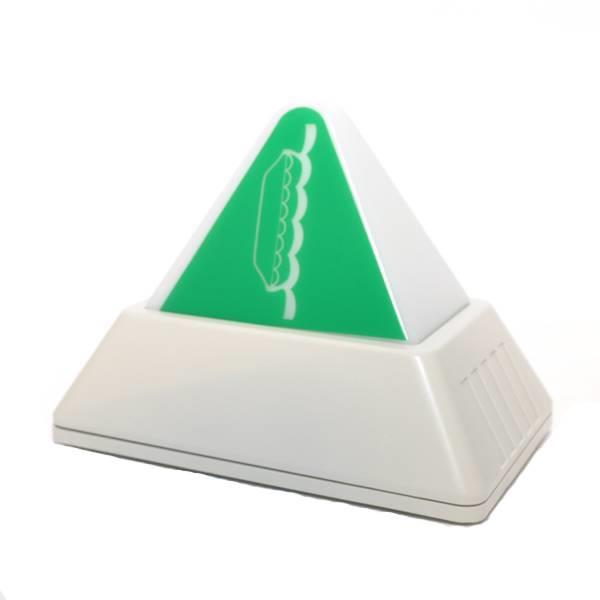

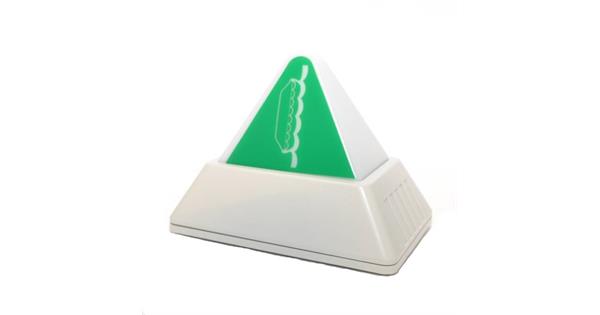

LED GA Beacon PD2100-LED 230vAC WHITE
Perm. IP55 w/ GA symbol
|
|
LED Continuous Light PD 2100-LED with GA Symbol
Machine lights in an elegant pyramid design, equipped with LED light source for extremely long service life (> 50 000 hrs)
• Vibration/shock-resistant
• Low power consumption
• Minimised maintenance costs
• Non-compromising safety
• Outstanding illumination of the coloured lens due to scattering lens
Electrical data:
| Rated voltage: | 230vAC | 115vAC | 24vAC/DC |
| Rated frequency: | 50/60Hz | 50/60Hz | 50/60Hz / DC |
| Operating range: | ±10% | ±10% | AC: 18–27v
DC: 19–30v |
| Nominal current consumption: | 12 mA | 24 mA | AC: 115 mA
DC: 65 mA |
| | | | |
| Light source: | LED |
| Light intensity (DIN 5037): * | 5 cd |
| Max. viewing distance: | 52 m |
| Operating temperature: | –25 °C to +55 °C |
| Storage temperature: | –40 °C to +80 °C |
| Relative humidity: | 90 % |
| Protection system (EN 60529): | IP 55 (if mounted vertically/horizontally) |
| Protection class: | II |
| Duty cycle: | 100 % |
| Service life of the light source: | >50,000 hrs |
| Lens material: | polycarbonate (PC) |
| Housing material: | ABS, light grey similar to RAL 7035 |
| Cable entry: | M20x 1.5, either at the side or underneath |
| Connecting terminal: | fine wire 0.14–2.5 mm2 |
| Weight: | 230vAC: 380 g
115vAC: 380 g
24vAC/DC: 270 g |
| *) with a clear lens and no symbol | |
Ordering details:
| Lens colour | 230vAC | | 24vAC/DC |
| | | | |
| White: | 211 2061 2000 - GA | | 211 2060 2000 - GA |
CONFORMITY TO STANDARDS
The visual characteristics of LED lights conform to the European standard DIN EN 842; “Machine safety – visual alarm signals”.
Requirements contained in the DIN EN 981 standard; “Machine safety – system of acoustic and visual alarm and information signals”, can be fulfilled.
The colours “red” for the emergency signal and “yellow” for the warning signal conform to the requirements of IEC 73 / DIN EN 60073 / VDE 0199; “Coding of display devices and control elements using colours and supplementary means”.
References to visual alarm devices can be found in the following standards:
EN 60825-1 Radiation safety of laser devices, identical to IEC 825 and DIN-VDE 0837
DIN EN 54 Fire alarm systems
DIN 54113-2 Radiation protection regulations for the technical operation of X-ray equipment up to 500 kV
