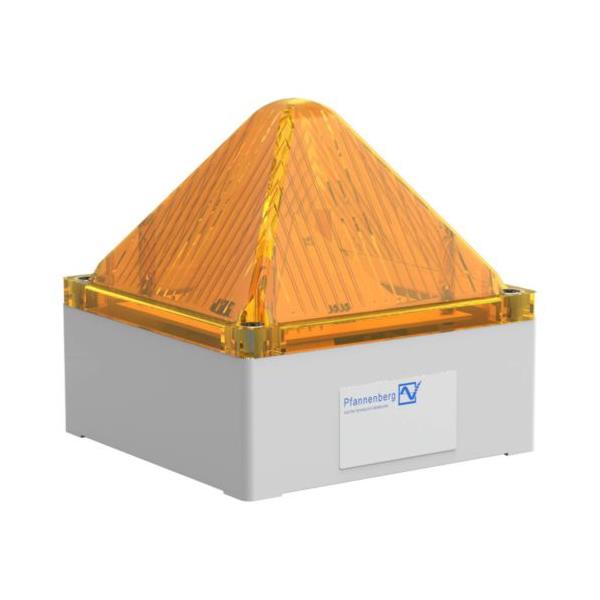

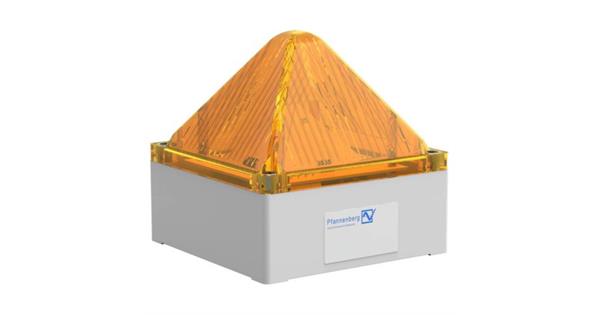

LED Light Quadro-LED-HI 24vDC YELLOW
IP66&IP67 80cd 11-60vDC
|
|
LED Multi-function Light
Quadro-LED-Hi
Extreme bright 75 cd LED light with large signaling effect, brightness adjustable
- designed for tough requirements under industrial conditions
- suitable for indoor and outdoor use
- extremely insensitive to shock and vibration
- internally and externally (DC) selectable operating mode as standard
- 3 different signal options can be selected:
- continuous light
- blinking light
- flashing light - 24 V DC devices as standard with soft-start module inexpensive and ?exible; wide range power supplies as Standard, even for high DC voltages applicable (90 - 253 V DC)
Technical Data:
| Protection system: | IP66 & IP67 |
| Impact-proof housing: | IK8 |
| Operating temperature: | -40°C to +55°C |
Electrical Data:
| Rated Voltage: | 115 / 230 vAC/DC | 24 / 48 vDC |
| Rated frequency: | 50/60 Hz / DC | DC |
| Voltage range: | 90–253 vAC/DC | 11–60 vDC |
| Current consumption | | |
| in 1 Hz flash mode: | 45 mA @ 230 vAC | 165 mA @ 24 vDC |
Lens colours: red, amber, yellow, green, blue, white, clear
Further technical information can be found on this page in the product downloads at the right on the top.
To make the order process easy for you and to ensure a secure delivery, please see the information on the final article numbers below:
Ordering details:
| Lens colour | 230 vAC/DC | 24 vDC / 48 vDC |
| Red | 2110 864 5000 | 2110 863 5000 |
| Amber | 2110 864 4000 | 2110 863 4000 |
| Yellow | 2110 864 3000 | 2110 863 3000 |
Article numbers for further lens colours and voltages on request.
