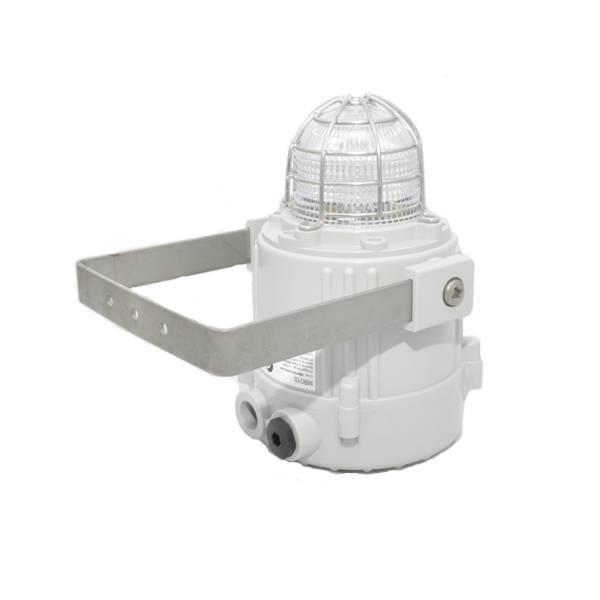

LED Beacon MBLD2 DC024 BN1A1G/C CLEAR
Multi-function LED IP66&IP67 (18-54vDC)
Varenr:
MBLD2DC024BN1A1G/C
|
|

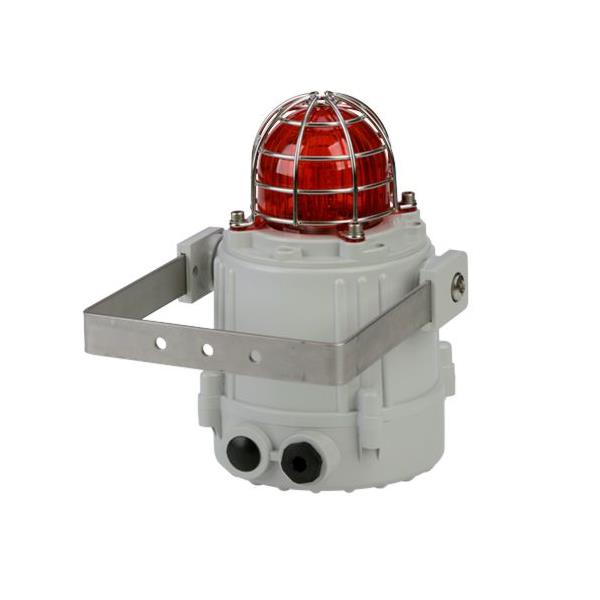

MBLD2 Multi-function LED Status Light & Beacon
The MBLD2 is a multi-function L.E.D. beacon featuring a robust, fire retardant, IP66 & IP67 enclosure; suitable for the harshest of environments.
The MBLD2 LED status light & beacon utilises an array of high power Cree® LED's, orientated to optimise visibility in any direction. The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device. The UV stable colour filter enhances the light output and is field replaceable.
Features:
• Continuously rated.
• Large termination area.
• Stainless steel fixings.
• Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Field replaceable UV stable coloured lens filters.
• Tropicalisation available on request.
• Array of 4 x high power Cree® LED's
• Modes:
-» 1 Hz flash (60 fpm)
-» 1.5 Hz flash (90 fpm)
-» 2 Hz flash (120 fpm)
-» Double strike flash
-» Triple strike flash
-» High Power Steady
-» Low Power Steady
• Eff. Intensity cd: 87 cd - High Power Steady
• Eff. Intensity cd: 160 cd - 1Hz flash
• Ingress protection: IP66 & IP67 Type 4/4X/13
Approvals:
• EAC compliant: POCC GB.JB05.H00144.
• Russian Maritime Register
Specification:
| Source: | Array of 4 x High Power Cree® LED's |
| Modes: | -» 1 Hz flash (60 fpm) |
| -» 1.5 Hz flash (90 fpm) |
| -» 2 Hz flash (120 fpm) |
| -» Double strike flash |
| -» Triple strike flash |
| -» High Power Steady |
| -» Low Power Steady |
| | |
| Eff. Intensity cd: | 87 cd - High Power Steady |
| Eff. Intensity cd: | 160 cd - 1Hz flash |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| | |
| Voltages DC: | 24vDC (18-54vDC) |
| Voltages AC: | 115vAC; 230vAC |
| Ingress protection: | IP66 & IP67 Type 4/4X/13 |
| | |
| Enclosure matl: | High impact UL94 V0 & 5VA FR ABS |
| Lens material: | Borosilicate glass dome with PC prismatic |
| lens colour filter |
| Guard: | Stainless Steel dome guard as standard |
| Colour: | RAL7038 Grey |
| (others available on request) |
| Cable entries: | Dual M20x1.5 or 1/2"NPT |
| | |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included |
| EOL can be factory fitted |
| LED life: | 60,000 hours |
| | |
| Operating temp: | -25 to +55°C [-13 to +131°F] |
| Storage temp: | -40 to +70°C [-40 to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 1.48kg / 3.25Ibs |
*All candela data is representative of performance with clear lens at optimum voltage.
Part Codes: MBLD2 [u] [e] [m] [s] [v] [x] / [y]
| Version: | Ident.: | Description: |
| | | |
| Product type: | MBLD2 | Multi-function LED Beacon |
| | | |
| Voltage: [u] | DC024 | 24vDC (18-54vDC) |
| AC115 | 115vAC 50/60 Hz |
| AC230 | 230vAC 50/60 Hz |
| | | |
| Cable Entry Type: [e] | A | M20x1.5 & ½” NPT |
| B | M20x1.5 & M20x1.5 (Default) |
| C | ½” NPT & ½” NPT |
| | | |
| Stopping plug material: [m] | N | Nylon (Default) |
| | | |
| Guard & Bracket | 1 | A2 304 Stainless Steel (Default) |
| material: [s] | 2 | A4 316 Stainless Steel |
| | | |
| Product version: [v] | A1 | CE, EAC & Russian Maritime |
| | | |
| Enclosure colour: [x] | G | Grey (Default) |
| S | Special - contact us! |
| | | |
| Lens colour: / [y] | R | R Red |
| A | A Amber (Orange) |
| Y | Y Yellow |
| G | G Green |
| B | B Blue |
| C | C Clear (Transparent) |
| M | M Magenta |
| Example part code: | MBLD2 [u] [e] [m] [s] [v] [x] / [y] |
| MBLD2 DC024 B N 1A 1 G / R |
| | |
| Explanation of tehe above: | |
| Product type: | "MBLD2" Multi-function LED Beacon |
| Voltage: [u] | "DC024" = 24vDC |
| Cable Entry: [e] | "B" = 2 x M20x1.5mm (Default) |
| Stopping plug: [m] | "N" = Nylon (Default) |
| Bracket material: [s] | "1" = A2 304 Stainless Steel (Default) |
| Product version: [v] | "A1" = CE, EAC & Russian Maritime |
| (Default) |
| Enclosure colour: [x] | "G" = Grey (Default) |
| Lens colour: / [y] | "R" = Red Lens colour |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.23 | 0.70 | 0.93 | 0.25 | 0.24 | 1.00 |
| | High Power | Low Power | Flashing |
| Version: | Voltage: | Steady | Steady | 1 Hz |
| | | | | |
| 24vDC | 18-54vDC | 240 mA | 134 mA | 110 mA |
| 115vAC | 103.5-126.5vAC | 95 mA | 78 mA | 90 mA |
| 230vAC | 207-253vAC | 48 mA | 37 mA | 45 mA |
Multi-function patterns:
| | | |
| Stage 1: | Stage 2: | Stage 3: |
| [On board] | [Remote - DC only] | [Remote - DC only] |
| | | |
| Steady High Power | Flashing 1 Hz | Triple Strike |
| Steady Low Power | Flashing 1 Hz | Triple Strike |
| Flashing 1 Hz | 2 x Flash 2 Hz | Triple Strike |
| Flashing 1.5 Hz | Flashing 2 Hz | Double Strike |
| Flashing 2 Hz | Triple Strike | Triple Strike |
| Double Strike | Steady High Power | Triple Strike |
| Triple Strike | Flashing 2 Hz | Double Strike |
