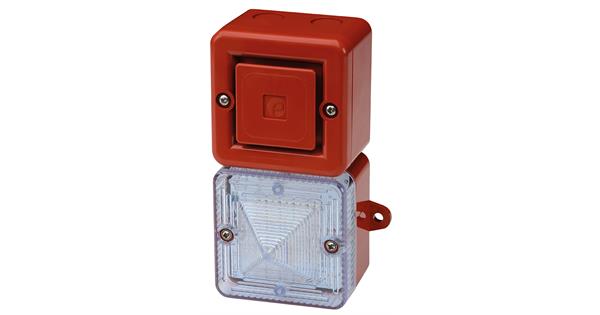

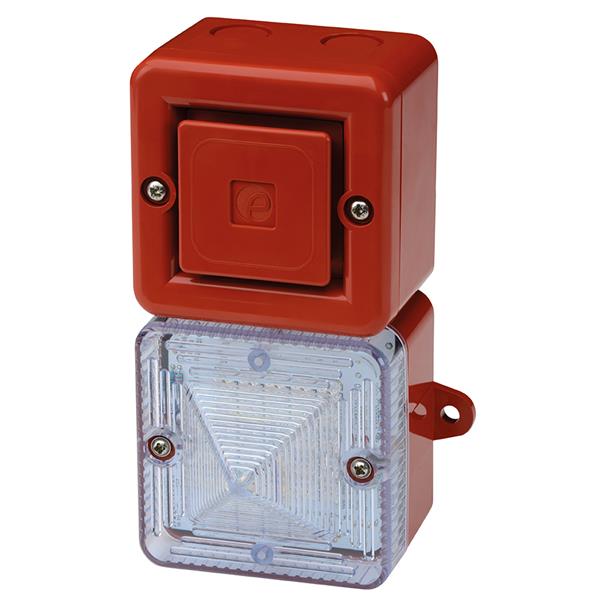

Combi SONFL1 X-M 24vDC [ red] CLEAR MED

100dB(A) 5J IP55 10T MED-Certified

Varenr:
SONFL1XDC024R/C-M
SONFL1XDC024R/C-M E2S SONFL1XDC024R/C-MED Combi SONFL1 X-M 24vDC [ red] CLEAR MED 100dB(A) 5J IP55 10T MED-Certified
SONFL1XDC024R/C-M E2S SONFL1XDC024R/C-MED Combi SONFL1 X-M 24vDC [ red] CLEAR MED 100dB(A) 5J IP55 10T MED-Certified
Lenker: | MED | Manual | MED-D | EC-CoC | DataSheet | GA
SONFL1X Alarm Horn & Xenon Strobe Beacon

The SONFL1X features the 100dB(A) SONF1 alarm horn sounder combined with the L101X Xenon strobe beacon. The compact, robust housing is ideal for all general signalling applications including fire, security and process control.

Description:

The 5 Joule Xenon strobe generates over 200 candela of light output. DC versions have multiple flash rates selectable during installation. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.

Features:

• Automatic synchronisation on multi-sounder system.
• High output Xenon beacon
• DC voltage units feature multiple flash rates.
• Continuously rated.
• Stainless steel fixings.
• Mounting via internal BESA compatible fixing positions or via external mounting lugs.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalisation available on request.
• Available with custom tone configurations and frequencies.

Specification:

Sounder:
Maximum output:100dB(A) @ 1 metre [91dB(A) @ 10ft/3m]
Nominal output:99dB(A) @ 1m +/- 3dB – Tone 1 [90dB(A) @ 10ft/3m]
No. of tones:10 (UKOOA / PFEER compliant)
No. of stages:2
Volume control: On board potentiometer
Effective range: 30m/99ft @ 1KHz

Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela:500,000 cd – calculated from energy (J)
Effective
Intensity:250 cd – calculated from energy (J)
Peak Candela: 86,935 cd* – measured ref. to I.E.S.
Effective
Intensity:200 cd* – measured ref. to I.E.S.
Lens colours:Red, Amber, Yellow, Green, Blue, Clear & Magenta
Tube life:Emissions are reduced to 70% after 5 million flashes

General:
Voltages DC:12vDC; 24vDC
Voltages AC: 24vAC; 115vAC; 230vAC
IP:IP66
Housing material:High impact UL94 V0 & 5VA FR ABS
Colour:Red (RAL3000), grey (RAL7038) & white.
Lens material:PC
Cable entries:4 x M20 clearance gland knockouts in side & back
Terminals:0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Rel. humidity: 90% at 20°C [68°F]
Weight:0.50kg/1.1Ibs

*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.

Part Codes:

Version:Part code:

12vDCSONFL1X DC012 [x] / [y]
24vDCSONFL1X DC024 [x] / [y]
24vACSONFL1X AC024 [x] / [y]
115vACSONFL1X AC115 [x] / [y]
230vACSONFL1X AC230 [x] / [y]

[x] = Enclosure colour:G: Grey (RAL7038)
R: Red (RAL3000)
W: White

[y] = Lens colour:R: Red
A: Amber
Y: Yellow
G: Green
B: Blue
C: Clear
M: Magenta

Suffix part number with ‘-UL’ for UL approved version.
Suffix part number with ‘-M’ for MED approved version [24V dc unit, Clear lens only]

CPR – EN54-3 & EN54-23:

Part code:SONFL1XDC024[x]/C
Environmental class: Type B – for outdoor use
Visual range:Category W-2.4-4.8
Signal colour: Clear (1Hz)

Alarm sounder:

Version:Voltage:Current :

12vDC10-30vDC 25mA*
24vDC10-30vDC 25mA*
24vAC 50/60Hz +/-10%40mA
115vAC 50/60Hz +/-10%13mA
230vAC 50/60Hz +/-10%13mA

* current at nominal voltage on Tone 2

Approvals:

• VdS approved: EN54-3 and EN54-23 (CPR 305/2011/EU).
• UL & cULus approved: General signalling use.
• GOST-R approved. Cert: POCC GB-JB05-H00144.
• Marine Equipment Directive (MED) Certificate: MEDB00001EH

Xenon beacon:

Version:Voltage: Current:

12vDC10-14vDC500mA
24vDC20-28vDC250mA
24vAC 50/60Hz+/-10% 300mA
115vAC 50/60Hz +/-10% 70mA
230vAC 50/60Hz +/-10% 35mA

Tone Table:

Stage 1:Frequency Description:Stage 2:

T 1800/1000Hz @ 0.25 sec Alternating T 8
T 2  500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3  1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. T 8
T 4544Hz (100mS)/440Hz (400mS) – NF S 32-001T 9
T 5BellT 1
T 6800/1000Hz @ 7Hz Sweeping T 8
T 7 500-1200Hz 3.75sec /0.25sec. Australian Evac.T 10
T 81000Hz Continuous – PFEER Toxic Gas
T 9  Continuous 554Hz
T 10 420Hz @ 0.625 sec Australian Alert

AC Version(Single stage only):
Stage 1:Frequency Description:

T 1800/1000Hz @ 0.25 sec Alternating
T 2500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
T 31200/500Hz @ 1Hz – DIN / PFEER P.T.A.P.
T 4544Hz (100mS)/440Hz (400mS) – NF S 32-001
T 51000Hz Continuous – PFEER Toxic Gas
T 6Bell
T 7800/1000Hz @ 7Hz Sweeping
T 82400/2900Hz @ 50Hz Sweeping
T 9420Hz @ 0.625 sec Australian Alert
T 10500-1200Hz 3.75sec /0.25sec. Australian Evac.

Country specific or custom tone configurations and alarm frequencies are available upon request.
