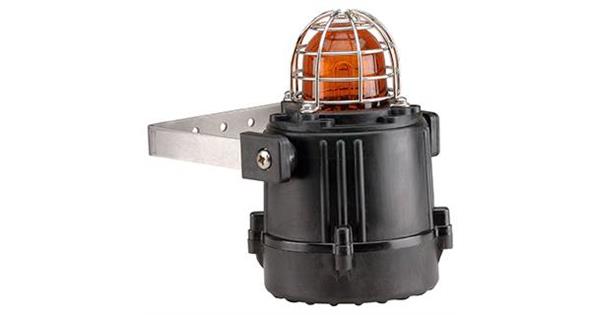

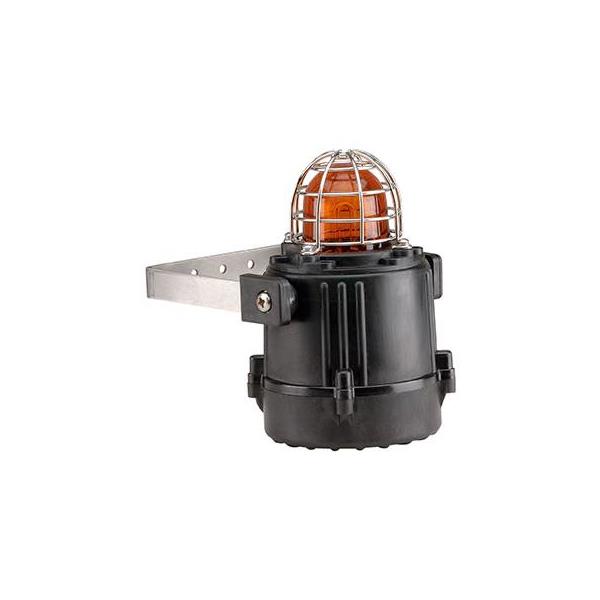

XenonStrobe E2X B05 AC115 BN1A1B/Yellow

5J IP64/IP66 IECEx/ATEX Zone2, UL/cULs

Varenr:
E2xB05AC115BN1A1B/Y
E2xB05AC115BN1A1B/Y E2S E2xB05AC115BN1A1B/Y XenonStrobe E2X B05 AC115 BN1A1B/Yellow 5J IP64/IP66 IECEx/ATEX Zone2, UL/cULs
E2xB05AC115BN1A1B/Y E2S E2xB05AC115BN1A1B/Y XenonStrobe E2X B05 AC115 BN1A1B/Yellow 5J IP64/IP66 IECEx/ATEX Zone2, UL/cULs
Lenker: | DataSheet
E2xB05 Xenon Strobe 5 Joule


The hazardous area E2xB05 Xenon strobe beacon is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.

The E2xB05 is a 5 Joule Xenon strobe beacon with a 1Hz (60 fpm) flash rate.
The E2x range features enclosures manufactured from lightweight, high performance PPS which, with its corrosion proof properties, is suitable for the harshest of environments.


Features:

• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.
• Stainless Steel dome guard as standard
• Xenon tube mechanically secured against vibration & shock.
• User replaceable Xenon tube assembly.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalisation available on request.


Approvals:

ATEX certificate:DEMKO 06 ATEX 0421554X
IECEx certficate:IECEx ULD 14.0012X
UL/cUL File ref:E245313



Specification:

Energy:5 Joules (5Ws)
Flash rate:1Hz (60 fpm)
Peak Candela:500,000 cd - calculated from energy (J)
Effective Intensity cd:250 cd - calculated from energy (J)
Peak Candela:34,122 cd* - measured ref. to I.E.S.
Effective Intensity cd:108 cd* - measured ref. to I.E.S.
Lens colours:Red, Amber, Yellow, Green, Blue, Clear
& Magenta
Voltages DC:12vDC; 24vDC; 48vDC
Voltages AC:115vAC; 230vAC
Ingress protection:IP rating per EN60079-0:IP64
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/13
Enclosure material:UL94V0 PPS & ABS
Lens material:Borosilicate glass dome with PC
prismatic lens cover.
Guard:Stainless Steel dome guard as standard
Cable entries:Dual M20x1.5 or 1/2"NPT
Terminals:0.5 - 2.5mm² (20-14 AWG)
Line monitoring:Blocking diode included
EOL can be factory fitted
Operating temp:-20 to +55°C [-4° to +131°F]
Storage temp:-40 to +70°C [-40° to +158°F]
Relative humidity:90% at 20°C [68°F]
Weight:1.48kg / 3.25Ibs


* All candela data is representative of performance with clear lens at optimum voltage.


Current Consumption:


Version:Voltage:Current:
12vDC10-14vDC520mA
24vDC20-28vDC275mA
48vDC42-58vDC145mA
115vAC50/60Hz+/-10%  80mA
230vAC50/60Hz+/-10%  30mA



Part Codes:


Part Code:Ident.:Description:

Product type:E2xB05Xenon Strobe Beacon

Voltage: [u]DC01212vDC
DC02424vDC
DC04848vDC
AC115115vAC 50/60Hz
AC230230vAC 50/60Hz

Cable entries: [e]AM20x1.5 & ½” NPT
BM20x1.5 & M20x1.5 (Standard)
C½” NPT & ½” NPT

Stopp. plug matr.:[m]NNylon  (Standard)

Bracket & Guard: [s]1304 (A2) Stainless Steel (Standard)
2316 (A4) Stainless Steel

Approvals: [v]A1UL, cULs, IECEx & ATEX (Standard)

Enclosure: [x]BBlack (Standard)

Lens colour: /[y]RRed
AAmber (Orange)
YYellow
GGreen
BBlue
CClear (Transparent)
MMagenta

Example part code:E2xB05 [u] [e] [m] [s] [v] [x] / [y]
E2xB05 DC024 B N 1 A1 B / R


Explanation of the above:
Product type:"E2xB05"
Voltage: [u]"DC024" = 24vDC (20-28vDC)
Cable Entry: [e]"B" = M20x1.5 & M20x1.5
Stopp. plug matr.:[m]"N" = Nylon
Bracket & Guard: [s]"1" = 304 (A2) Stainless Steel Bracket & Guard
Approvals: [v]"A1"UL, cULs, IECEx & ATEX
Enclosure colour: [x]"B" = Black Enclosure colour
Lens colour: /[y] /"R" = Red Lens colour


Also available as the E2xC1X05 combined alarm sounder and Xenon beacon and the E2xC1LD2 combined alarm sounder and LED beacon.


Coding:


ATEX / IECEx certification:
II 3G Ex nA IIC T3 Gc Ta -20°C to +40°C
II 3G Ex nA IIC T2 Gc Ta -20°C to +55°C
II 3D Ex tc IIIC 85°C Dc Ta -20°C to +40°C
II 3D Ex tc IIIC 100°C Dc Ta -20°C to +55°C

NEC Class / Zone ratings US:
Class I Zone 2 AEx nA IIC T3 Gc Ta -20°C to +40°C
Class I Zone 2 AEx nA IIC T2 Gc Ta -20°C to +55°C
Zone 22 AEx tc IIIC 85°C Dc Ta -20°C to +40°C
Zone 22 AEx tc IIIC 100°C Dc Ta -20°C to +55°C

CEC Class / Zone ratings Canada:
Class I Zone 2 Ex nA IIC T3 Gc Ta -20°C to +40°C
Class I Zone 2 Ex nA IIC T2 Gc Ta -20°C to +55°C Zone 22 Ex tc IIIC 85°C Dc Ta -20°C to +40°C
Zone 22 Ex tc IIIC 100°C Dc Ta -20°C to +55°C

NEC & CEC Class / Division Ratings for US / Canada:
Class I, Div 2, ABCD T2D Ta -20°C to +55°C
Class I, Div 2, ABCD T3 Ta -20°C to +55°C
Class II, Div 2, FG T5 Ta -20°C to +55°C
Class II, Div 2, FG T6 Ta -20°C to +40°C
Class III, Div 1&2 Ta -20°C to +55°C
