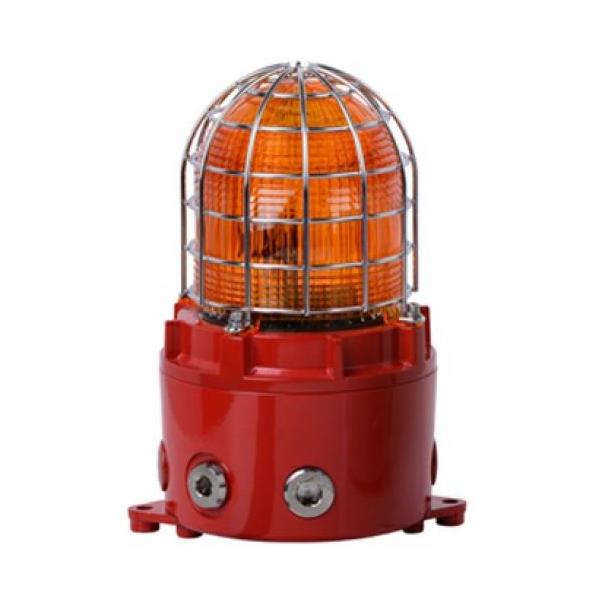

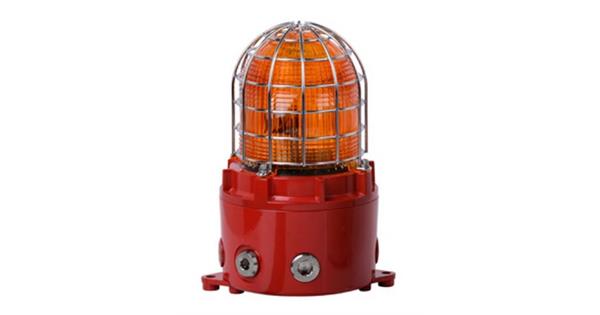

D1xB2X05 Explosion Proof Xenon Strobe Beacon 5J

The D1xB2X05 is a globally approved explosion proof 5 Joule Xenon beacon. The robust IP66, Type 4/4X corrosion proof LM6 marine grade aluminium alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications.

Description:

Approved to UL1638 and CAN/ULC S526 for fire alarm use the D1xB2X05 beacons produce a high output Xenon flash required for effective signalling in environments with elevated levels of ambient light. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The robust enclosure features a threaded flame path, four cable entries. Mounting options include surface via integrated lugs, pendant or by addition of optional multi direction stainless steel bracket. SIL1 compliant to IEC61508 (2010) as standard – SIL2 version available.

Features:

• Four flash rates: 1Hz, 1.3Hz, 1.5Hz & double flash
• Automatic synchronisation on multi-beacon system
• User replaceable Xenon tube secured against shock & vibration
• Stainless Steel guard included as standard
• Field replaceable UV stable lens colour filter
• Stopping plugs included
• 4 x side cable entries, 1 x pendant conduit entry
• Duplicate cable terminations (in & out for daisy-chain installations)
• UL 1638 Visible signaling devices for Fire Alarm
• CAN/ULC S526 Visible signaling device for Fire Alarm
