Ex-LED Plate GNEXP2N25R5GAC230AB2A1K

Black Enclosure & Plate LED GRP/316 IP66

Varenr:
GNEXP2N-MS11235
GNEXP2N-MS11235 E2S GNEXP2N25R5GAC230AB2 Ex-LED Plate GNEXP2N25R5GAC230AB2A1K Black Enclosure & Plate LED GRP/316 IP66
GNEXP2N-MS11235 E2S GNEXP2N25R5GAC230AB2 Ex-LED Plate GNEXP2N25R5GAC230AB2A1K Black Enclosure & Plate LED GRP/316 IP66 GNEXP2N-MS11235 E2S GNEXP2N25R5GAC230AB2 Ex-LED Plate GNEXP2N25R5GAC230AB2A1K Black Enclosure & Plate LED GRP/316 IP66
GNEXP2N-MS11235 E2S GNEXP2N25R5GAC230AB2 Ex-LED Plate GNEXP2N25R5GAC230AB2A1K Black Enclosure & Plate LED GRP/316 IP66
GNEXP2N-MS11235 E2S GNEXP2N25R5GAC230AB2 Ex-LED Plate GNEXP2N25R5GAC230AB2A1K Black Enclosure & Plate LED GRP/316 IP66 GNEXP2N-MS11235 E2S GNEXP2N25R5GAC230AB2 Ex-LED Plate GNEXP2N25R5GAC230AB2A1K Black Enclosure & Plate LED GRP/316 IP66
Lenker: | Manual | IECEx | ATEX | GA | DoC | DataSheet

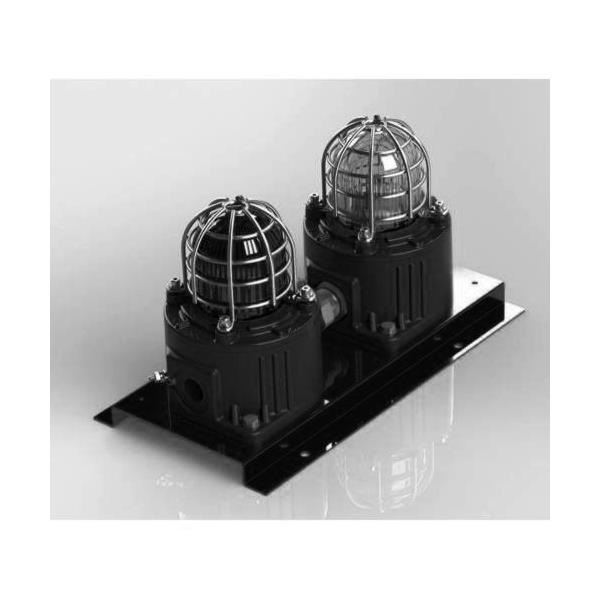

GNExB2-P2-2way Plated Assembly with 2 x GNExB2LD2 LED Multifunction Beacons

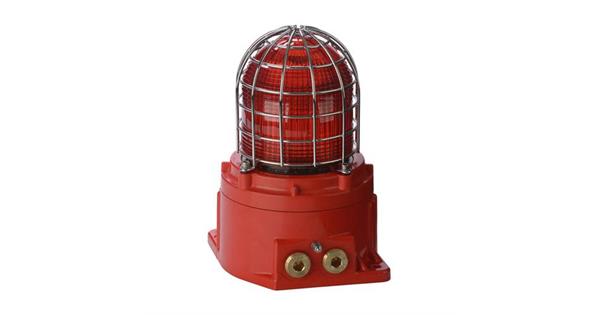

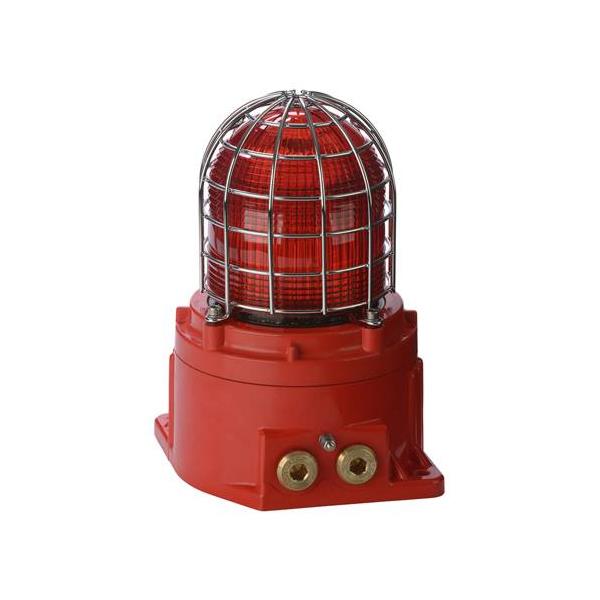

The GNExB2LD2 is an IECEx & ATEX approved explosion proof high output LED multifunction beacon. The robust IP66 corrosion proof GRP enclosure and extended temperature range ensures the GNExB2LD2 is suitable for all Zone 1, 2, 21 & 22 hazardous location signalling applications.


The GNExB2LD2 beacons utilise an array of high output LED's oriented to optimise visibility in any direction. The beacon can be configured as a steady status indicator or one of the effective flashing modes may be used for warning applications. The field replaceable colour filter enhances the light output and is constructed from UV stable PC.
The GRP enclosure features a threaded flame path, triple cable entries and a large termination area - all of which significantly reduce installation time.


Features:

• Robust, corrosion proof GRP (glass reinforced polyester) enclosure
• Ingress protection IP66
• Automatic synchronisation on multi-beacon systems
• Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
• High and low power Steady modes
• Three remotely selectable stages/channels on DC versions.
• Glass lens & Stainless Steel guard
• UV stable PC field replaceable lens colour filter
• Stainless steel fixings
• Triple cable entries
• Duplicate cable terminations (in & out for daisy-chain installations)

Approvals:

 • IECEx UL 15.0003X
   IEC 60079-0 : 2011
   IEC 60079-1 : 2014
   IEC 60079-31 : 2013

 • ATEX DEMKO 15ATEX1448X
   EN 60079-0 : 2012
   EN 60079-1 : 2014
   EN 60079-31 : 2014

Coding:

•II 2G Ex db IIC Gb T6 Ta -50°C to +65°C
•II 2G Ex db IIC Gb T5 Ta -50°C to +70°C
•II 2D Ex tb IIIC Db T85°C Ta -50°C to +70°C

Specification:

Source:Array of 4 x High Power Cree® LED's
Modes:1Hz flash (60 fpm)
   1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady
Eff. Intensity cd:174 cd - High Power Steady
Eff. Intensity cd:338 cd - 1Hz flash
Lens colours:Red, Amber, Yellow, Green, Blue, Clear & Magenta
Voltages DC: 24vDC
Voltages AC: 115vAC; 230vAC
Ingress protection:IP66

Enclosure:UV stable GRP (glass reinforced polyester)
Colour:Natural Red - can be provided in alternative colours
Cable entries: 3 x M20 ISO (2 stopping plugs inc.)
   Adaptors to M25, 1/2" & 3/4" NPT can be specified
Terminals:0.5 to 2.5mm²

Enclosure volume:<2 litres
Line monitoring:Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
LED life:60,000 Hours
Temp. range:-50° to +70°C (-58°F to +158°F)
Weight: 3.5kg / 7.7lbs

 *All candela data is representative of performance with clear lens at optimum voltage.


Part Codes:


Version:Part code:

Product type:GNExB2



Type:LD2LED Multifunctional Beacon



Voltage: [u]02418-54vDC
115103,5-126,5vAC
230207-253vAC



Cable Entry Type: [e]A3 x M20x1.5mm (Standard)
B2 x 1/2" NPT - adaptors
C2 x 3/4" NPT - adaptors
D2 x M25x1.5mm - adaptors
E1 x 1/2" NPT - adaptor
F1 x 3/4" NPT - adaptor
G1 x M25x1.5mm - adaptor
H3 x 1/2" NPT - adaptors
I3 x 3/4" NPT - adaptors
J3 x M25x1.5mm - adaptors



Adaptor/StoppingBBrass (Standard)
plug material: [m]NNickel Plated
SStainless Steel



Guard material: [s]1A2 304 Stainless Steel
2A4 316 Stainless Steel (Standard)



Product version: [v]A1IECEx & ATEX (Standard)



Enclosure colour: [x]RRed (Standard)
SSpecial - contact E2S for
alternative enclosure colours



Lens colour: /[y] 1Red
2A  Amber (Orange)
3Y  Yellow
4Green
5B  Blue
7Clear (Transparent)
8Magenta


Example part code:GNExB2 LD2 [u] [e] [m] [s] [v] [x] . [y]
Makes this part code :GNExB2 LD2 024 A B 2 A1  R . 1

Explanation of above
Product type:"GNExB2"
Type:"LD2" = LED Multifunctional Beacon
Voltage: [u]"024" = 20-28vDC
Cable Entry: [e]"A" = 3 x M20x1.5mm
Stopping plug[m]"B" = Brass stopping plug
Guard material: [s]"2" = A4 316 Stainless Steel Guard
Product version: [v]"A1" = IECEx & ATEX certified
Enclosure colour: [x]"R" = Red Enclosure colour
Lens colour: .[y] ."1" = (R) Red Lens colour


Effective Candela lens colour factor:

RedAmber Yellow GreenBlueClear
0.150.510.860.490.121.00


Current Consumption:

Version:Voltage:Steady High P.Steady Low P.Flashing 1Hz
Current:Current:Current:
 24vDC18-54vDC 240mA134mA110mA
115vAC103.5-126.5vAC95mA78mA90mA
230vAC207-253vAC48mA37mA45mA



Assemblies:

The GNExB2LD2 is available as a plated assembly configured with up to 4 x Xenon strobe or LED beacons with a GNExJ2 Ex d junction box or 5 x beacons without a junction box. Contact E2S for further information.
