Ex-LED Beacon D1xB2LD2AC115MS1A1R/A

LED 1-2Hz LM6-Alu IP66 Ex-db-IIC-T6-Gb

Varenr:
D1xB2LD2115MS1A1R.2
D1xB2LD2115MS1A1R.2 E2S D1xB2LD2115MS1A1R/A Ex-LED Beacon D1xB2LD2AC115MS1A1R/A LED 1-2Hz LM6-Alu IP66 Ex-db-IIC-T6-Gb
D1xB2LD2115MS1A1R.2 E2S D1xB2LD2115MS1A1R/A Ex-LED Beacon D1xB2LD2AC115MS1A1R/A LED 1-2Hz LM6-Alu IP66 Ex-db-IIC-T6-Gb D1xB2LD2115MS1A1R.2 E2S D1xB2LD2115MS1A1R/A Ex-LED Beacon D1xB2LD2AC115MS1A1R/A LED 1-2Hz LM6-Alu IP66 Ex-db-IIC-T6-Gb
D1xB2LD2115MS1A1R.2 E2S D1xB2LD2115MS1A1R/A Ex-LED Beacon D1xB2LD2AC115MS1A1R/A LED 1-2Hz LM6-Alu IP66 Ex-db-IIC-T6-Gb
D1xB2LD2115MS1A1R.2 E2S D1xB2LD2115MS1A1R/A Ex-LED Beacon D1xB2LD2AC115MS1A1R/A LED 1-2Hz LM6-Alu IP66 Ex-db-IIC-T6-Gb D1xB2LD2115MS1A1R.2 E2S D1xB2LD2115MS1A1R/A Ex-LED Beacon D1xB2LD2AC115MS1A1R/A LED 1-2Hz LM6-Alu IP66 Ex-db-IIC-T6-Gb
Lenker: | GA | UL-CoC | DataSheet | Wiring | Manual | CSFM | IECEx | DoC | ATEX | Brackets

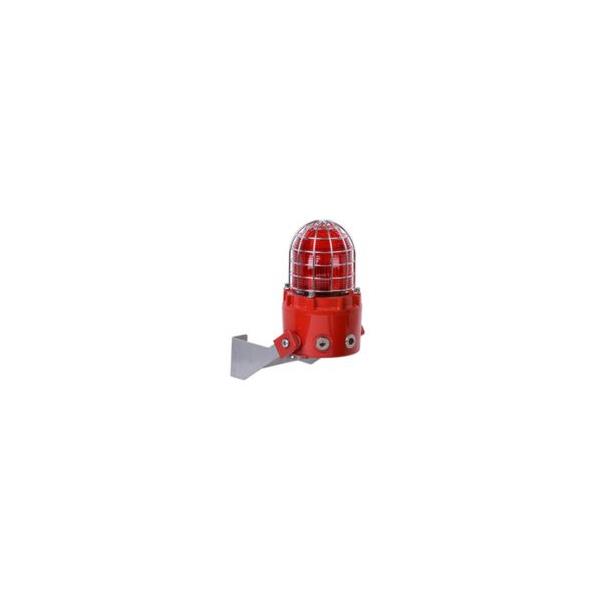

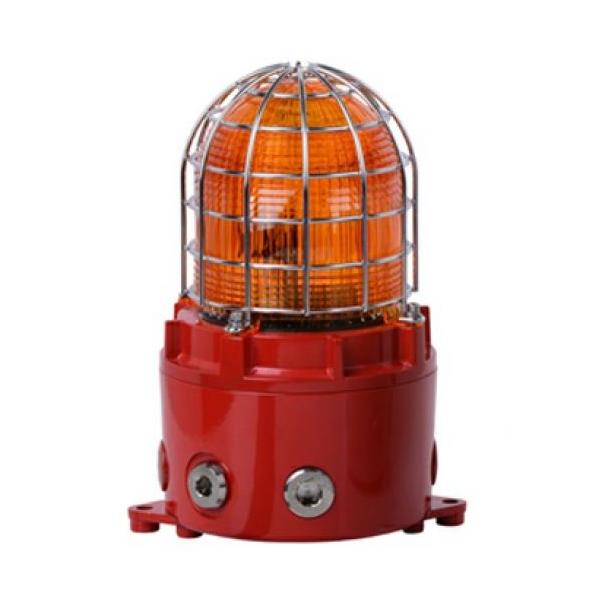

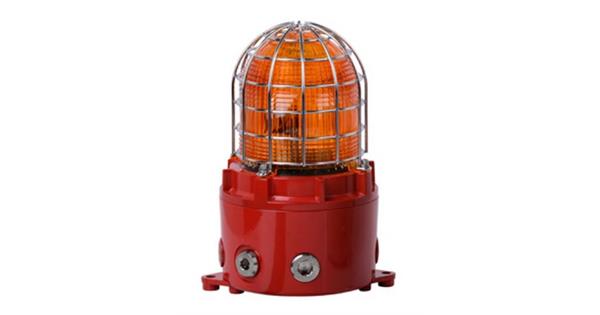

D1xB2LD2 Explosion Proof LED Multi-function Beacon



The D1xB2LD2 is a globally approved explosion proof multi-function LED beacon. The robust IP66, Type 4/4X corrosion proof LM6 marine grade aluminium alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications.



Description:
The D1xB2LD2 beacons produce a high output LED flash required for effective signalling in environments with elevated levels of ambient light. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The robust enclosure features a threaded flame path, four cable entries. Mounting options include surface via integrated lugs, pendant or by addition of optional multi direction stainless steel bracket. SIL1 compliant to IEC61508 (2010) as standard.



Features:

  • Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady modes
  • Three remotely selectable stages/channels on DC versions.
  • Automatic synchronisation on multi-beacon system
  • Stainless Steel guard included as standard
  • Field replaceable UV stable lens colour filter
  • Stopping plugs included
  • 4 x side cable entries, 1 x pendant conduit entry
  • Stainless steel fasteners
  • Duplicate cable terminations (in & out for daisy-chain installations)
