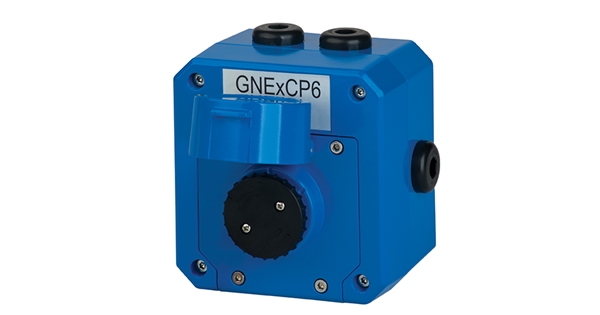

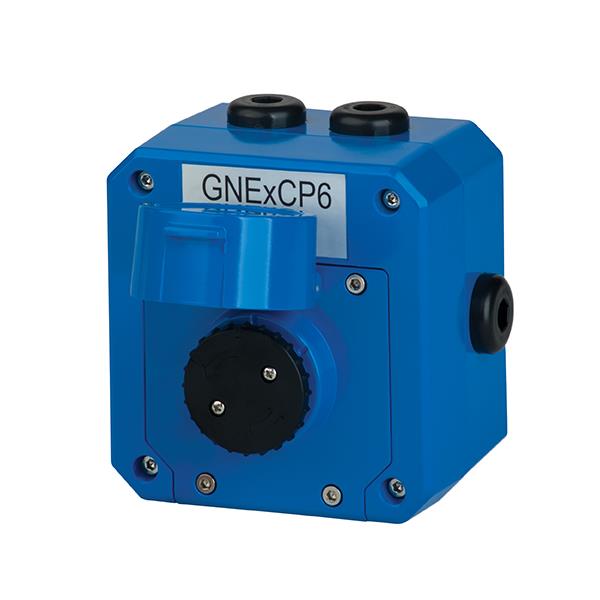

Ex GRP Push Button CallPoint GNEXCP6B-PB

GNEXCP6B-PB-S-N-S-N-RD-24-E1K0R-S10KR

Varenr:
GNEXCP6B-PB-MS11227
GNEXCP6B-PB-MS11227 E2S  Ex GRP Push Button CallPoint GNEXCP6B-PB GNEXCP6B-PB-S-N-S-N-RD-24-E1K0R-S10KR
GNEXCP6B-PB-MS11227 E2S  Ex GRP Push Button CallPoint GNEXCP6B-PB GNEXCP6B-PB-S-N-S-N-RD-24-E1K0R-S10KR
Ex Push Button Call Point GNEXCP6B-PB-S-N-S-N-RD-24-E1K0R-S10KR - RED

Part code: GNEXCP6B-PB-S-N-S-N-RD-24-E1K0R-S10KR

 Part Codes  Chosen type  Available Options
 Type:  GNExCP6B  GNExCP6B
 Version:  PB  PB: Push Button
 Switch type:  S
 S: SPCO
 D: DPCO
 Stopping Plug type:  N
 N: Nylon
 B: Brass
 S: Stainless Steel
 Terminal type:  S
 S: Standard
 D: DIN Rail
 Duty Label:  N
 N: Not required
 P: Metalisedpolyester (self adhesive)
 S: Stainless Steel
 Body Colour:  RD
 RD: Red
 BL: Blue
 GN: Green
 YW: Yellow
 RW: Red/White
 YB: Yellow/Black
 BK: Black
 Nominal Voltage DC:  24  48 / 24 / 12 / 06
 EOL Module:   1KR   ExxxR: Resistor e.g.470 Ohm = E470R
 ED1: Diode IN4007: ED1
 ExxxZ: Zener e.g. 5.1V = E5V1Z
 Series Module:  10KR   SxxxR: Resistor e.g. 2.2K Ohm = S2K2R
 ED1: Diode IN4007: ED1
 SxxxZ: Zener e.g.12V = S12VZ
 L.E.D.: LED

The GNExCP6B manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. All types are available with EOL or series resistors, diode or Zener diodes or an L.E.D. indicator and also with either single or double pole change over
switches. All versions are certified to ATEX and IECEx standards.

NB: For applications that do not require monitoring resistors, diodes or inidcator L.E.D.’s please see the GNExCP6A-PB version.

Specification:
GNExCP6B:
II 2G Ex e d mb IIC T4 Gb
II 2D Ex t IIIC T80°C Db
IP66

Ambient: Ta = -40°C to +50°C
Ingress protection: IP66
Housing material: GRP - glass reinforced polyester (UV stable)
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries.
Stopping plugs: 2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional
Terminals: 6 x 4.0mm² / 8 x 2.5mm²

Versions:
The GNExCP6B call point can contain a maximum of two resistor or diode E.O.L. or series modules. The L.E.D. indicator can be combined with one E.O.L. resistor or diode.


Options:
• Alternative housing colours are available to meet specific requirements.
• Single or double pole c/o switch.
• DIN rail mounted terminal blocks: 8 x 2.5mm².
• Metalised polyester or stainless steel “Duty” label.
• Series and/or End of Line resistors, diodes & Zener diodes
• Indicator L.E.D.

Approvals:
• ATEX certificate: Sira 09ATEX3286X, IEC 60079-0:2007 Ed 5, EN 60079-1:2004, EN 60079-7:2007, IEC 60079-18:2009 Ed 3, EN 61241-1:2004
• IECEx certificate: IECEx SIR 09.0121X, IEC 60079-0:2007-10 Edition: 5, IEC 60079-1:2003 Edition: 5, IEC 60079-18:2009 Edition: 3, IEC 60079-7:2006-07 Edition: 4, IEC 61241-1:2004 Edition: 1

P.S: See DataSheet and other documents under Links/Lenker for further details!
