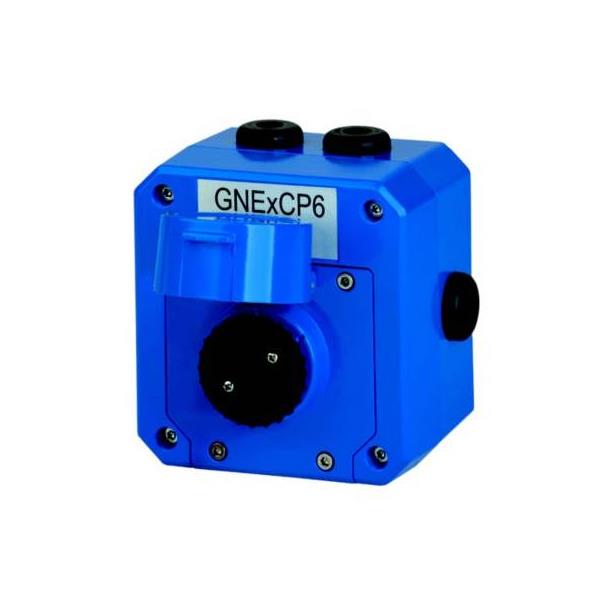

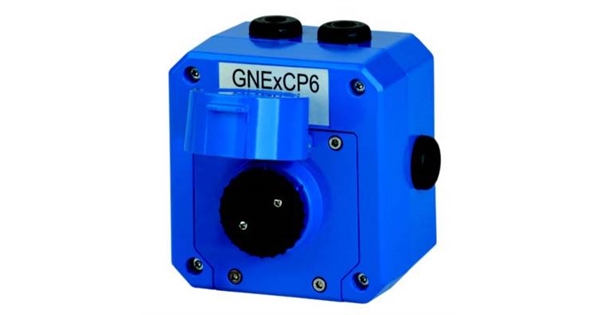

Ex Call Point GNExCP6A-PT Tool Reset YB

GRP IP66 II2G Exed IICT6Gb YELLOW/BLACK

Varenr:
GNExCP6A-PT-DNS-YB
GNExCP6A-PT-DNS-YB E2S GNExCP6A-PT-D-N-S-YB Ex Call Point GNExCP6A-PT Tool Reset YB GRP IP66 II2G Exed IICT6Gb YELLOW/BLACK
GNExCP6A-PT-DNS-YB E2S GNExCP6A-PT-D-N-S-YB Ex Call Point GNExCP6A-PT Tool Reset YB GRP IP66 II2G Exed IICT6Gb YELLOW/BLACK
GNExCP6A-PB Tool Reset Call Point - Yellow/Black

Part code: GNExCP6A-PT-D-N-S-YB
Version: PT = Tool Reset
Switch Type: D = Double Pole
Stopping Plugs: N = Nylon
Duty Label: S = Stainless Steel
Body Colour: YB = Yellow/Black

The GNExCP6A manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. Available with either single or double pole change over switches. All versions are certified to ATEX and IECEx standards.

Specification:
GNExCP6A: II 2G Ex e d IIC T6 Gb
II 2D Ex t IIIC T60°C Db
IP66
Ambient: Ta = -40°C to +55°C
Ingress protection: IP66
Housing material: GRP - glass reinforced polyester (UV stable)
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries.
Stopping plugs: 2 x Ex e nylon plugs as standard. Brass and stainless steel plugs optional.
Terminals: 6 x 4.0mm² cables.

Note:
For applications requiring monitoring resistors, diodes or inidcator LED’s please see the GNExCP6B-PB version. Data sheet reference: 1.3.08.

Options:
• Alternative housing colours are available to meet specific requirements.
• Single or double pole c/o switch.
• Metalised polyester or stainless steel  Duty label.

Approvals:
• ATEX certificate: Sira 09ATEX3286X, IEC 60079-0:2007 Ed 5, EN 60079-1:2004, EN 60079-7:2007, IEC 60079-18:2009 Ed 3, EN 61241-1:2004
• IECEx certificate: IECEx SIR 09.0121X, IEC 60079-0:2007-10 Edition: 5, IEC 60079-1:2003 Edition: 5, IEC 60079-18:2009 Edition: 3, IEC 60079-7:2006-07 Edition: 4, IEC 61241-1:2004 Edition: 1
