Ex-z2 Combi E2X C1 X05F AC230 BN2A1B/R
113dB(A) 5J IP64/IP66 IECEx/ATEX Zone2
Varenr:
E2XC1X05FAC230BN2B/R
|
|

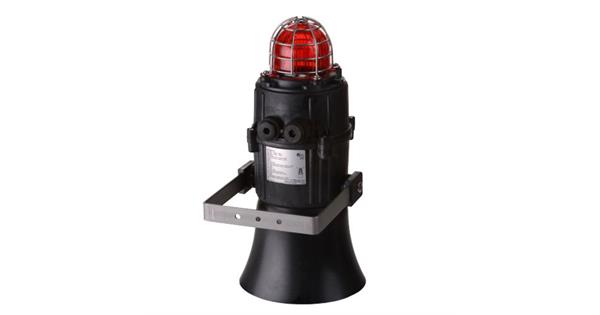

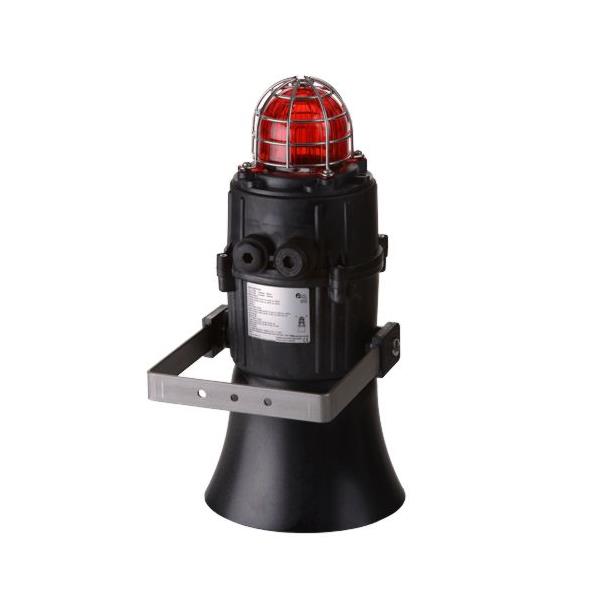

E2xC1X05F Combination Alarm Horn & Xenon Strobe Beacon
The hazardous location E2xC1X05F combined alarm sounder and Xenon strobe beacon is UL/cULs approved for Class I Div 2 and Class II Div 2 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
The E2xC1X05F combines a 116dB(A) alarm sounder with a 5 Joule Xenon strobe beacon providing a complete audio-visual signalling solution whilst reducing the installation time and costs associated with multiple unit installations.
The E2x range features enclosures manufactured from lightweight, corrosion proof PPS and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.
Features:
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.
• Stainless Steel dome guard as standard
• Xenon tube mechanically secured against vibration/shock.
• User replaceable Xenon tube assembly.
• Automatic synchronisation on multi-sounder system.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalisation available on request.
• Available with custom tone configurations and frequencies.
| Approvals: | |
| | |
| ATEX certificate: | DEMKO 06 ATEX 0421554X |
| | |
| IECEx certficate: | IECEx ULD 14.0012X |
| | |
| UL/cUL File ref: | E230764 |
| Specification: | |
| | |
| Alarm Horn Sounder: | |
| Maximum output: | 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m] |
| Nominal output: | 113dB(A) @ 1m +/- 3dB - Tone 2 |
| [104dB(A) @ 10ft/3m] |
| No. of tones: | 45 (UKOOA/PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 113dB(A) Min. 105dB(A) - Tone 2 |
| Effective range: | 100m/328ft @ 1KHz |
| | |
| Xenon Strobe Beacon: | |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Effective Intensity cd: | 250 cd - calculated from energy (J) |
| Peak Candela: | 34,122 cd* - measured ref. to I.E.S. |
| Effective Intensity cd: | 108 cd* - measured ref. to I.E.S. |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear |
| & Magenta |
| | |
| General: | |
| Voltages: | 24vDC; 48vDC; 115vAC; 230vAC |
| Ingress protection: | IP rating per EN60079-0:IP64 |
| IP rating per EN60529:IP66 |
| Type rating per UL50E/NEMA250:4/4X/13 |
| Enclosure material: | UL94V0 PPS & ABS |
| Lens material: | Borosilicate glass dome with PC |
| prismatic lens cover. |
| Guard: | Stainless Steel dome guard as standard |
| Cable entries: | Dual M20x1.5 or 1/2"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included |
| EOL can be factory fitted |
| Operating temp: | -20 to +55°C [-4° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | DC: 3.00Kg/6.6Ibs AC: 3.50kg/7.7Ibs |
* Candela measurements representative of performance with clear lens at optimum voltage.
SPL readings are at nominal voltage, typically +/-3dB and are for indication purposes only.
Where applicable, reduce outputs by 5dB when a 10-30vdc unit is supplied 12vdc.
Current Consumption:
| Version: | | Voltage | Current: | Voltage | Current: |
| | Sounder: | | Beacon: | |
| 24vDC | | 10-30vDC | 284mA | 20-28vDC | 275mA |
| 48vDC | | 38-58vDC | 146mA | 42-58vDC | 145mA |
| 115vAC | 50/60Hz | +/-10% | 104mA | +/-10% | 80mA |
| 230vAC | 50/60Hz | +/-10% | 54mA | +/-10% | 30mA |
Part Codes:
| Part Code: | Ident.: | Description: |
| | | |
| Product type: | E2xC1X05 | Combined alarm horn & Xenon |
| | | |
| Type: | F | Flare re-entrant horn |
| | | |
| Voltage: [u] | DC024 | 24vDC |
| DC048 | 48vDC |
| AC115 | 115vAC 50/60Hz |
| AC230 | 230vAC 50/60Hz |
| | | |
| Cable entries: [e] | A | M20x1.5 & ½” NPT |
| B | M20x1.5 & M20x1.5 (Default) |
| C | ½” NPT & ½” NPT |
| | | |
| Stopp. plug matr.:[m] | N | Nylon (Default) |
| | | |
| Bracket & Guard: [s] | 1 | 304 (A2) Stainless Steel (Default) |
| 2 | 316 (A4) Stainless Steel |
| | | |
| Approvals: [v] | A1 | UL, cULs, IECEx & ATEX (Default) |
| | | |
| Enclosure: [x] | B | Black (Default) |
| | | |
| Lens colour: /[y] | R | Red |
| A | Amber (Orange) |
| Y | Yellow |
| G | Green |
| B | Blue |
| C | Clear (Transparent) |
| M | Magenta |
| Example part code: | E2x C1X05 F [u] [e] [m] [s] [v] [x] / [y] |
| E2x C1X05 F DC024 B N 1 A1 B / R |
| Explanation of the above: | |
| Product type: | "E2x C1X05 F" |
| Voltage: [u] | "DC024" = 24vDC (20-28vDC) |
| Cable Entry: [e] | "B" = M20x1.5 & M20x1.5 |
| Stopp. plug matr.:[m] | "N" = Nylon |
| Bracket & Guard: [s] | "1" = 304 (A2) Stainless Steel Bracket & Guard |
| Approvals: [v] | "A1" = UL, cULs, IECEx & ATEX |
| Enclosure colour: [x] | "B" = Black Enclosure colour |
| Lens colour: /[y] | /"R" = Red Lens colour |
NOTE: The E2xC1X05 supersedes the E2xCS112-5, maintaining compatibility with existing installations.
| Coding: |
| |
ATEX / IECEx certification
II 3G Ex nA IIC T3 Gc Ta -20°C to +40°C
II 3G Ex nA IIC T2 Gc Ta -20°C to +55°C
II 3D Ex tc IIIC 85°C Dc Ta -20°C to +40°C
II 3D Ex tc IIIC 100°C Dc Ta -20°C to +55°C
NEC Class / Zone ratings US
Class I Zone 2 AEx nA IIC T3 Gc Ta -20°C to +40°C
Class I Zone 2 AEx nA IIC T2 Gc Ta -20°C to +55°C
Zone 22 AEx tc IIIC 85°C Dc Ta -20°C to +40°C
Zone 22 AEx tc IIIC 100°C Dc Ta -20°C to +55°C
CEC Class / Zone ratings Canada
Ex nA IIC T3 Gc Ta -20°C to +40°C
Ex nA IIC T2 Gc Ta -20°C to +55°C
Ex tc IIIC 85°C Dc Ta -20°C to +40°C
Ex tc IIIC 100°C Dc Ta -20°C to +55°C
NEC & CEC Class / Division Ratings for US / Canada
Class I, Div 2, ABCD T2D Ta -20°C to +55°C
Class I, Div 2, ABCD T3 Ta -20°C to +40°C
Class II, Div 2, FG T5 Ta -20°C to +55°C
Class II, Div 2, FG T6 Ta -20°C to +40°C
Class III, Div 1&2 Ta -20°C to +55°C |
