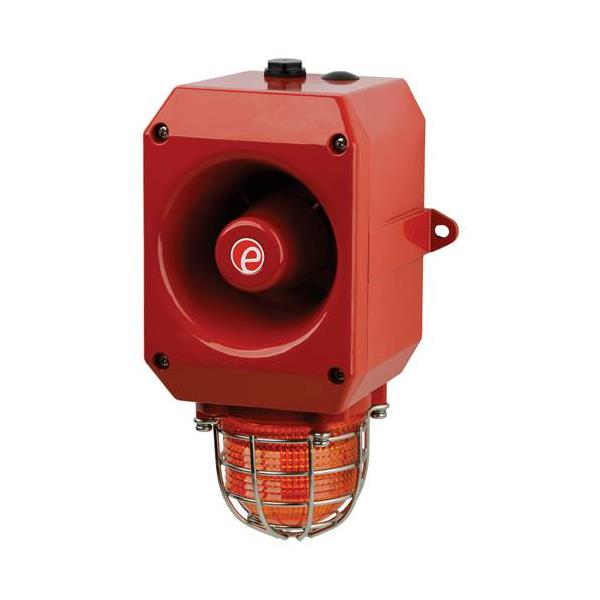

Ex Combi IS-DL105L-R/A 16-28vDC BLUE

105dB(A) LED IP66 Ex ia IIC T4 49T

Varenr:
ISDL105LRB
ISDL105LRB E2S IS-DL105L-R/B Ex Combi IS-DL105L-R/A 16-28vDC BLUE 105dB(A) LED IP66 Ex ia IIC T4 49T
ISDL105LRB E2S IS-DL105L-R/B Ex Combi IS-DL105L-R/A 16-28vDC BLUE 105dB(A) LED IP66 Ex ia IIC T4 49T
Lenker: | DoC | DataSheet | GA | ATEX | Manual | IECEx

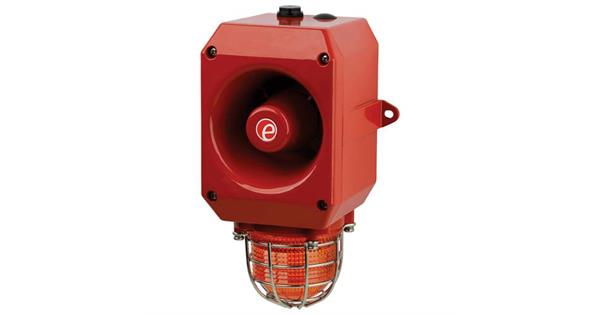

IS-DL105L Intrinsically Safe Alarm Sounder & LED Beacon


The IS-DL105 unit is an intrinsically safe field mounting combined alarm horn with L.E.D. beacon/light which provides a a loud audible and bright flashing visual signal utilising a common zener barrier or galvanic isolator.

The alarm horn features an alarm accept function - by closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again.

Certified for use in application requiring Ex ia equipment to ATEX & IECEx the IS-DL105 is a globally accepted solution to fire or process control signalling.


Features:

• Input overload and reverse current protection
• Prismatic lens optimises L.E.D effectiveness
• Marine grade aluminium enclosure
• Auto synchronised sound output
• External mounting lugs
• Duplicate cable terminations (in & out for daisy-chain installations)
• Available with custom tone configurations and frequencies

Approvals:

ATEX certificate: SIRA 04ATEX2301X,
ATEX certificate: SIRA 04ATEX2302X,
EN 60079-0 : 2012,EN 60079-11 : 2012,
IEC 60079-26 : 2014

IECEx certificate: IECEx SIR 04.0038X,
IECEx certificate: IECEx SIR 04.0039X,
IEC 60079-0 : 2011, IEC 60079-11 : 2011,
IEC 60079-26 : 2014


Specification:

Sounder/Horn:

Nominal output:105dB(A) @ 1m +/- 3dB - Tone 2
[96dB(A) @ 10ft/3m]
No. of tones:49 (UKOOA/PFEER compliant)
No. of stages:3
Volume control:Max. 105dB(A); Min. 96dB(A) - Tone 2
Effective range:60m/197ft @ 1KHz

Beacon/light:

Light source:Array of 6 high intensity L.E.D’s
L.E.D. colours:Red, Amber, Blue & Green
Standalone mode:2Hz (2 double flashes per second)
Flash rate:On : 1 Hz (1 double flash per second) Silenced: 2 Hz
(2 double flashes per second) (alarm accepted)

General:

Voltage:16-28vdc via Zener barrier or galvanic isolator
Current:25mA typical when powered from 24v
supply via 28v 300 Ohm Zener barrier
Ingress protection:IP66
Rating:Continuous
Enclosure matl:A1-Si12 Marine Grade Aluminium
Enclosure colour:Red (RAL3000), Grey (RAL7038)
Fixings:Stainless Steel
Cable entries:2 x M20
Terminals:0.5 - 2.5mm² (20-14 AWG)
Operating temp:-40° to +60°C [-40° to +140°F]
Storage temp:-40° to +70°C [-40° to +158°F]
Relative humidity:90% at 20°C [68°F]
Weight: 2.10kg/4.62Ibs


Part Codes:

IS-DL105-[x]/[y]
ATEX / IECEx
II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)

[x] : Enxclosure colour: R: Red, G: Grey
[y] : LED colour R: Red, A: Amber, B: Blue, G: Green

May be powered from any certified Zener barrier or galvanic isolator
whose output parameters do not exceed :
Uo : 28VDC     Io : 93mA     Po : 1.2W
