Ex Combi STExC1X05 R DC024 AS2A1R YELLOW

SS316L+304 IP66 110dB(A)5J ExdbIICGbT6

Varenr:
STEXC105RDC24AS3A1R3
STEXC105RDC24AS3A1R3 E2S STExC1X05F024AS2R/Y Ex Combi STExC1X05 R DC024 AS2A1R YELLOW SS316L+304  IP66 110dB(A)5J ExdbIICGbT6
STEXC105RDC24AS3A1R3 E2S STExC1X05F024AS2R/Y Ex Combi STExC1X05 R DC024 AS2A1R YELLOW SS316L+304  IP66 110dB(A)5J ExdbIICGbT6
Lenker: | IECEx | ATEX | GA | DoC | DataSheet | Manual

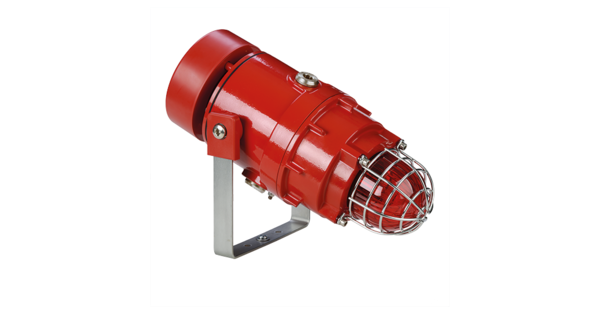

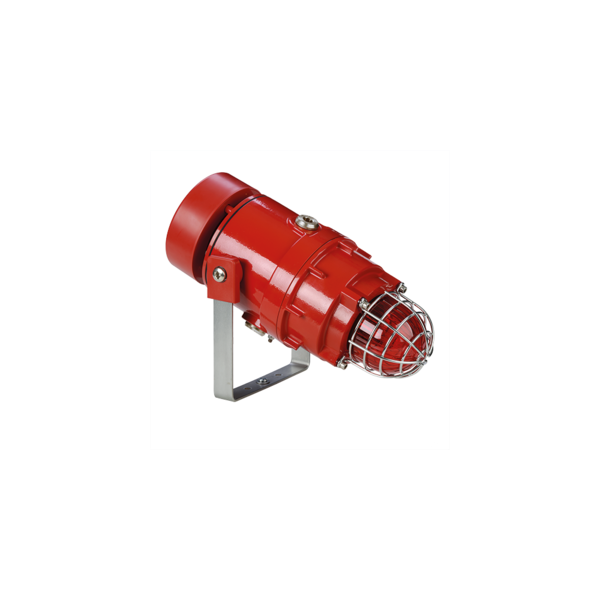

STEx C1X05 F Alarm Horn & Xenon Strobe Radial

in 316L Stainless Steel enclosure and 304 Bracket/Guard.
Entries: 4 x M20
Stopping plug: Stainless Steel
Enclosure Colour: Red



117dB(A) horn & 5 Joule Xenon. The STExC1X05F is a high output alarm horn sounder with re-entrant flare horn combined with a 500,000cd Xenon strobe beacon. The robust IP66 316L stainless steel enclosure ensures the STExC1X05F is suitable for all IECEx & ATEX Zone 1, 2, 21 & 22 explosion proof signaling applications.


The alarm horn & Xenon strobe allow simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently selectable. Each of the available 4 stage/channels can be remotely triggered e.g. via an external relay.


Features:

 • Robust corrosion proof 316L stainless steel enclosure
 • High output; up to 117dB(A)
 • 4 remotely selectable alarm stages/channels
 • Positive or negative line stage/channel switching
 • Choice of 64 alarm tone frequencies
 • User selectable strobe flash rates
 • Field replaceable lens colour filter
 • Automatic synchronisation on multi-beacon & sounder systems
 • Continuously rated
 • Compact form factor
 • Stainless steel fixings
 • Ratchet adjustable 316 stainless steel bracket
 • 316 Stainless steel stopping plugs included
 • 3 x cable entries
 • Duplicate cable terminations (in & out for daisy-chain installations)
 • Available with custom tone configurations and frequencies


Approvals:

IECEx ULD 16.0017X
IEC 60079-0 : 2011
IEC 60079-1 : 2014
IEC 60079-31 : 2013

ATEX DEMKO 16 ATEX 1466X
EN 60079-0 : 2012 + A11 : 2013
EN 60079-1 : 2014
EN 60079-31 : 2014

Coding:

  • II 2G Ex db IIC Gb T6 Ta -50°C to +40°C
  • II 2G Ex db IIC Gb T5 Ta -50°C to +55°C
  • II 2G Ex db IIC Gb T4 Ta -50°C to +70°C
  • II 2D Ex tb IIIC Db T110°C Ta -50°C to +70°C
  •


    Specification:

    Alarm Horn:
    Maximum output:117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
    Nominal output:113dB(A) @ 1m +/- 3dB - Tone 2
    [104dB(A) @ 10ft/3m]
    No. of tones:64 (UKOOA / PFEER compliant)
    No. of stages:4
    Volume control:Adjustable -12dB(A)
    Effective range:125m/410ft @ 1KHz
    Supply Voltages:24vDC; 115vAC; 230vAC
    Stage switching:DC units: negative or positive
    AC units: common supply line

    Strobe Beacon:
    Energy:5 Joules (5Ws)
    Flash rates:Option 1: 1Hz (60 fpm)
    Option 2: 1.5Hz (90 fpm)
    Option 3: Double Strike
    Peak Candela:500,000 cd - calculated from energy (J)
    Eff. Intensity:250 cd - calculated from energy (J)
    Peak Candela:46,976 cd* - measured ref. to I.E.S.
    Eff. Intensity:143 cd* - measured ref. to I.E.S.
    Lens colours:Red, Amber, Yellow, Green, Blue, Clear & Magenta
    Tube life:Emissions are reduced to 70% after 8 million flashes

    General:
    Ingress protection:EN60529: IP66
    Enclosure matl:316L Stainless Steel
    Enclosure finish:Chromated & powder coated
    Colour:RAL3000 Red
    Cable entries:3 x M20 ISO (2 x stopping plugs included as standard)
    Adaptors to M25, 1/2" & 3/4" NPT can be specified
    Terminals:0.5 - 2.5mm² (20-14 AWG)
    Enclosure volume:<2 litres
    Line monitoring:Blocking diode included
    EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
    or diode (DC versions) can be fitted
    Grounding stud:M5
    Temp. range:-50° to +70°C (-58°F to +158°F)
    Relative humidity:90% at 20°C [68°F]
    Weight: ?kg / ?lbs

     *All candela data is representative of performance with clear lens at optimum voltage.


    Part Codes:                       STExC1X05 F [u] [e] [m] [s] [x] . [y]


    Version:Part code:

    Product type:STExC1X05
    Horn type:RRadial Horn

    Voltage: [u]01212vDC (10-14vDC)
    02424vDC (20-28vDC)
    04848vDC (42-54vDC)
    230230vAC (220-240vAC)

    Cable Entry Type: [e]A3 x M20x1.5mm (Standard)
    B2 x 1/2" NPT - adaptors
    C2 x 3/4" NPT - adaptors
    D2 x M25x1.5mm - adaptors
    E1 x 1/2" NPT - adaptor
    F1 x 3/4" NPT - adaptor
    G1 x M25x1.5mm - adaptor
    Note:M20 stopping plugs for unused
    entries supplied with all options

    Adaptor/StoppingBBrass
    plug material: [m]NNickel Plated
    SStainless Steel (Standard)

    Guard material: [s]1A2 304 Stainless Steel
    2A4 316 Stainless Steel (Standard)

    Enclosure colour: [x]RRed (Standard)

    Lens colour: .[y] .1Red
    .2A  Amber (Orange)
    .3Y  Yellow
    .4Green
    .5B  Blue
    .7Clear (Transparent)
    .8Magenta


    Example part code:STExC1X05 F [u] [e] [m] [s] [x] . [y]
    STExC1X05 F 024 A S 2 R . 1

    Explanation of tehe above:
    Product type:"STExC1X05"
    Horn Type:"F" = Flare re-entrant horn
    Voltage: [u]"024" = 24vDC (20-28vDC)
    Cable Entry: [e]"A" = 3 x M20x1.5mm
    Stopping plug[m]"S" = Stainless Steel (Standard)
    Bracket material: [s]"2" = A4 316 Stainless Steel Guard
    Enclosure colour: [x]"R" = Red Enclosure colour
    Lens colour: .[y] ."1" = (R) Red Lens colour


    Effective Candela lens colour factor:

    RedAmber Yellow GreenBlueClear
    0.230.700.930.250.241.00


    Current Consumption:

    Voltage:Range:Alarm Horn:Xenon Stobe:Combined:
    Current:Current:Current:
     12vDC10-14vDC 146mA678mA824mA
     24vDC20-28vDC 185mA323mA508mA
     48vDC42-54vDC 138mA198mA336mA
    230vAC220-240vAC21mA79mA106mA
      50/60Hz

     Nominal current. Alarm horn sounder: Tone 2, Xenon Strobe: 1Hz Flash Rate
