Ex PA Loudspeaker D1xL1F R008 AN1A1G

113dB+/-3dB@15W@1m - IP66 - ClassI/Div1

Varenr:
D1xL1FR008AN1A1G
D1xL1FR008AN1A1G E2S D1xL1FR008AN1A1G Ex PA Loudspeaker D1xL1F R008 AN1A1G 113dB+/-3dB@15W@1m - IP66 - ClassI/Div1
D1xL1FR008AN1A1G E2S D1xL1FR008AN1A1G Ex PA Loudspeaker D1xL1F R008 AN1A1G 113dB+/-3dB@15W@1m - IP66 - ClassI/Div1
Lenker: | DoC | Manual-GAS | GA | DataSheet | Manual-DUST | UL

D1xL1F PA Loudspeakers 15W

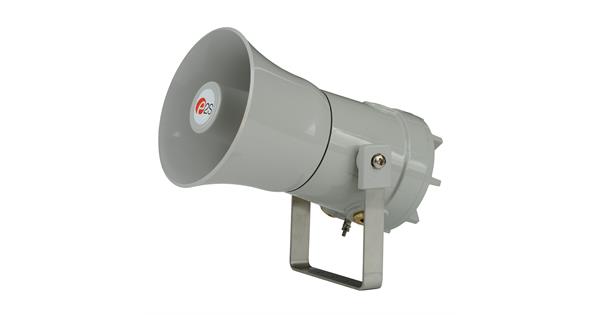

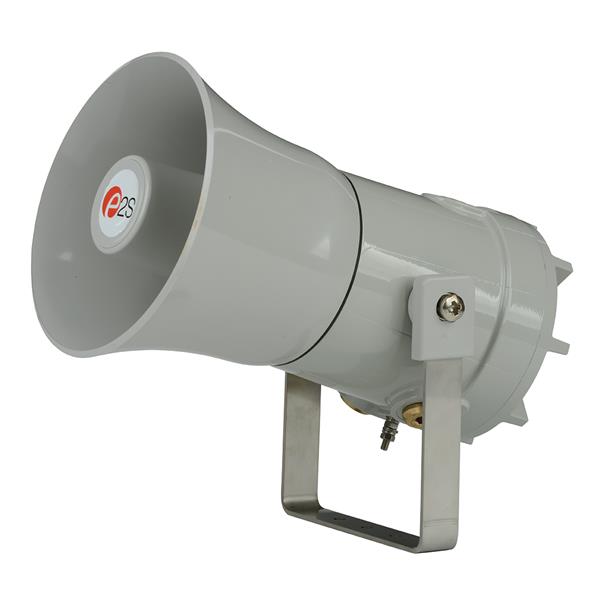

The D1xL1F is a 15W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xL1F is suitable for all Class I & II Division 1 & Zone 1 & 20 explosion proof applications.

The re-entrant flare horn is high impact, fire retardant ABS and is field replaceable - the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries, and large termination areas. The termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.



Features:


•  High output
•  Compact form factor
•  Multiple transformer tappings
•  Field replaceable flare component
•  Robust corrosion proof aluminium enclosure
•  Ratchet adjustable stainless steel bracket
•  Stainless steel fixings
•  Triple cable entries
•  Duplicate cable terminations
•  Threaded cover joint for fast installation


Approvals:

UL File ref: E230764
UL1203 Ed. 5
CAN/CSA C22.2 No. 25-1966
CSA C22.2 No. 30-M1986
CSA C22.2 No. 205-12
UL1480 Ed. 6
Commercial and professional use

CSFM listing: 7136-2279:0504



Coding:

•  A1: Gas version
   NEC / CEC:
   Class I Div 1 ABCD T6 Ta -40°C to +70°C
   Class I Div 2 ABCD T6 Ta -40°C to +70°C
   Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
•  D1: Dust version
   NEC / CEC:
   Class II Div 1 FG T6 Ta -40°C to +70°C
   Class II Div 2 FG T6 Ta -40°C to +70°C
   Class III Div 1 & 2
   Zone 20, 21, 22 IIIB Ta -40°C to +70°C
•  Protection concept: Ex d / AEx d




Specification:


SPL (Gas version):102dB +/-3dB @ 1W @ 1m (Pink)
113dB +/-3dB @ 15W @ 1m (Rated)
SPL (Dust version):83dB +/-3dB @ 1W @ 1m (Pink)
95dB +/-3dB @ 15W @ 1m (Rated)
Rated power:15 Watts RMS
70v line tappings:15W/7.5W/3W/1W
(z=336.67 Ohms/653.33 Ohms/1.6k Ohms
/4.9k Ohms)
Low impedance:8 Ohm or 16 Ohm
Directivity Index:6.2 @ 1kHz & 16.0 @ 4kHz [dB on-axis]
Frequency range:400Hz to 8000 Hz
DC Line monitoring:2.2µF Capacitor (Transformer)
470µF Capacitor (Low impedance)
Ingress protection:EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material:Marine grade aluminium LM6- copper free
Chromated & powder coated - corrosion proof
Colour:Red (RAL3000), Grey (RAL7038)
Cable entries:1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Terminals:0.5 - 2.5mm² (20-14 AWG)
Grounding stud:M5
Operating temp:-40° to +70°C [-40° to +158°F]
Storage temp:-50° to +70°C [-58° to +158°F]
Relative humidity:95% - Additional tropicalisation is recommended
for applications where both high relative humidity
and high ambient temperatures exist
Weight:70V line: 4.3kg/9.5Ibs
Low imp.: 4.0kg/8.7Ibs


Part Codes:


Version:Part code:
Product type:D1xL1
Horn type:FFlare re-entrant horn

Type:V07070V Line Transformer
R0088 Ohm Low impedance
R01616 Ohm Low impedance

Cable Entry Type: [e]A1 x 1/2"NPT & 2 x M20 x 1.5mm
B1 x 1/2"NPT & 2 x 1/2"NPT
C1 x 1/2"NPT & 2 x 3/4"NPT

Adaptor/StoppingBBrass
plug material: [m]NNickel Plated
SStainless Steel

Bracket material: [s]1A2 304 Stainless Steel
2A4 316 Stainless Steel
3A2 304 St/St with Equip. Tag
4A4 316 St/St with Equip. Tag (304)

Product version: [v]A1Gas environments Class I/Zone1
D1Dust environments Class II/Zone 20

Enclosure colour: [x]GGrey RAL7038
R Red RAL3000

Example:D1xL1FR008 [e][m][s][v][x]
D1xL1FR008AB1A1R




Ratings:

A1:Gas version
NEC / CEC:Class I Div 1 ABCD T6 Ta -40°C to +70°C
Class I Div 2 ABCD T6 Ta -40°C to +70°C
Class I Zone 1 IIC T6 Ta -40°C to +70°C
D1:Dust version
NEC / CEC:Class II Div 1 FG T6 Ta -40°C to +70°C
Class II Div 2 FG T6 Ta -40°C to +70°C
Class III Div 1&2
Zone 20 IIIB Ta -40°C to +70°C
