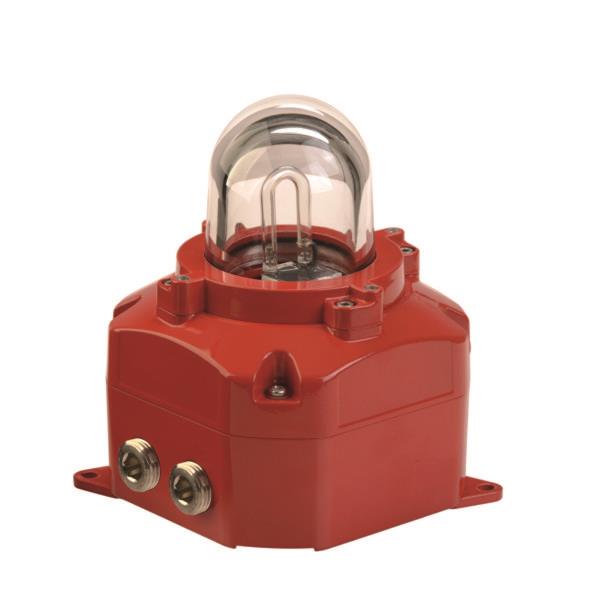

Ex-z2 Beacon D2xB1XH1 DC024 MN0H1R/C
5J IP66 Zone 2 & 22, Globally certified
Varenr:
D2xB1XH1DC024MN0H1RC
|
|
D2xB1XH1 Haz Loc UL1971 Xenon Strobe - Synchronized
The D2xB1XH1 features a high output UL1971 rated 18.18cd, 5 Joule Xenon strobe beacon. Low current consumption and in rush in a robust marine grade aluminum Type 4/4X, IP66 enclosure ensure the D2xB1XH1 is suitable for the harshest of haz loc environments. Multiple D2xB1XH1 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules in the circuit.
One device, globally certified: NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2; ATEX, IECEx Zone 2 & 22. UL1638/UL1971 tested - suitable for public mode fire alarm, ADA compliant, hearing impaired applications.
Features:
• 18.18 eff. candela - UL1971 Public mode fire
• Xenon tube mechanically secured against vibration & shock
• User replaceable Xenon tube assembly
• Duplicate cable terminations (in & out for daisy-chain installations)
• Large termination area
• Marine grade aluminum enclosure
• Ingress protection Type 4/4X/3R/13, IP66
• High impact resistant Borosilicate glass lens
• Stainless steel lens guard as standard
• Stainless steel external and internal fixings
• Duplicate, pluggable cable terminations
• Conduit mounting via integral 3/4" NPT entry
• Surface mounting via user installed lugs
• Dual 1/2"NPT and dual M20 entries
• Supplied with haz loc rated stopping plugs
• Compact footprint
Approvals:
UL/cUL File ref: E245313
IECEx certficate: IECEx ULD 14.0004X
ATEX certificate: DEMKO 14 ATEX 4786493904X
Coding:
| NEC / CEC: | Class I Div 2 ABCD T2D Ta -40°C to +50°C |
| Class I Div 2 ABCD T3 Ta -40°C to +45°C |
| Class II Div 2 FG T6 Ta -40°C to +50°C |
| Class III Div 1&2 Ta -40°C to +50°C |
| | |
| NEC: | Class I Zone 2 AEx nA IIC T2 Gc (Ta -40°C to +50°C) |
| Zone 22 AEx tc IIIC 80°C Dc (Ta -40°C to +50°C) |
| | |
| CEC: | Class I Zone 2 Ex nA IIC T2 Gc X (Ta -40°C to +50°C) |
| Zone 22 Ex tc IIIC 80°C Dc (Ta -40°C to +50°C) |
| | |
| IECEx & ATEX: | II 3G Ex nA IIC T2 Gc (Ta -40°C to +50°C) |
| II 3D Ex tc IIIC 80°C Dc (Ta -40°C to +50°C) |
Specification:
| Energy: | 5 Joules (5Ws) |
| Source: | Xenon strobe |
| Modes: | 1Hz flash (60 fpm) |
| 1.3Hz flash (80 fpm) |
| 1.5Hz flash (90fpm) |
| Double flash |
| Effective cd: | 18.18 cd - UL1971 |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Effective cd: | 250 cd - calculated from energy (J) |
| Voltages: | 24vDC (20-28vDC) |
| Ingress protection: | IP rating per EN60529:IP66 |
| Type rating per UL50E/NEMA250:4/4X/3R/13 |
| Enclosure material: | Marine grade LM6 aluminum alloy |
| Colour: | Red (RAL3000) |
| Lens colour: | Clear |
| Lens material: | Borosilicate glass dome |

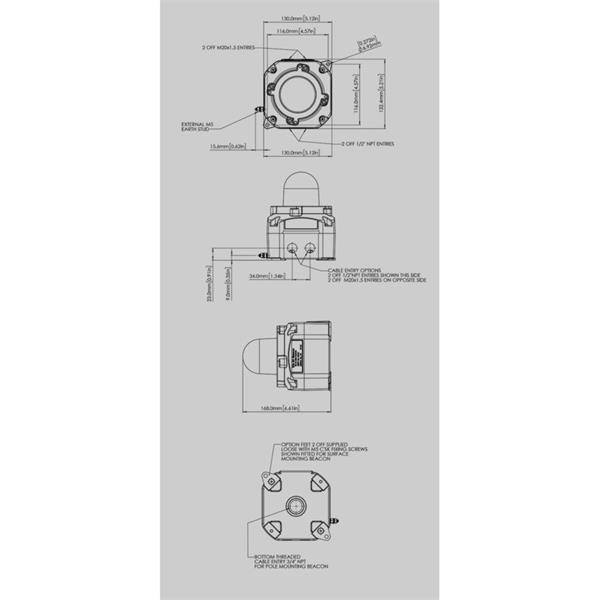

| Cable entries: | 2 x M20x1.5, 2 x 1/2"NPT, +1 x 3/4"NPT in back |
| Stopping plugs: | Nickel Plated Brass plugs included |
| Brass or stainless steel optional |
| Mounting: | Conduit mount via 3/4" NPT entry |
| Surface mount via supplied lug pack (user installed) |
| Ground/Earth stud: | M5 |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included |
| EOL can be factory fitted |
| Operating temp: | -40 to +50°C [-40° to +122°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 95% |
| Weight: | 1.5 kg / 3.31 Ibs |
| Nominal Voltage: | Voltage Range: | Nominal operating current: |
| | | |
| 24vDC | 20-28vDC | 276mA |
| | | |
In-rush: 800mA within 5.42ms
Part Codes: D2xB1XH1 DC024 [e] [m] [s] [v] [x] / [y]
| Part Code: | Ident.: | Description: |
| | | |
| Product type: | D2xB1XH1 | 18.18cd 5 Joule |
| | | Xenon Strobe Beacon |
| | | |
| Voltage: | DC024 | 24vDC (20-28vDC) |
| | | |
| Cable entries: [e] | M | 2 x M20x1.5, 2 x 1/2"NPT, |
| | 1 x 3/4"NPT in back |
| | | |
| Adaptor/Stopping | | |
| plug material: [m] | B | Brass |
| N | Nickel Plated Brass |
| | S | Stainless Steel |
| | | |
| Lens Guard: [s] | 0 | No lens Guard |
| | | |
| Product version: [v] | H1 | UL, cUL, IECEx & ATEX |
| | | |
| Enclosure colour: [x] | R | Red RAL3000 |
| | | |
| Lens colour: /[y] | C | Clear |
| Example part code: | D2xB1XH1 DC024 [e] [m] [s] [v] [x] / [y] |
| D2xB1XH1 DC024 M N 0 H1 R / C |
| | |
| Explanation of the above: | |
| Product type: | "D2xB1XH1" = Xenon Beacon |
| Voltage: | "DC024" = 24vDC |
| Cable Entry: [e] | "M" = 2 x M20x1.5, 2 x 1/2"NPT, |
| 1 x 3/4"NPT in back |
| Stopping plug: [m] | "N" = Nickel Plated Brass |
| Lens Guard: [s] | "0" = No lens Guard |
| Version: [v] | "H1" = UL, cUL, IECEx & ATEX |
| Enclosure colour: [x] | "R" = Red RAL3000 |
| Lens colour: /[y] | "C" = Clear |
