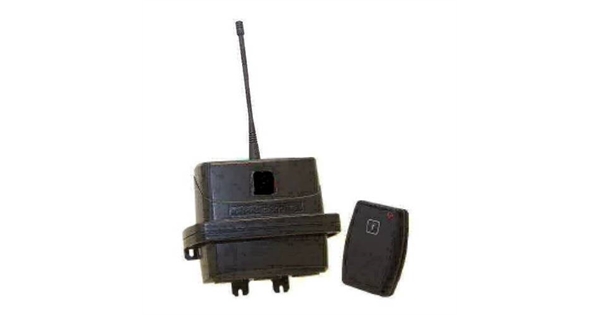

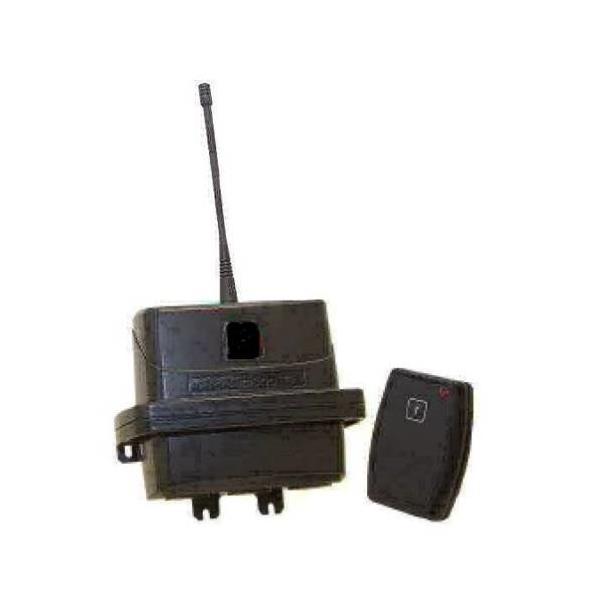

Radio Activation Receiver + Transmitter
IP68 / IP40 Range up to 1,000 metres
|
|
RC1CFM1KM - Radio Activation Receiver and Transmitter
Housed in a rugged IP68 weatherproof enclosure, the receiver has the capacity to learn up to 15 transmitter button pairings. These are memorised even if the power is removed.
Each individual switch on each of the transmitters may be paired with any or all of the receiver relay outputs. The decoder is supplied in an IP68 rated enclosure with Cable Gland and wall mounting lugs.
Features:
• 1 Channel System
• 12 / 24vDC or 230vAC Supply
• Range up to 1,000 metres
• Reliable FM Technology
• High Security RF Protocol
• ‘Easy Learn’ Tx Encoder Feature
• Easy Installation Via Screw Terminals.
• 4 Relays 6A @ 230vAC
• Momentary / Latch / Timed Outputs
• Timed Output Adjustable 0 to 5 mins
• Any Switch ‘Maps’ to Any Relay Output
• Receiver Rated IP68
• Versatile operation modes: Many to Many, One to Many, Many to One.
Technical Specifications:
| Transmitters : | |
| | |
| Enclosure Rating: | Standard: IP40 (TBC) |
| With IP Kit: IP65 (TBC) |
| Battery Type: | CR2032 (supplied) |
| Dimensions: | 90 x 54 x 27 mm |
| (Note: supplied with external Antenna) |
| Electrical Characteristics : | Min | Typical | Max | Unit |
| Supply Voltage | | 3V | | V |
| Supply Current | | | | mA |
| Frequency: Narrowband | 434.450 | 434.525 | 434.600 | MHz |
| RF Output Power (ERP) @ 433 MHz | - | 3 | 10 | mW |
| Receiver Decoder : | |
| | |
| Enclosure Rating: | IP68 |
| Dimensions: | 169 x 132 x 85mm |
| (not including antenna) |
| Storage Temperature: | -10°C to +70°C |
| Operating Temperature: | 0°C to +55°C |
| Electrical Characteristics : | Min | Typical | Max | Unit |
| Supply Voltage for +12 v | 10.0 | 12.0 | 16.0 | vDC |
| Supply Voltage for +24 v | 22.0 | 24.0 | 28.0 | vDC |
| Supply Voltage for 230vAC | | 230 | | vAC |
| Relay Rating* (230Vac) RLY1-4 | | 5 | 12 | A |
| Supply Current : | | | | |
| Quiescent: | | 16 | | mA |
| All relays operating:* | | 140 | | mA |
| Time delay from Tx on Switch | | | | |
| to Rx Relay operation | | 100 | | ms |
| Time delay from Tx sw relax | | | | |
| to Rx Relay release | | 300 | | ms |
*The relay contacts in this unit are for functional use only and must not be used for isolation purposes
