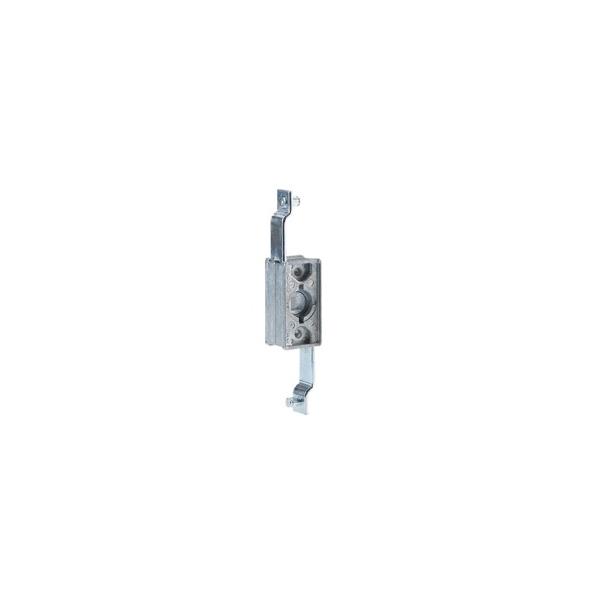

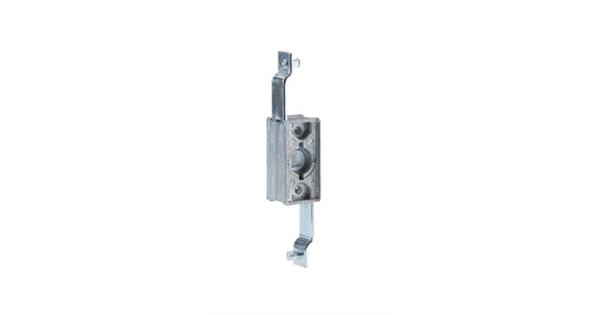

Bar lock short
Sparepart for closures
|
|
Bar lock short
Article: 8101-208-9001
Key features:
Redirection of rotary movement of a closure in a lengthwise movement
Product Description:
For the realisation of a 2- or 3-point-locking.
For the connection of flat bars
Mountable with or without
Also for the installation within a sealing area of enclosures
By turning around applicable on the right or left.
Technical Data:
Material: zinc die-casting
Surface finish: untreated
Material and Surface: rods: steel galvanized; pinion: zinc diecasting; grounding spring: stainless steel 1.4310
Length of stroke: 24 mm
Installation opening: 25+ 0.1x50+0.1 mm in the center of door
Notice:
Actuation of bar lock mostly by „turning lever closure“ squared installation opening for "flat bars“ or by „key plate“.
The assembly and the function of the key plate is similar to the assembly of a turning lock and has to be demanded separately.
With the „adapter for latches“ standard latches can be added.
At häwa: always in case of frame connector closing.
Scope of delivery:
1 lock with grounding spring and one fixing screw for actuation
Accesories:
Suitable for:
Closure Systems (open/close) - Closures:
