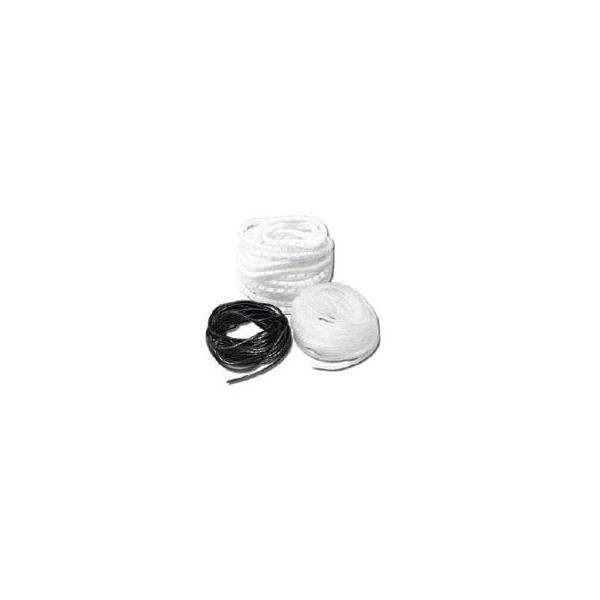

WIRING POLYETHYLENE SPIRALS



Applications
• Bundling and protection of electrical cables and wires (general purpose).
• Suitable for the automotive applications, control panels, cabinets and electrical installations.



Characteristics
• The polyethylene spiral is obtained by a tube of extruded and cut polyethylene.
• The polyethylene spiral is extremely flexible.
• The spiral is available in a wide range of diameters and colours.



Benefits
• Easy installation.
• Halogen-free.
• Due to the spiral structure, cables can branch out at any point and in any direction.



Characteristics:
Type of material: Polyethylene (low density).
Colours available: natural, black, white (only self-extinguishing).
Colours on request: yellow, orange, red, pink, purple, violet, green, beige, brown, grey.

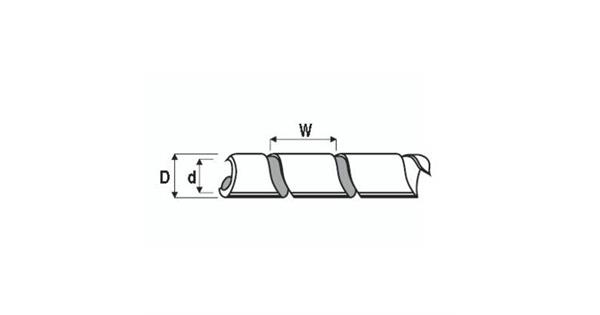

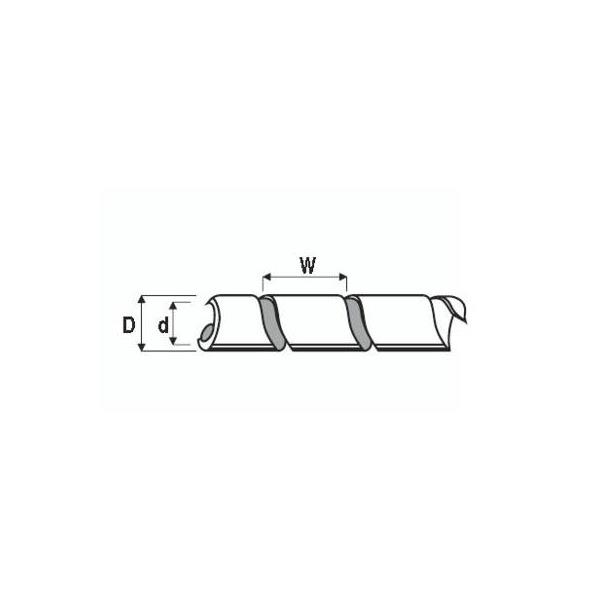

Available diameters: from 2,3 to 22,2 mm.
Humidity absorption: null.
Working temperature: -50°C ÷ 90°C
Mounting temperature: -20°C ÷ 60°C
Max admissible point: 100°C for short time
Melting point: 113°C
Density: 0,922 g/cm3
Flammability rating: UL 94, class V2 and V0 (self-extinguishing white).
Resistance to external agents: Good resistance to bases, weak acids, organic solvents.
Limited resistance to chloride solvents.
Recyclable, not biodegradable, halogen-free.
