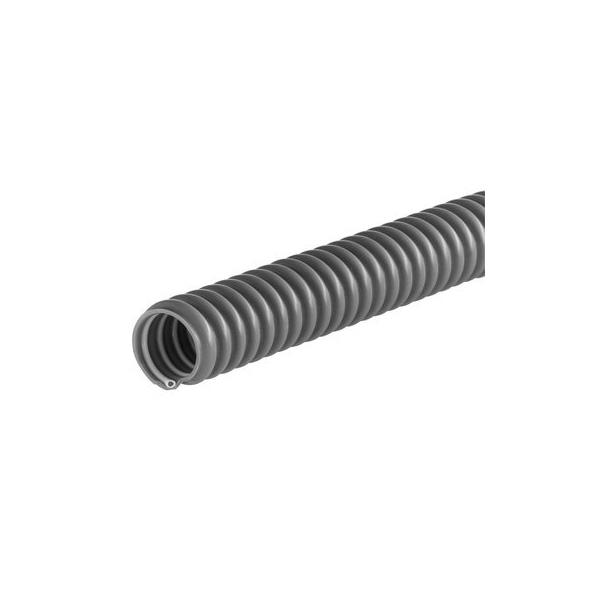

Wellflex Conduit WF29
iØ 28,5 mm (in coils of 25 meters)
|
|
WELLFLEX CONDUIT WF29
Suitable conduit holder: WFH29
Inner Ø: 28,5 mm
Outer Ø: 33,8 mm
Smallest bending radius: 80
Weight (kg/100 m): 28,0 kg
Coil size: 25 meters
TECHNICAL DATA:
Oil resistance: good
Temperature range: -40 °C to +55 °C
Melting point: +90 °C – 100 °C
Colour: Grey
Material: Ethylene-vinyl acetate copolymer (EVA)
Yield stress: DIN 53455; 10–20 N/mm
Elongation at break: DIN 53455; 700 – 800 %
E-Module: DIN 53457; 75 –105 N/mm
Impact resistance: DIN 53453; o.Br. mJ/mm
Notch impact strength DIN 53453; o-Br. mJ/mm
Application:
• Cabinet construction
• Suction line for gaseous media in the vacuum, ventilation and refrigeration industries.
• In swimming pool construction as well as in medical/chemical plant construction
Properties:
• Circular, concentric and corrugated along the longitudinal axis
• High flexibility
• High restoring ability
• Resistant to: weak and organic acids, bases, inorganic salts, amines, alcohols and greases
• Conditionally resistant to: fuels and mineral oils
• Unstable against: strong acids, halogenated and oxidising connections, ketones, esters
• Smallest bending radius (neutral fibers) for a flattening of the outside 5 %
